Flush-mounted connection box 200 65 | | | 24

Flush-mounted connection box 200

Item no. 2003130 | EAN 4012195023951

Item no. / Types	2003130 / UV 200 K

Height	65 mm

No. of entries	24

Product description

Product description

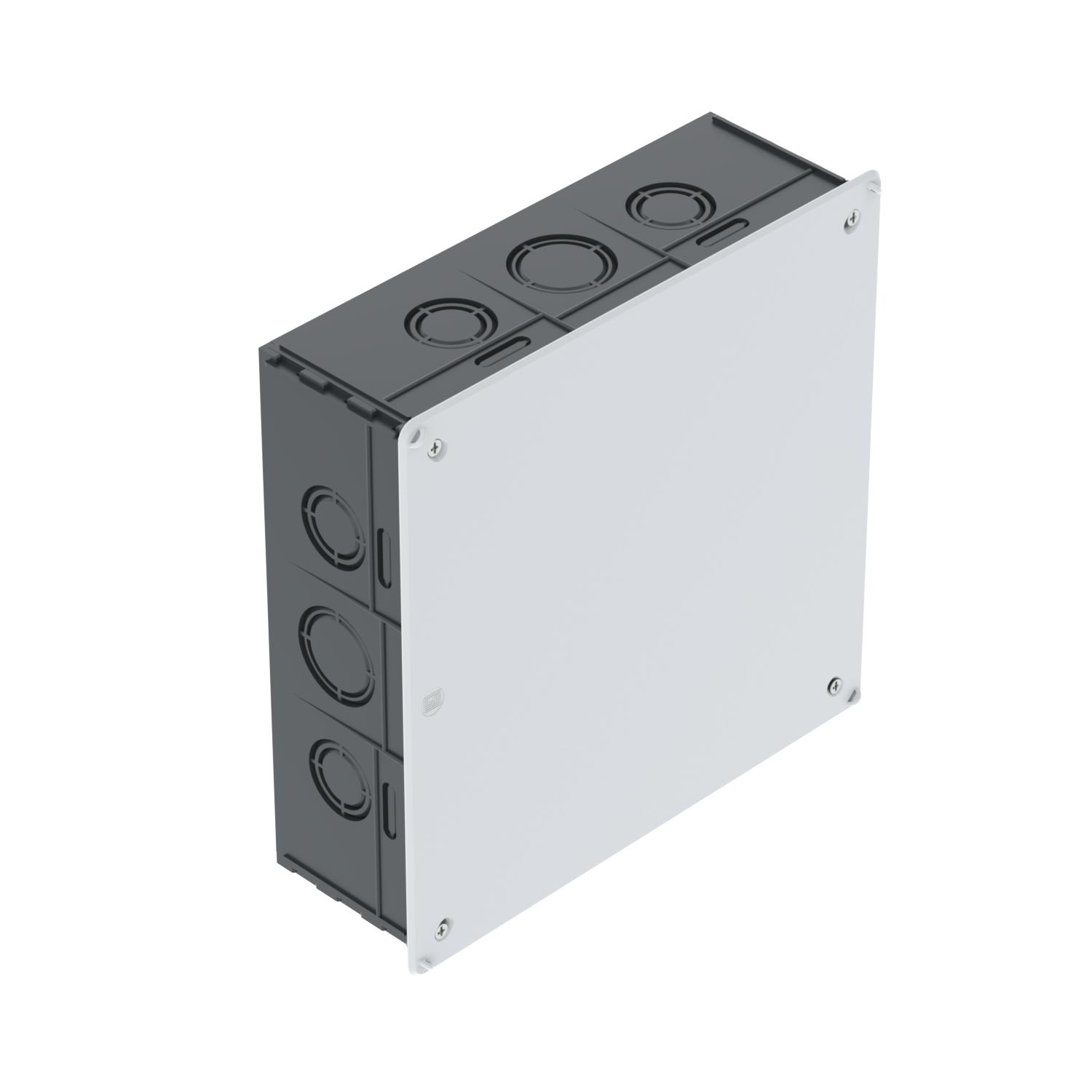

Flush-mounted connection box for clamping terminals, for use in masonry with an installation depth of at least 65 mm. With cover and cover screws (15 mm). Flat cover edge, roughened surface.

• 4 side combination pipe entries of Ø 34.6 and 28.5 mm

• 8 side combination pipe entries of Ø 28.5 and 21.5 mm

• 8 side entries for flat cables/ribbon cables

• 2 combination pipe entries of Ø 34.6 and 28.5 mm at the base

• 2 entries for flat cables/ribbon cables at the base

Technical data

Technical data

Airtight	no
Colour	Black
Cover	Not transparent
Cover fastening	Screwed
Dimension	200x200x65
Dimension A	260 mm
Dimension B	210 mm
Dimension H	65 mm
Entries	24
Entry from rear	no
Equipment	Without
Flame-resistant	acc. to VDE 0471/DIN 695 Part 2-1, test temperature 650°C
Floor height, min.	67 mm
Halogen-free	no
Height	65 mm
Impact-resistant	yes

Length	200 mm
Maintain electrical functions	Without
Material	Polystyrene
No. of entries	24
Nominal cross-section, min.	16 mm²
Protection rating	IP20
Rated voltage	400 V
Sealable	no
Shape	Square
Support	Without
Type of housing penetration	Pre-marking
Type of insertion…	NYM cables, data cables and corrugated pipes
Width	200 mm
With bolts	no
With nail strap	no
With screening	no
