Flush-mounted connection box 100 45 | | | 32

Flush-mounted connection box 100

Item no. 2003118 | EAN 4012195023715

Item no. / Types	2003118 / UV 100 K

Height	45 mm

No. of entries	32

Product description

Product description

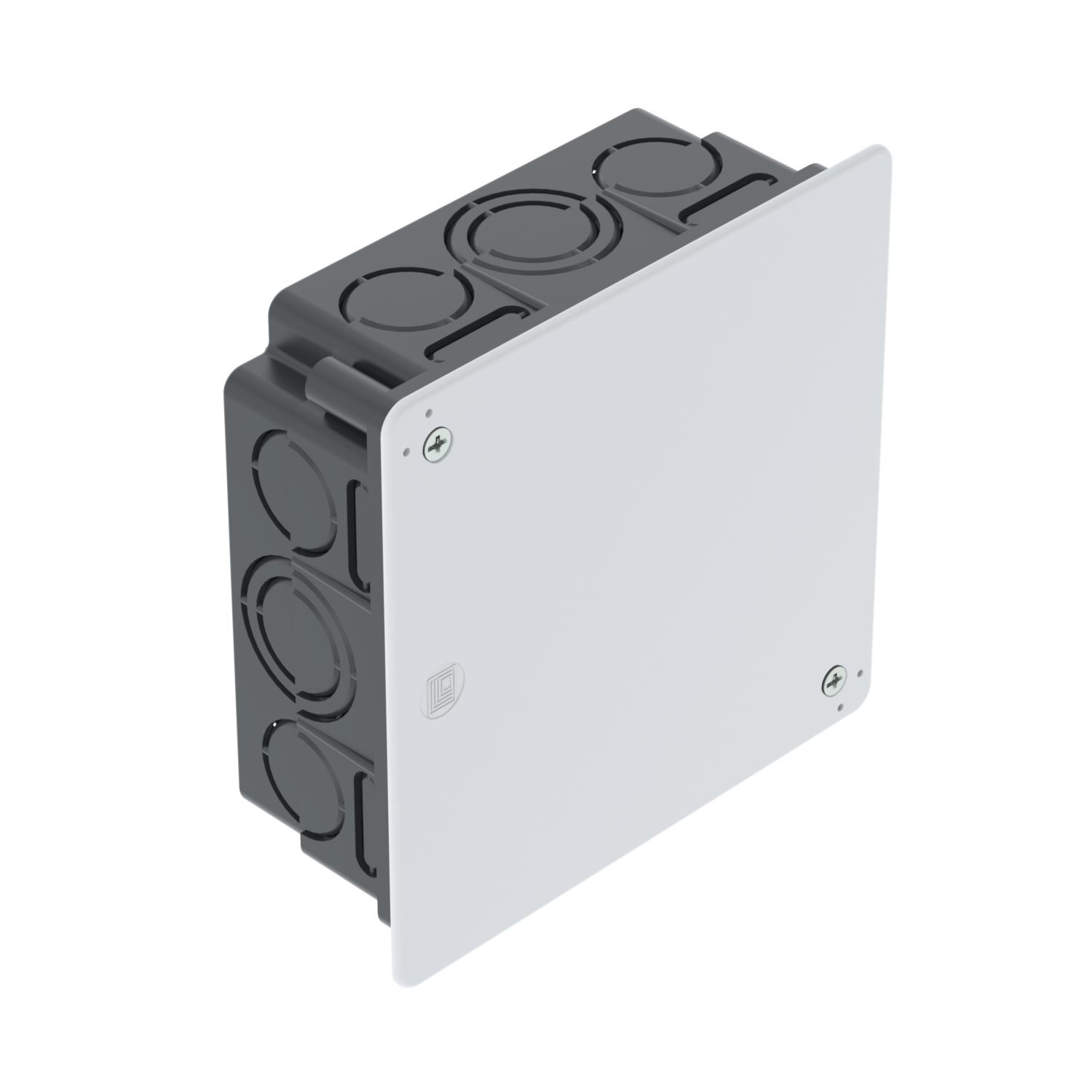

Flush-mounted connection box for clamping terminals, for use in masonry with an installation depth of at least 45 mm. With cover and cover screws (15 mm). Flat cover edge, roughened surface.

• 4 side combination pipe entries of Ø 28.5 and 21.5 mm
• 8 side entries of Ø 21.5 mm
• 8 side entries for flat cables/ribbon cables
• 4 combination pipe entries of Ø 28.5 and 21.5 mm at the base
• 8 entries for flat cables/ribbon cables at the base

Technical data

Technical data

Airtight	no
Colour	Black
Cover	Not transparent
Cover fastening	Screwed

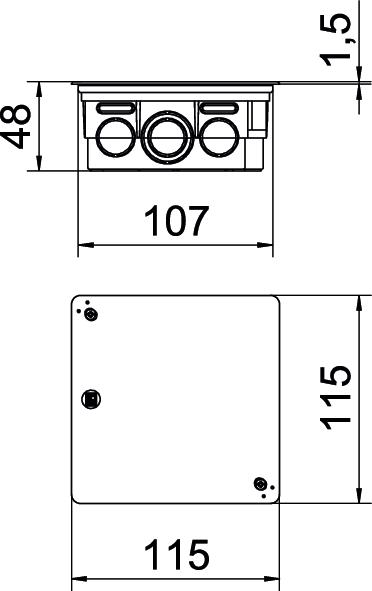

Dimension	100x100x45
Dimension A	130 mm
Dimension B	114 mm
Dimension H	45 mm
Dimension L	107 mm
Entries	32
Entry from rear	no
Equipment	Without
Flame-resistant	acc. to VDE 0471/DIN 695 Part 2-1, test temperature 650°C
Floor height, min.	47 mm
Halogen-free	no
Height	45 mm
Impact-resistant	yes

Length	100 mm
Maintain electrical functions	Without
Material	Polystyrene
No. of entries	32
Nominal cross-section, min.	6 mm²
Protection rating	IP20
Rated voltage	400 V
Sealable	no
Shape	Square
Support	Without
Type of housing penetration	Pre-marking
Type of insertion…	NYM cables, data cables and corrugated pipes
Width	100 mm
With bolts	no
With nail strap	no
With screening	no
