- Product description
-
Product descriptionPlate to fasten the ISS industrial pole to the floor. The scope of delivery comprises of four fastening screws to mount the floor plate onto the pole profile and two sealing plugs to make the compressed air channels airtight.
- Technical data
-
Technical data

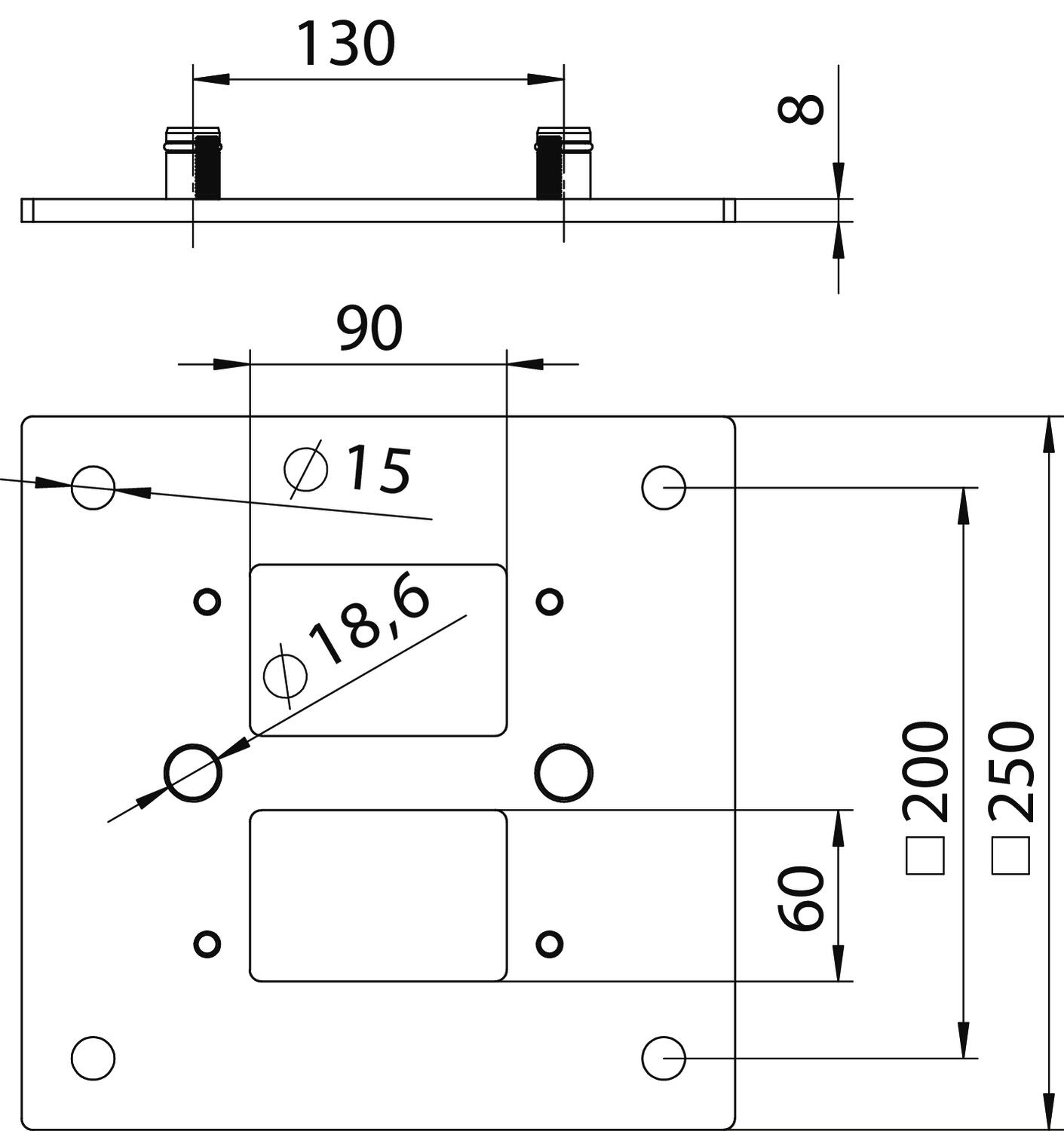

Colour White aluminium; RAL 9006 Dimension 250x250x8mm Halogen-free yes Height 8 mm Length 250 mm Material Steel Permitted temperature range, max. 60 °C Permitted temperature range, min. -25 °C Protection rating IP30 Protection rating IK code IK10 Surface Strip galvanized / plastic coated Width 250 mm xxxxx. no - All types
- Downloads
-
Data sheet ISS160160BP / 6290416 , 0.20MB , pdfCatalogue Installation systems , 28.45MB , pdfEU declaration of conformity ISS160160BP / 6290416 , 0.13MB , pdfUK Declaration of Conformity ISS160160BP / 6290416 , 0.14MB , pdfLabel approval VDE symbol approval, service pole systems , 0.22MB , pdfMounting instructions Mounting instructions, ISS-I , 4.01MB , pdfMounting instructions Mounting instructions, ISS160160 bracket for ISS-I , 4.01MB , pdf
