Flat mounting plate DD 120 | 235

morepic-1

morepic-2

Flat mounting plate DD

Item no. 7085108 | EAN 4012195163268

Item no. / Types	7085108 / MP FL DD

Width	120 mm

Height	235 mm

Product description

Product description

Flat mounting plate, for fastening on the side rail of the cable tray.

Technical data

Technical data

Dimension	235x120
Fastening type	Screw fastening
Height	235 mm
Material	Steel
Plate thickness	1 mm

Rustproof steel, pickled	no
Surface	Strip galvanised zinc/aluminium, Double Dip
Version for	Vertical
Width	120 mm
Width	4,72 in

All types

All types

Types	Width	Height	Item no.	Quantity	SSU
MP FL DD	120 mm	235 mm	7085108	piece	1 piece

Downloads

Data sheet MP FL DD / 7085108 , 0.21MB , pdf

Guide KTS Kabeltragsysteme , 1.61MB , pdf

Catalogue Kabeltragsysteme , 45.23MB , pdf

Declaration of conformity MP FL DD / 7085108 , 0.10MB , pdf

REACH Declaration of conformity MP FL DD / 7085108 , 0.12MB , pdf

Download

RoHS Declaration of conformity MP FL DD / 7085108 , 0.12MB , pdf

Download

Mounting instructions General information on the mounting , 2.61MB , pdf

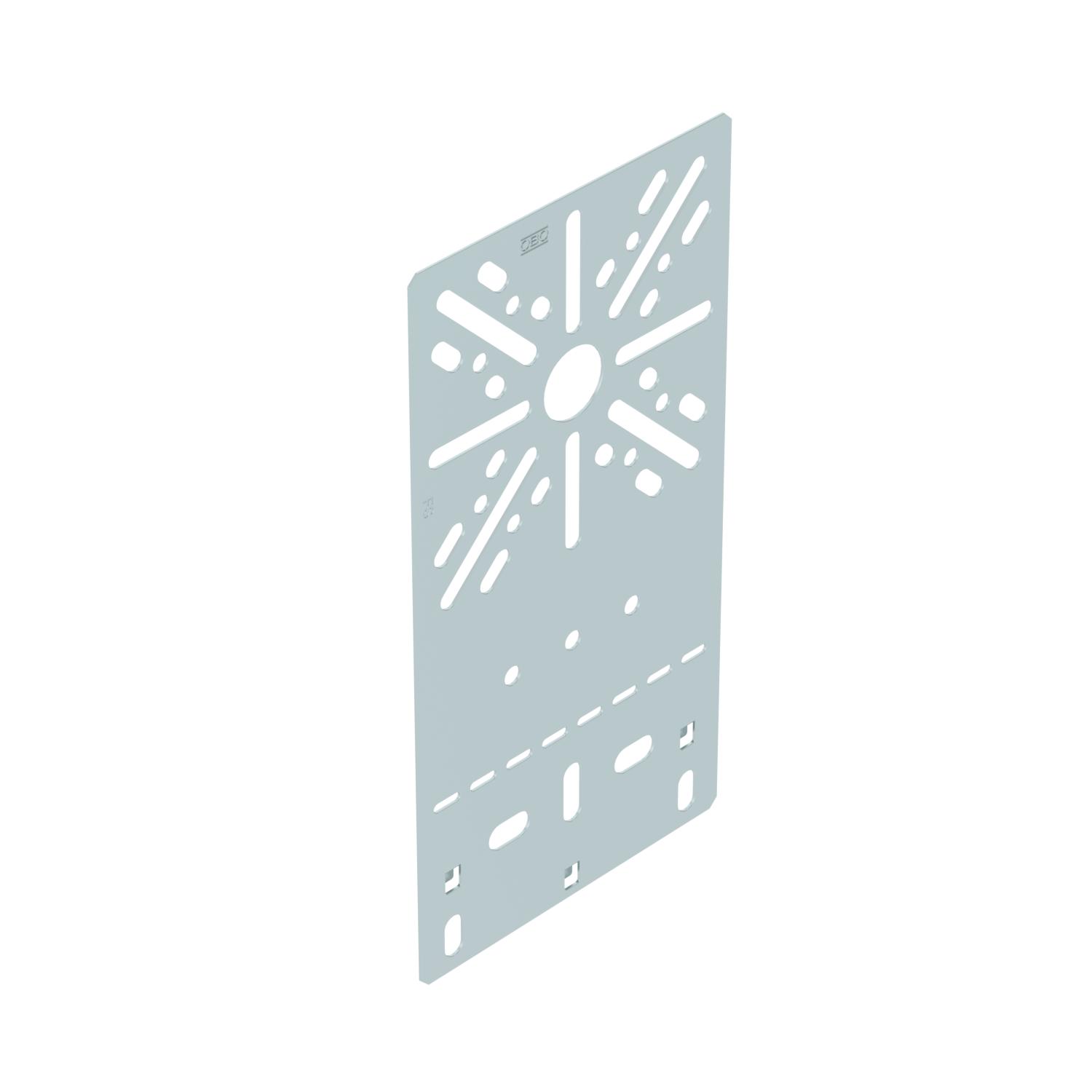

Product graphic MP FL DD / 7085108, 37.94 kB, jpg

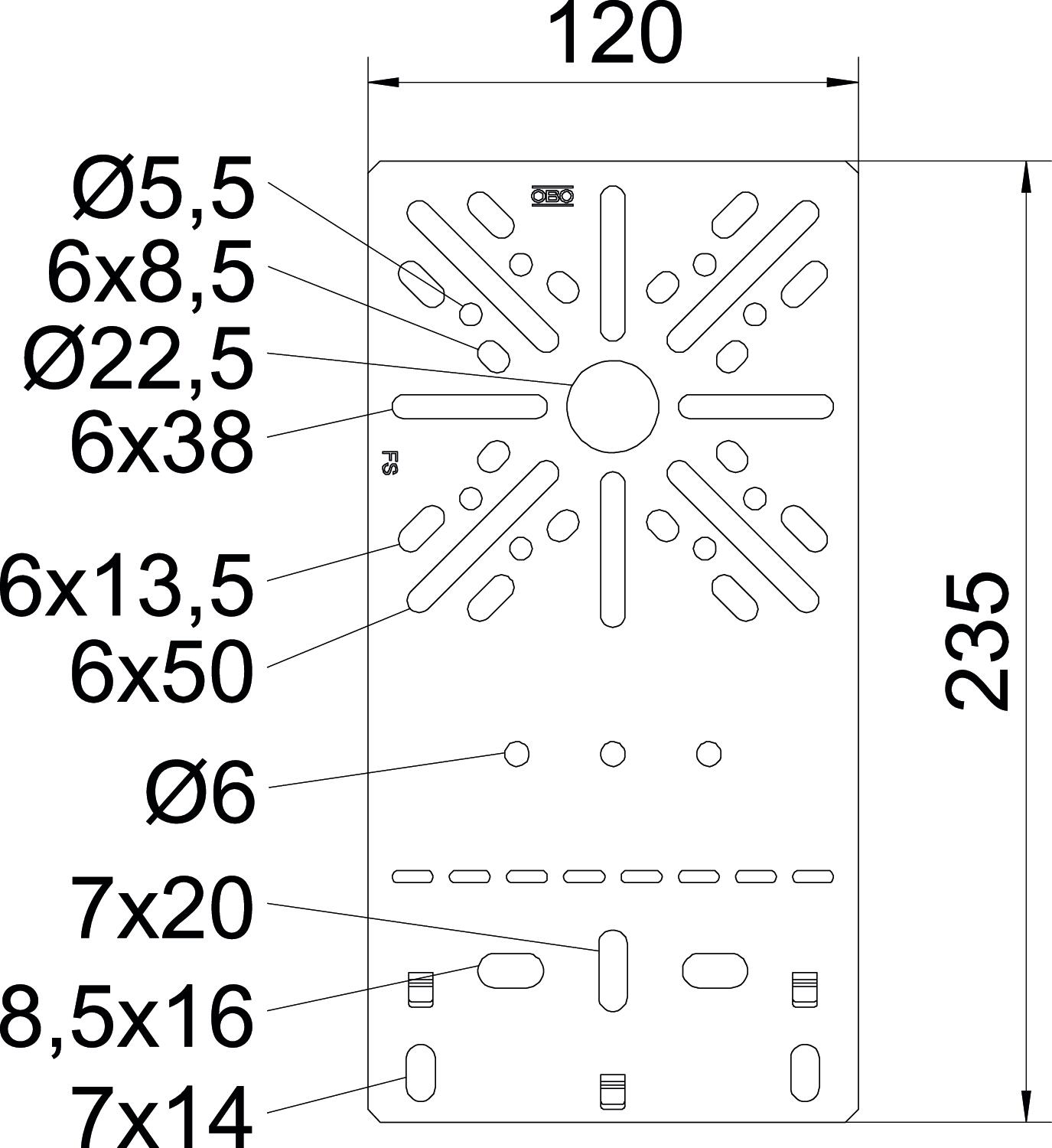

Scale drawing MP FL DD / 7085108, 144.25 kB, jpg

MP FL DD / 7085108
