Flat-head screw with internal Torx, steel 20 | M6

morepic-1

morepic-2

Flat-head screw with internal Torx, steel

Item no. 3164952 | EAN 4012196101023

Item no. / Types

Length

Thread	M6

Product description

Product description

Flat head screw with TX 30, according to ISO 7380-1, suitable for fastening cable routes on brackets as well as for the mounting of barrier strips. The rounded head shape provides optimum cable protection. The Torx drive offers optimum force transmission in the screw movement.

Technical data

Technical data

Dimension	M6x20mm
Dimension	M6x20
Length	20 mm
Material	Steel

Screw system	Torx
Surface	Electrogalvanized
Thread	M6
Thread metric	6

All types

All types

Types	Length	Thread	Item no.	Quantity	SSU
7380T 6x20 G	20 mm	M6	3164952	piece	100 piece
7380T 6x35 G	35 mm	M6	3164956	piece	100 piece

Downloads

Data sheet 7380T 6x20 G / 3164952 , 0.21MB , pdf

Catalogue Fastening materials , 19.78MB , pdf

REACH Declaration of conformity 7380T 6x20 G / 3164952 , 0.12MB , pdf

Download

RoHS Declaration of conformity 7380T 6x20 G / 3164952 , 0.12MB , pdf

Download

Product graphic 7380T 6x20 G / 3164952, 85.48 kB, jpg

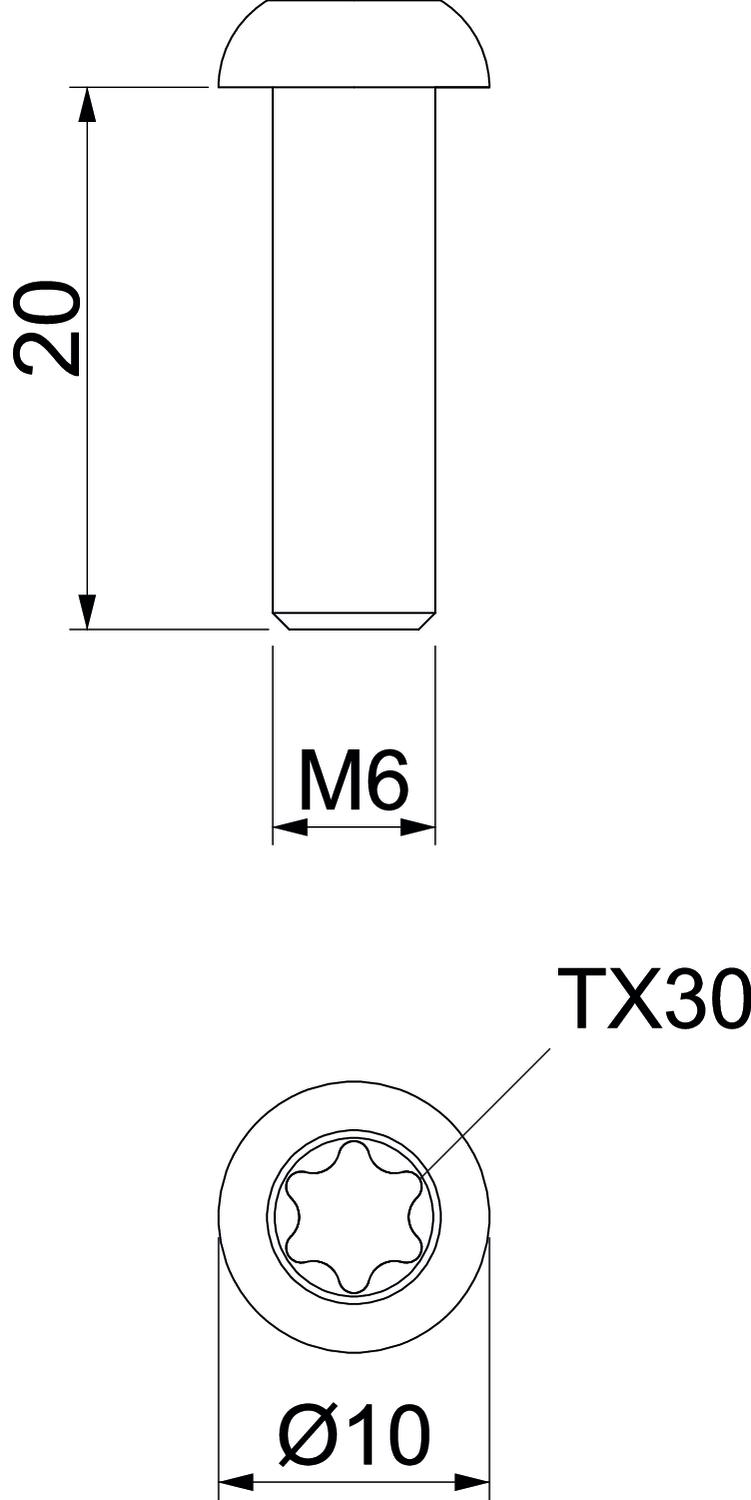

Scale drawing 7380T 6x20 G / 3164952, 42.00 kB, jpg

7380T 6x20 G / 3164952
