Flat-head screw with internal Torx, stainless steel 35 | M6

morepic-1

morepic-2

Flat-head screw with internal Torx, stainless steel

Item no. 3164976 | EAN 4012196101078

Item no. / Types

Length

Thread	M6

Product description

Product description

Flat head screw with TX 30, according to ISO 7380-1, suitable for fastening cable routes on brackets as well as for the mounting of barrier strips. The rounded head shape provides optimum cable protection. The Torx drive offers optimum force transmission in the screw movement.

Technical data

Technical data

Dimension	M6x35mm
Dimension	M6x35
Length	35 mm
Material	Stainless steel

Screw system	Torx
Surface	Bright, treated
Thread	M6
Thread metric	6

All types

All types

Types	Length	Thread	Item no.	Quantity	SSU
7380T M6x20 A2	20 mm	M6	3164972	piece	100 piece
7380T M6x35 A2	35 mm	M6	3164976	piece	100 piece

Downloads

Data sheet 7380T M6x35 A2 / 3164976 , 0.18MB , pdf

Catalogue Fastening materials , 19.78MB , pdf

Product graphic 7380T M6x35 A2 / 3164976, 89.99 kB, jpg

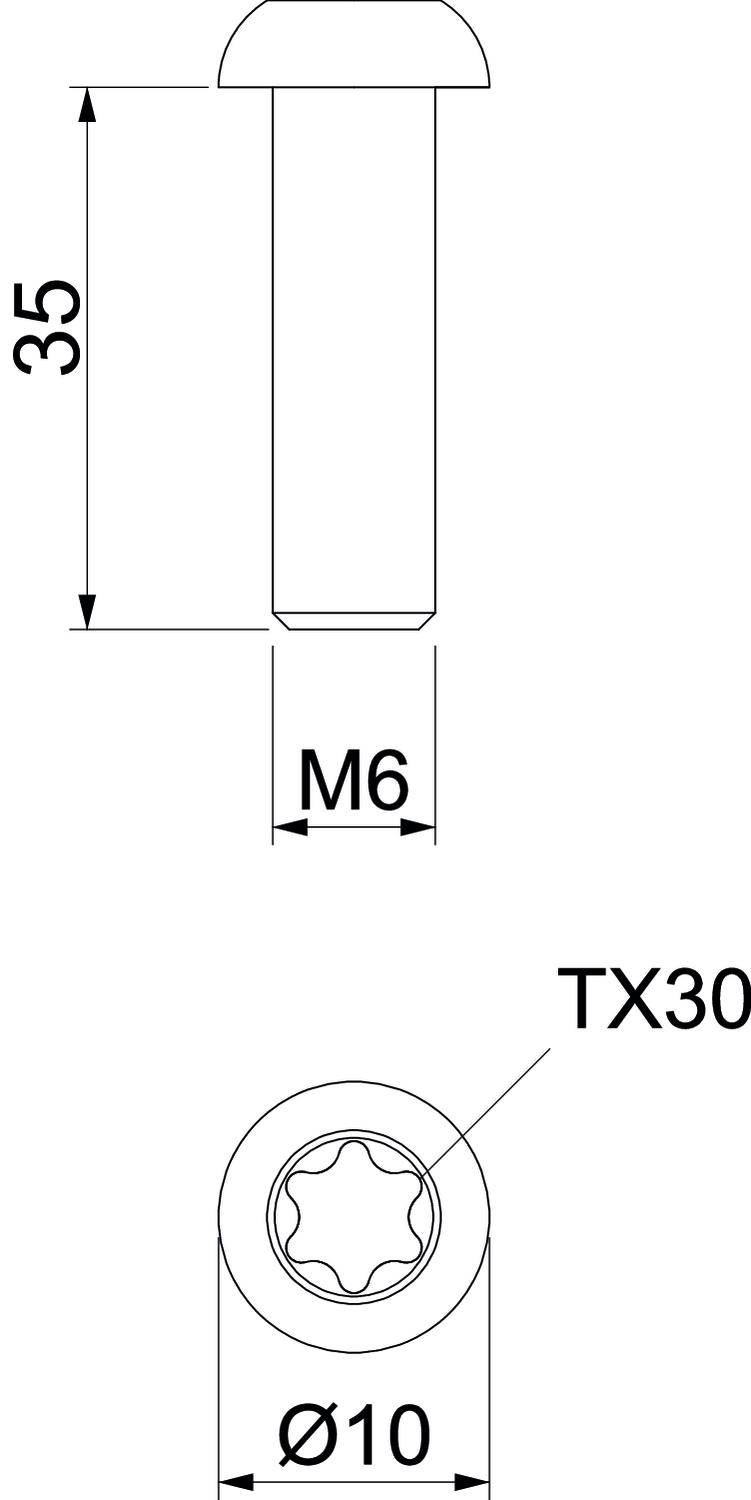

Scale drawing 7380T M6x35 A2 / 3164976, 42.01 kB, jpg

7380T M6x35 A2 / 3164976
