Flat conductor terminal to FL 30 for 1801 VDE 30 | FL 30 x 5
morepic-1 morepic-2 video-1

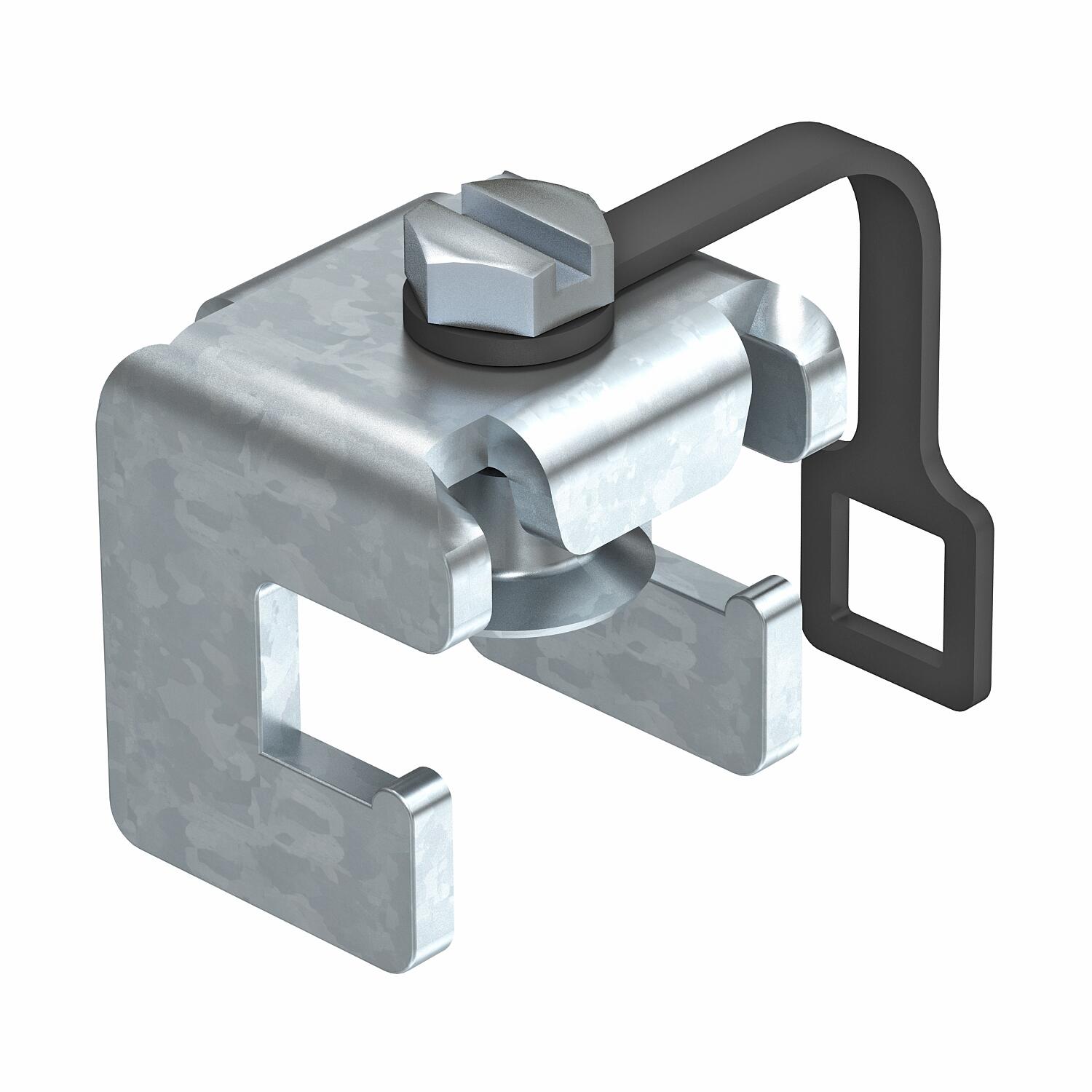

Flat conductor terminal to FL 30 for 1801 VDE

Item no. 5015731 | EAN 4012195378792

5015731 / 1801 RK30
30 mm
FL 30 x 5
Product description

Product description

• For flat conductors to FL 30 and thickness to 5 mm
• Captive design with plastic safety strap
• 3 division units
• Lightning current carrying capacity 100 kA (10/350)
• Electrogalvanised steel
  • Lightning current-tested
Technical data

Technical data

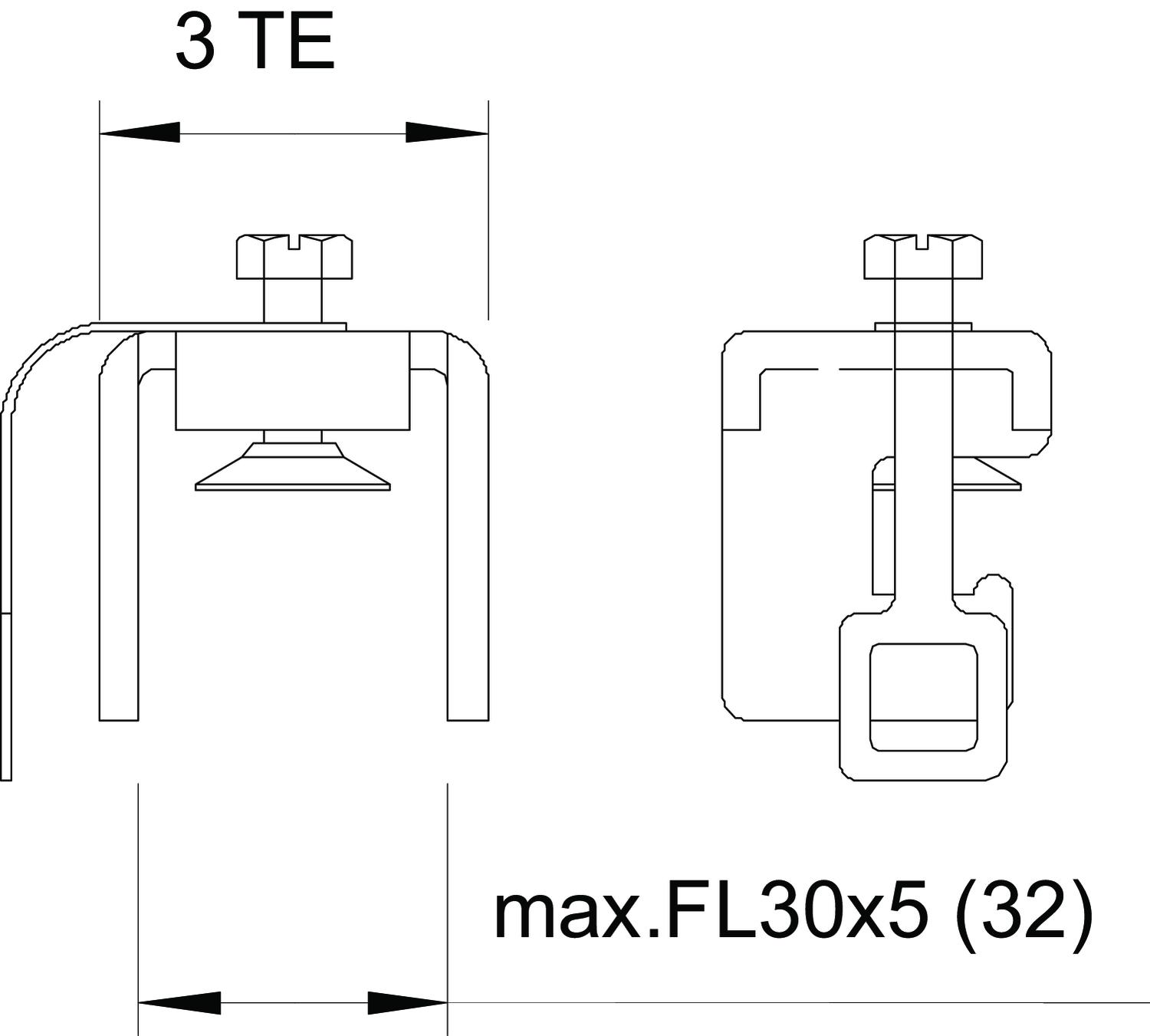

Connection options FL 30 x 5
Dimension 30mm
Dividing unit TE (10 mm) 4
Material Steel
Suitable for busbar Other
Suitable for ribbon conductor connection yes
Suitable for round cable connection no
Suitable for sector conductor connection no
Surface Electrogalvanized

Dimensions

Width 30 mm
All types

All types

Types Width Connection options Item no. Quantity SSU
1801 RK30 30 mm FL 30 x 5 5015731
1 piece
