Flat conductor terminal from FL 30 for 1801 VDE 30 | FL 40 x 5
morepic-1 morepic-2 video-1

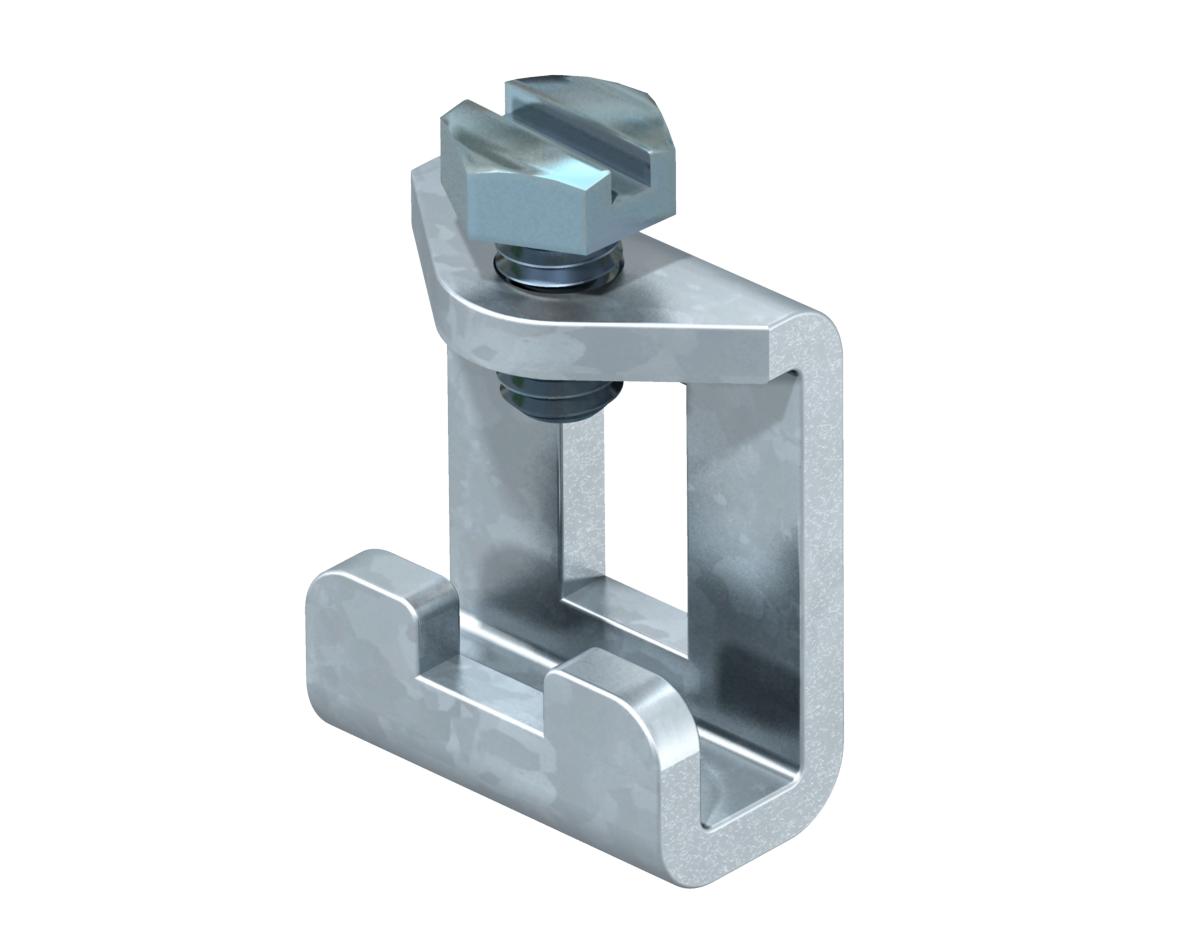

Flat conductor terminal from FL 30 for 1801 VDE

Item no. 5015774 | EAN 4012195455837

5015774 / 1801 RK40
30 mm
FL 40 x 5
Product description

Product description

• For flat conductors from FL 30
• 2 terminals always required for each flat conductor connection
• Lightning current carrying capacity 100 kA (10/350)
• Electrogalvanised steel
  • Lightning current-tested
Technical data

Technical data

Connection options FL 40 x 5
Dimension 40mm
Dividing unit TE (10 mm) 5
Material Steel
Suitable for busbar Other
Suitable for ribbon conductor connection yes
Suitable for round cable connection no
Suitable for sector conductor connection no
Surface Electrogalvanized

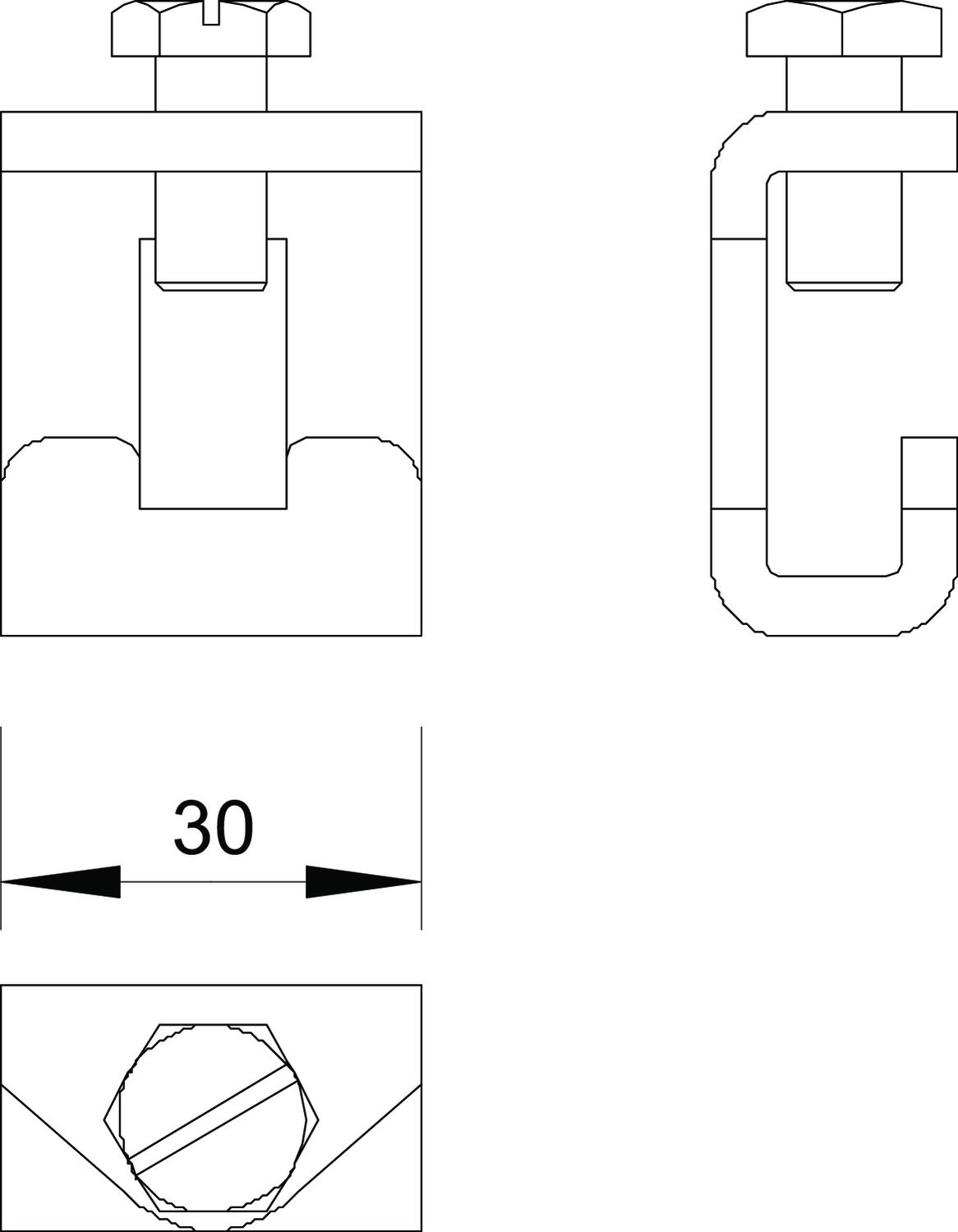

Dimensions

Width 30 mm
All types

All types

Types Width Connection options Item no. Quantity SSU
1801 RK40 30 mm FL 40 x 5 5015774
1 piece
Downloads

Download

Download
Download

Declaration of conformity 1801 RK40 / 5015774 , 0.10MB , pdf
Download
REACH Declaration of conformity 1801 RK40 / 5015774 , 0.12MB , pdf
Download
RoHS Declaration of conformity 1801 RK40 / 5015774 , 0.12MB , pdf
Download

1801 RK40 / 5015774
