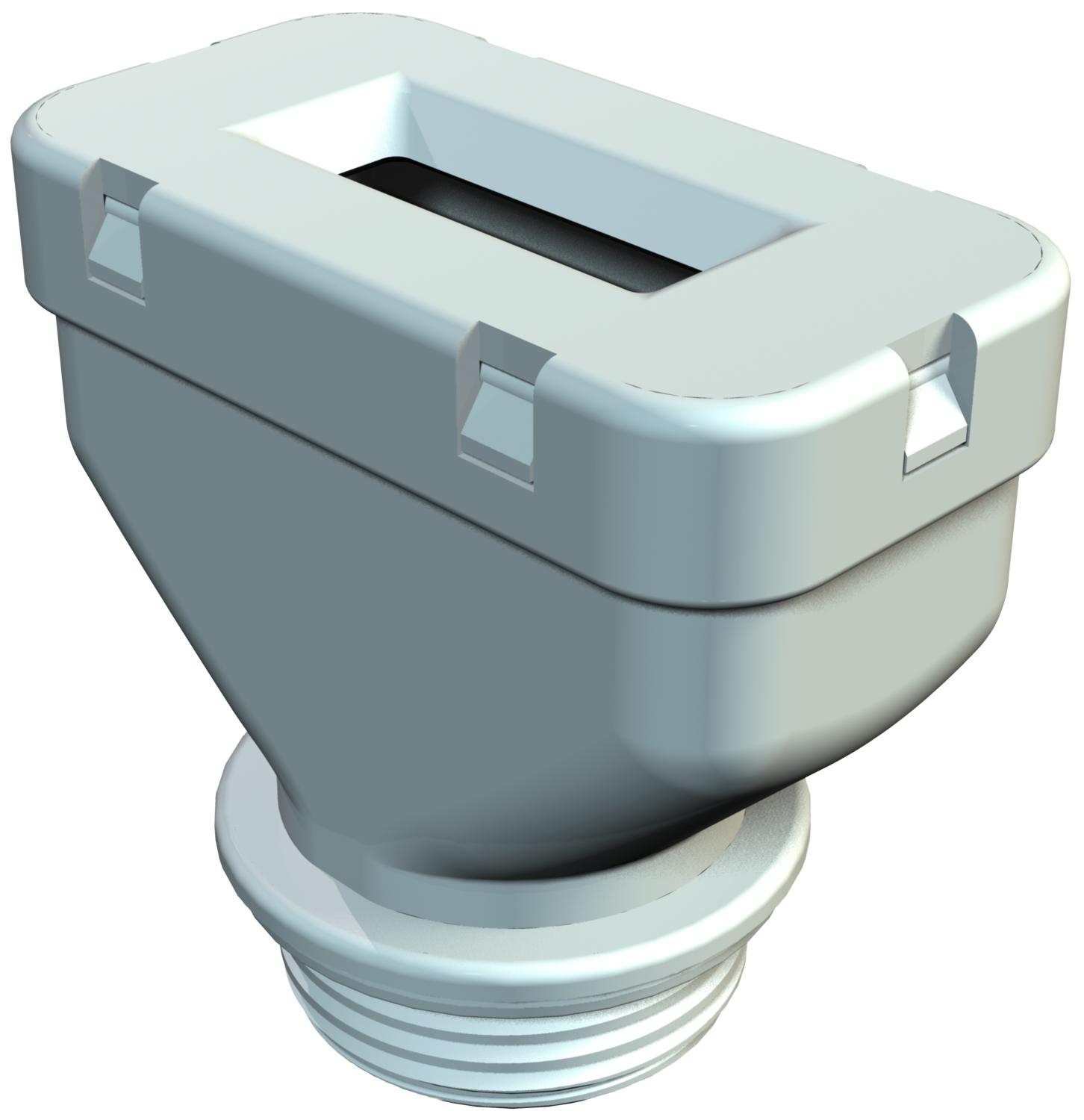

Flat cable threaded connection, PG thread rectangular version, stone grey
Item no. 2012774 | EAN 4012195156857
- Product description
-
Product description
Flat-cable entry, choke-nipple design with PG connecting thread to DIN 40430, protection rating IP31, with pre-mounted support sealing ring 107/F.
-
- Technical data
-
Technical data

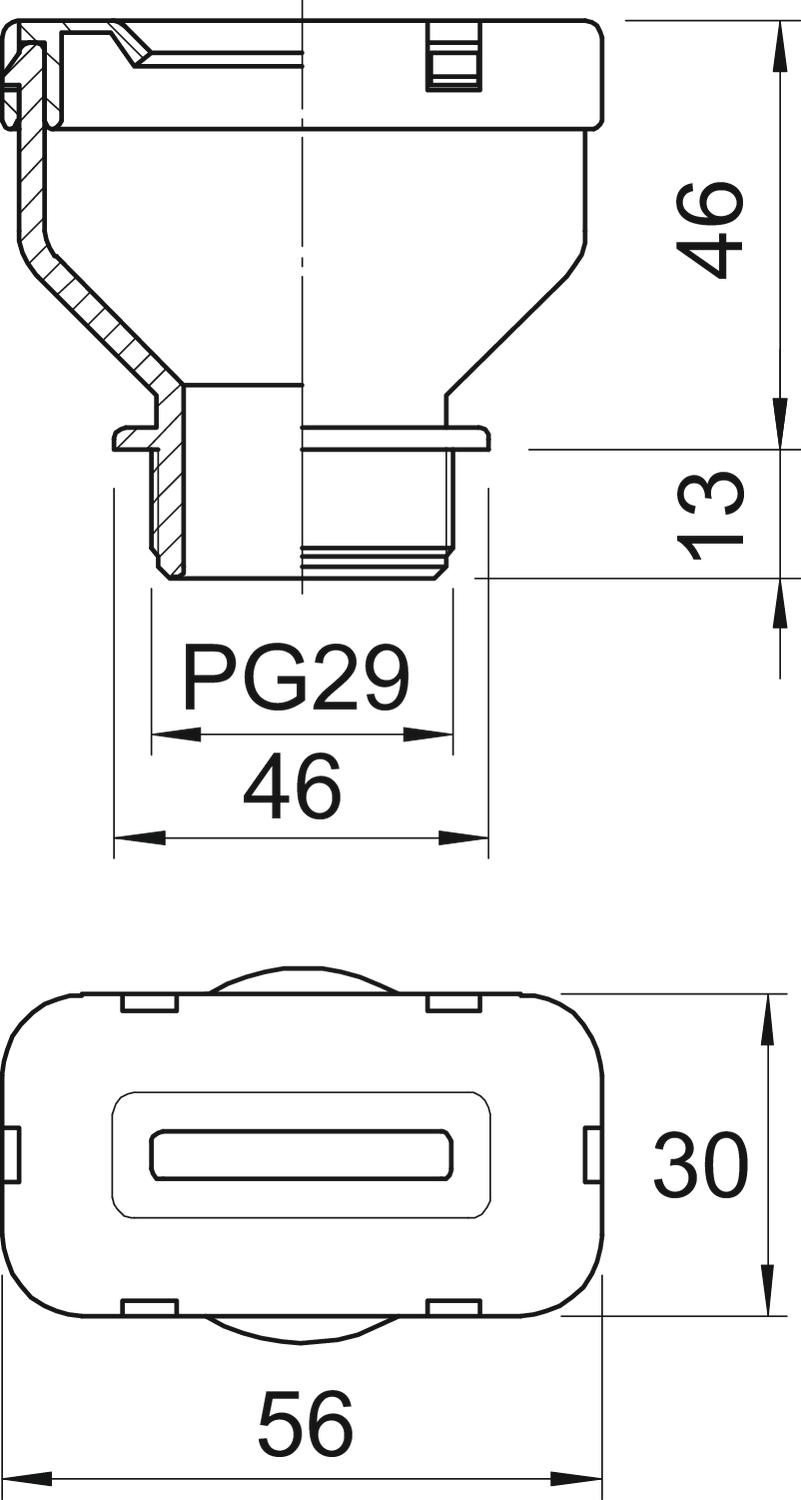

Bend protection no Colour Stone grey; RAL 7030 Dimension PG29 Dimension A 30 mm Dimension B 56 mm Dimension D 46 mm Dimension G PG29 mm Dimension L 59 mm Dimension L1 13 mm Dimension L2 46 mm Fibre-glass reinforced no Flat cable gland yes Flat cable/width, max. 40 mm Flat cable/width, min. 37 mm Flat cables/thickness, max. 14 mm Flat cables/thickness, min. 11 mm For Ex zone Without Impact-resistant no Material Polyethylene Protection rating IP31 Sealing insert, multiple no Strain relief option no Thread Pg 29 Thread type PG Type of seal Sealing ring With locknut no - All types
-
All types
