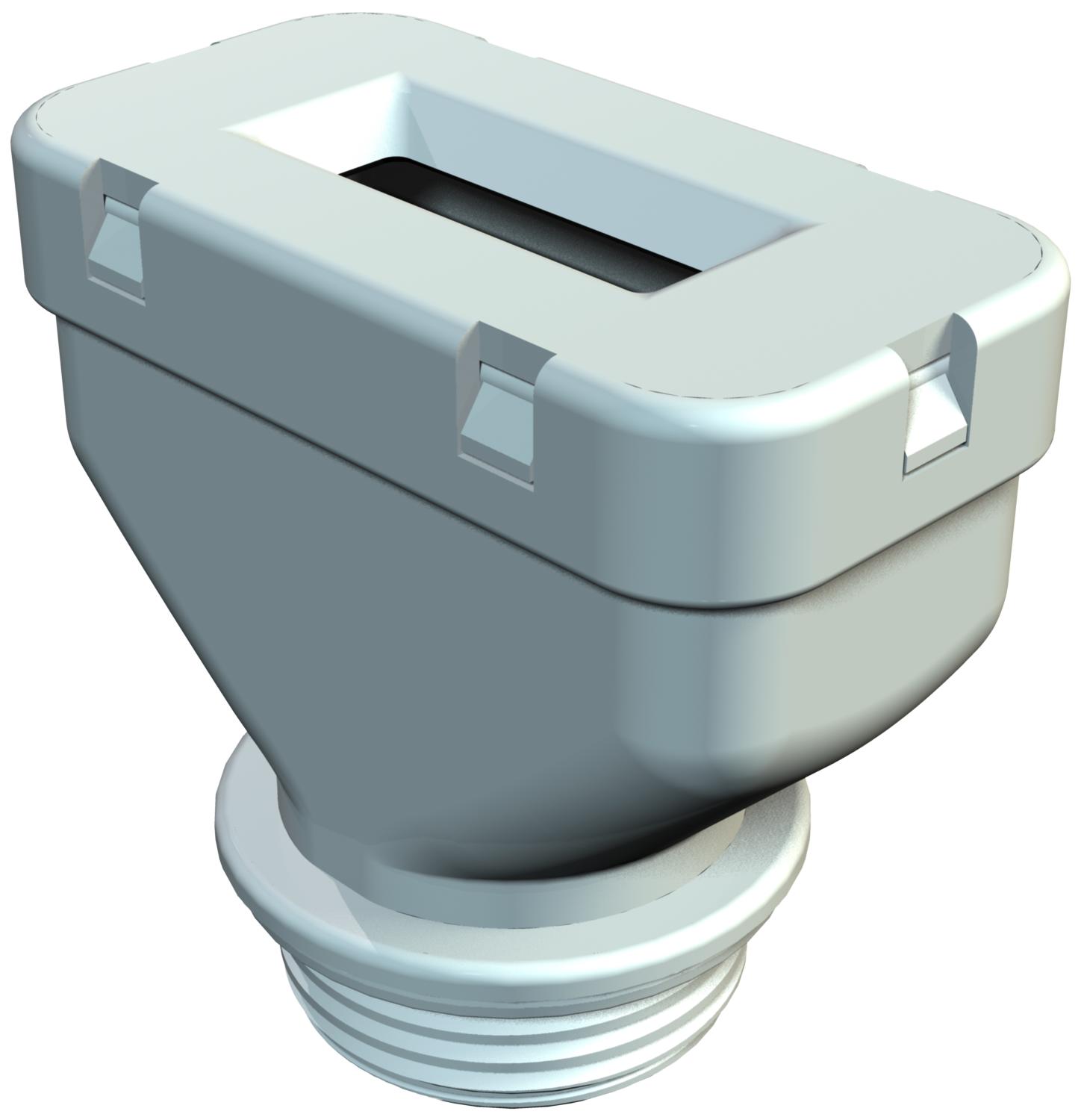

Flat cable threaded connection, PG thread rectangular version, stone grey
Item no. 2012855 | EAN 4012195157212
- Product description
-
Product descriptionFlat-cable entry, choke-nipple design with PG connecting thread to DIN 40430, protection rating IP31, with pre-mounted support sealing ring 107/F.
-
- Technical data
-
Technical data

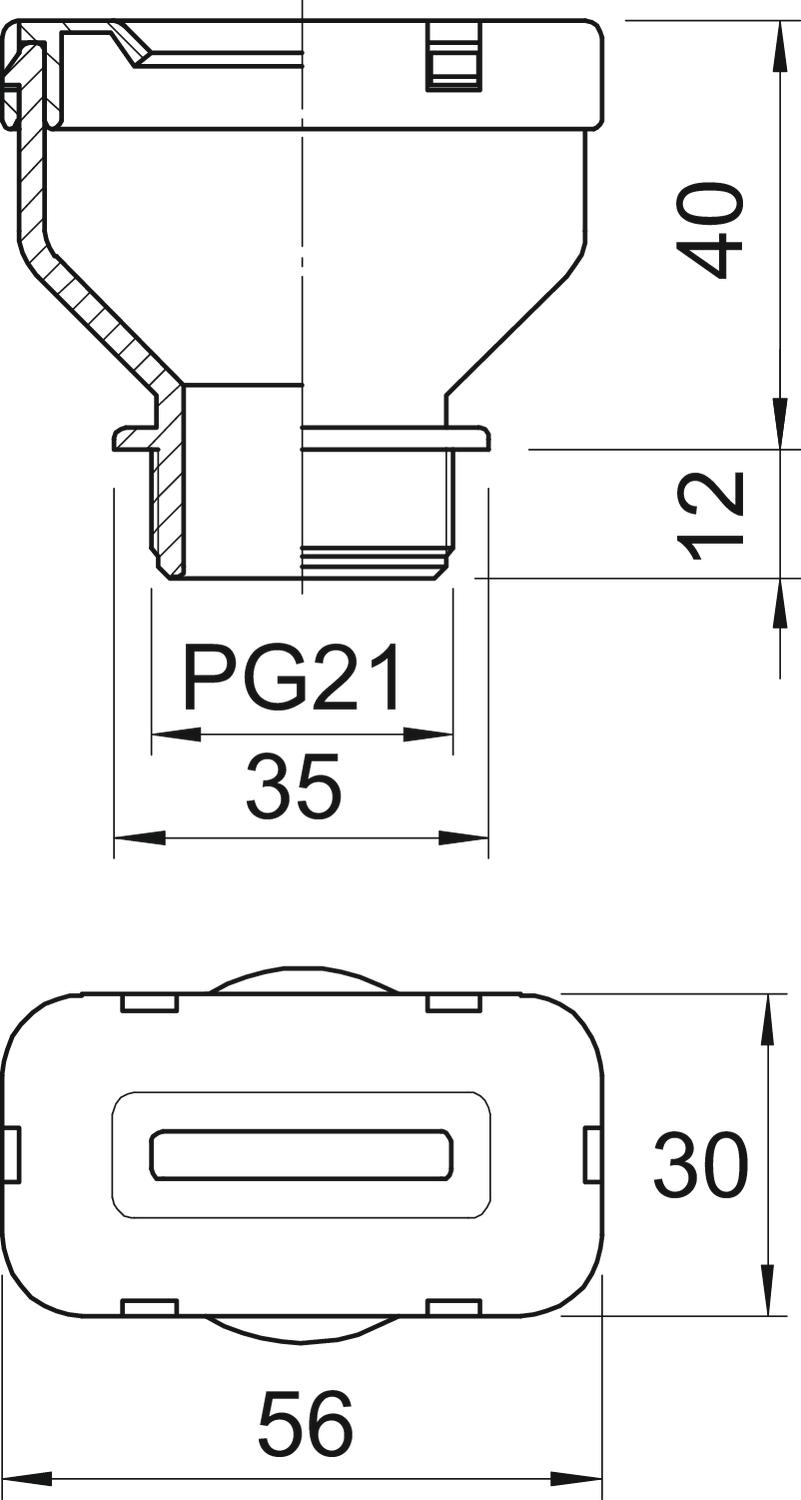

Bend protection no Colour Stone grey; RAL 7030 Dimension PG21 Dimension A 30 mm Dimension B 56 mm Dimension D 35 mm Dimension G PG21 mm Dimension L 52 mm Dimension L1 12 mm Dimension L2 40 mm Fibre-glass reinforced no Flat cable gland yes Flat cable/width, max. 30 mm Flat cable/width, min. 27 mm Flat cables/thickness, max. 6 mm Flat cables/thickness, min. 4 mm For Ex zone Without Impact-resistant no Material Polyethylene Protection rating IP31 Sealing insert, multiple no Strain relief option no Thread Pg 21 Thread type PG Type of seal Sealing ring Version for Straight With locknut no - All types
-
All types
- Downloads
-
Data sheet 106 FL 21 6 30 / 2012855 , 0.32MB , pdfEU declaration of conformity 106 FL 21 6 30 / 2012855 , 0.13MB , pdfUK Declaration of Conformity 106 FL 21 6 30 / 2012855 , 0.14MB , pdfREACH Declaration of conformity 106 FL 21 6 30 / 2012855 , 0.12MB , pdfRoHS Declaration of conformity 106 FL 21 6 30 / 2012855 , 0.13MB , pdf
