Flat cable threaded connection, PG thread 30 | 33 | 6 | 8 | Pg 21
morepic-1 morepic-2

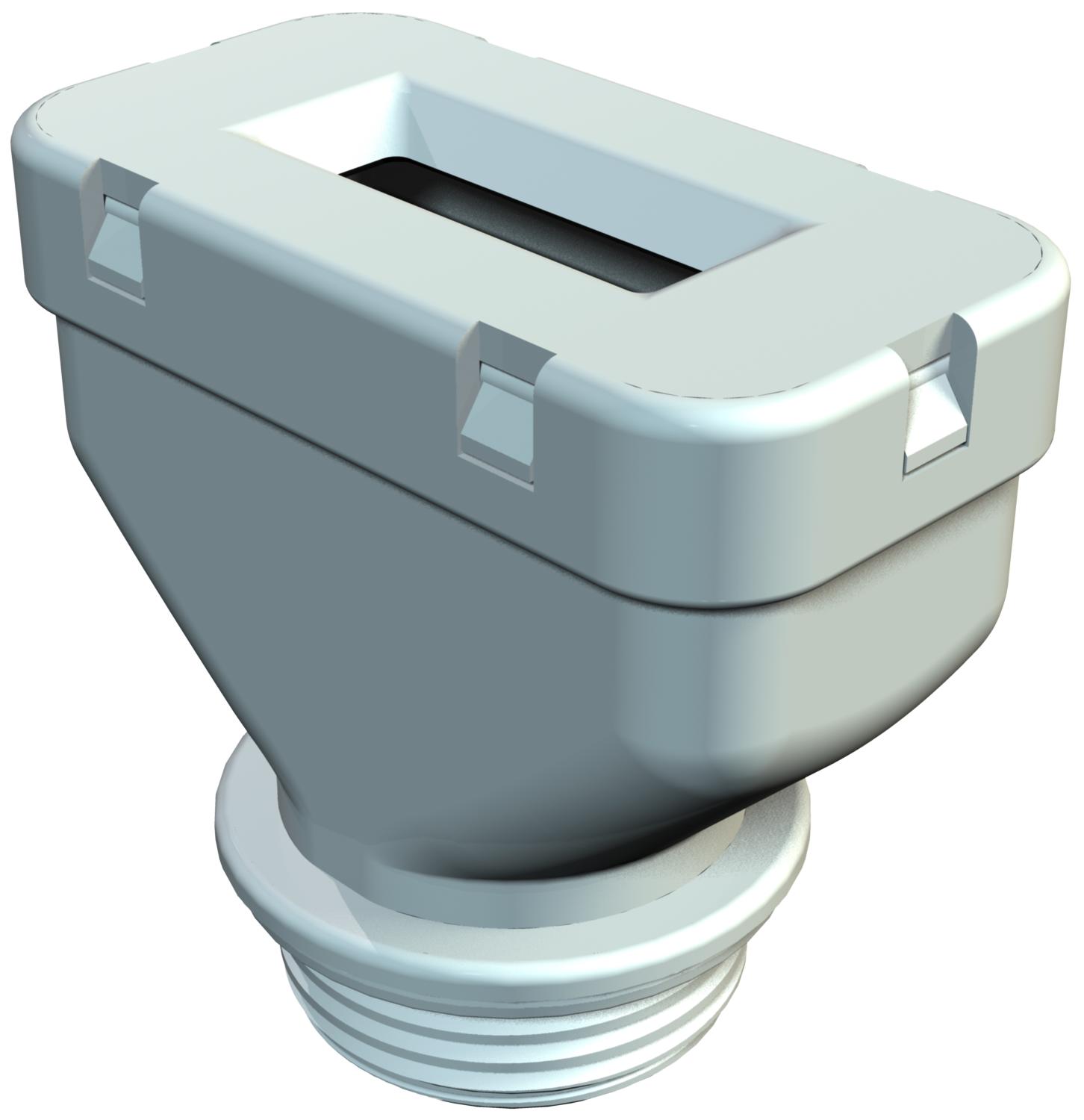

Flat cable threaded connection, PG thread

Item no. 2012782 | EAN 4012195156918

Product description

Product description

Flat-cable entry, choke-nipple design with PG connecting thread to DIN 40430, protection rating IP31, with pre-mounted support sealing ring 107/F.
  • Flame resistant 650 °C
  • Halogen-free; without chlorine, fluorine and bromine
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
  • Protection rating IP 31
  • Thread Pg
Technical data

Technical data

Bend protection no
Colour Stone grey; RAL 7030

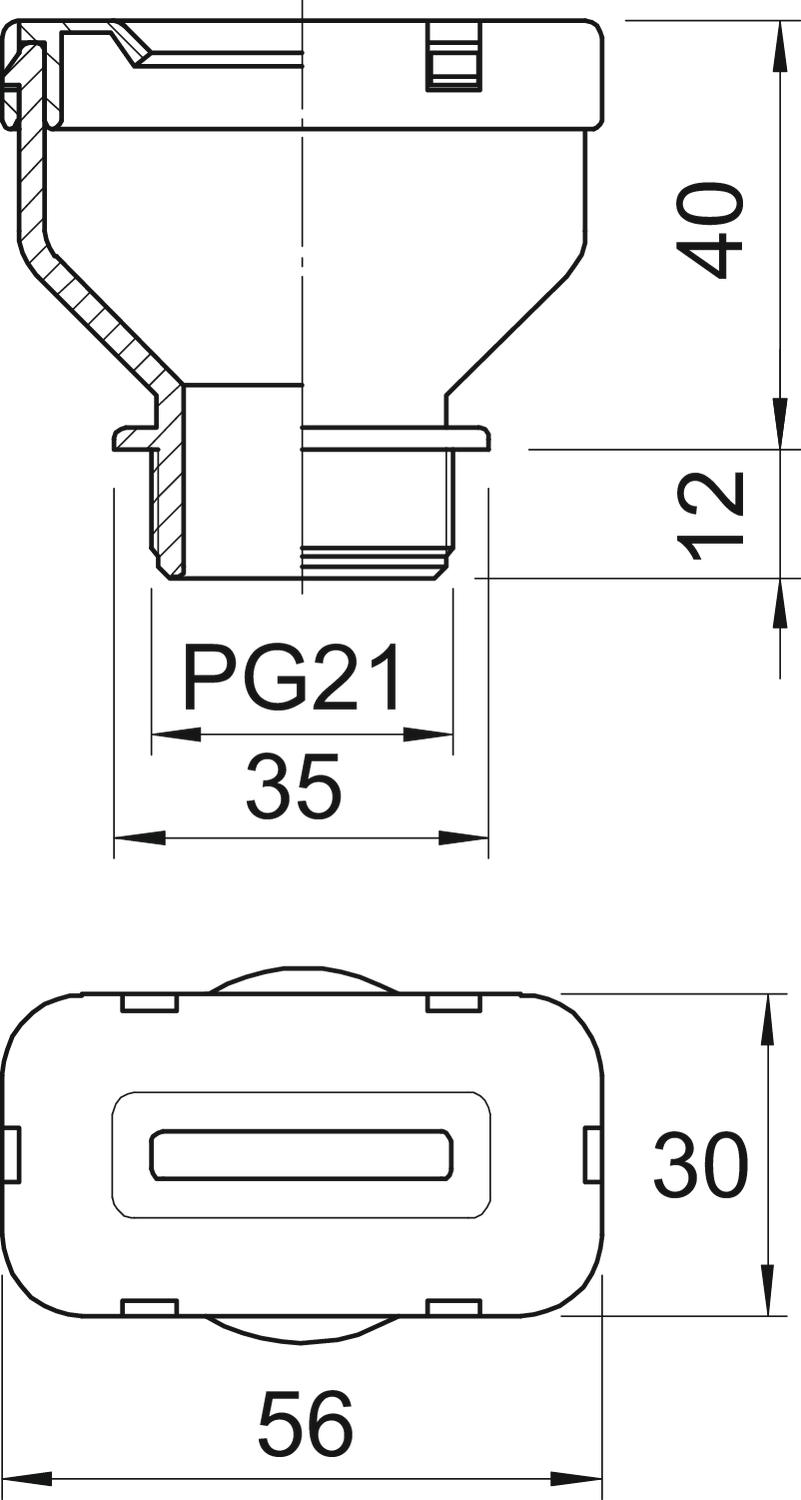

Dimension PG21
Dimension A 30 mm
Dimension B 56 mm
Dimension D 35 mm
Dimension G PG21 mm
Dimension L 52 mm
Dimension L1 12 mm
Dimension L2 40 mm
Fibre-glass reinforced no
Flat cable gland yes
Flat cable/width, max. 33 mm
Flat cable/width, min. 30 mm
Flat cables/thickness, max. 8 mm
Flat cables/thickness, min. 6 mm
For Ex zone Without
Impact-resistant no
Material Polyethylene
Protection rating IP31
Sealing insert, multiple no
Strain relief option no
Thread Pg 21
Thread type PG
Type of seal Sealing ring
Version for Straight
With locknut no
All types

All types

Types Flat cable/width, min. Flat cable/width, max. Flat cables/thickness, min. Flat cables/thickness, max. Thread Item no. Quantity SSU
106 FL 29 14 40 37 mm 40 mm 11 mm 14 mm Pg 29 2012774
15 piece
106 FL 21 8 33 30 mm 33 mm 6 mm 8 mm Pg 21 2012782
25 piece
106 FL 21 9 39 36 mm 39 mm 7 mm 9 mm Pg 21 2012804
25 piece
106 FL 21 9 22 19 mm 22 mm 7 mm 9 mm Pg 21 2012820
25 piece
106 FL 21 10 29 26 mm 29 mm 8 mm 10 mm Pg 21 2012839
25 piece
106 FL 21 12 35 31 mm 35 mm 9 mm 12 mm Pg 21 2012847
25 piece
106 FL 21 6 30 27 mm 30 mm 4 mm 6 mm Pg 21 2012855
25 piece
106 FL 21 10 31 28.5 mm 31.5 mm 8.5 mm 10.5 mm Pg 21 2012871
25 piece
106 FL 21 14 40 37 mm 40 mm 11 mm 14 mm Pg 21 2012928
25 piece
