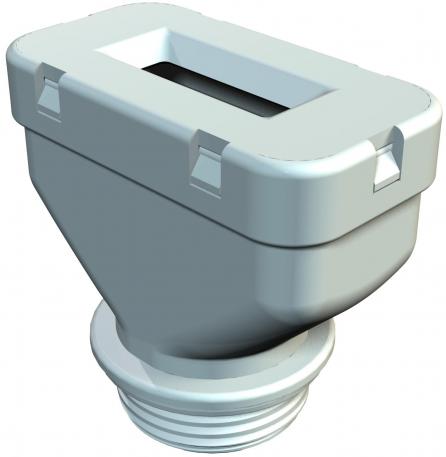

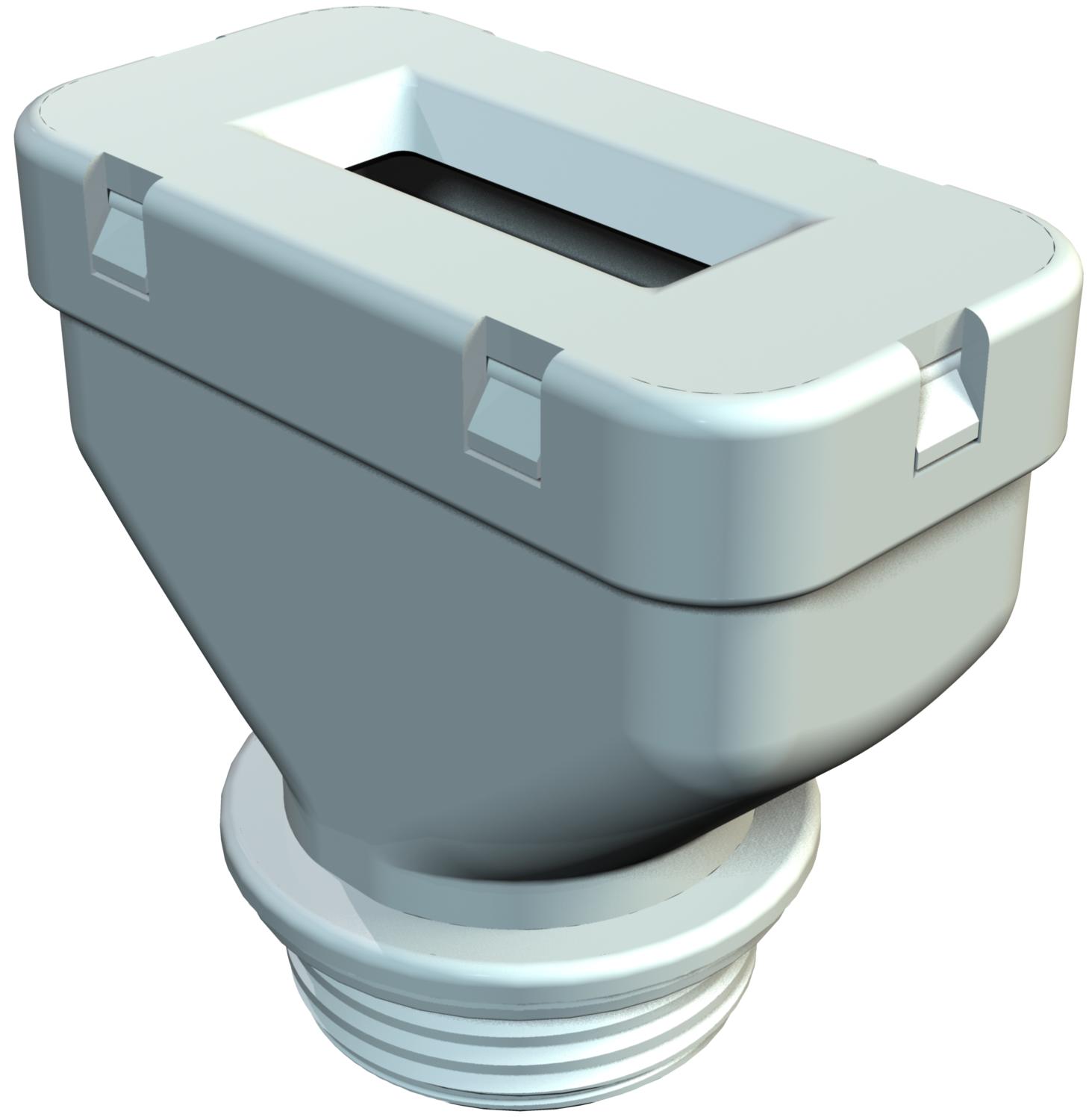

Flat cable threaded connection, metric thread M32, stone grey
Item no. 2013018 | EAN 4012195515890
- Product description
-
Product descriptionFlat-cable entry, choke-nipple design with metric connecting thread to IEC 432, protection rating IP31, with pre-mounted support sealing ring 107/F.
-
- Technical data
-
Technical data

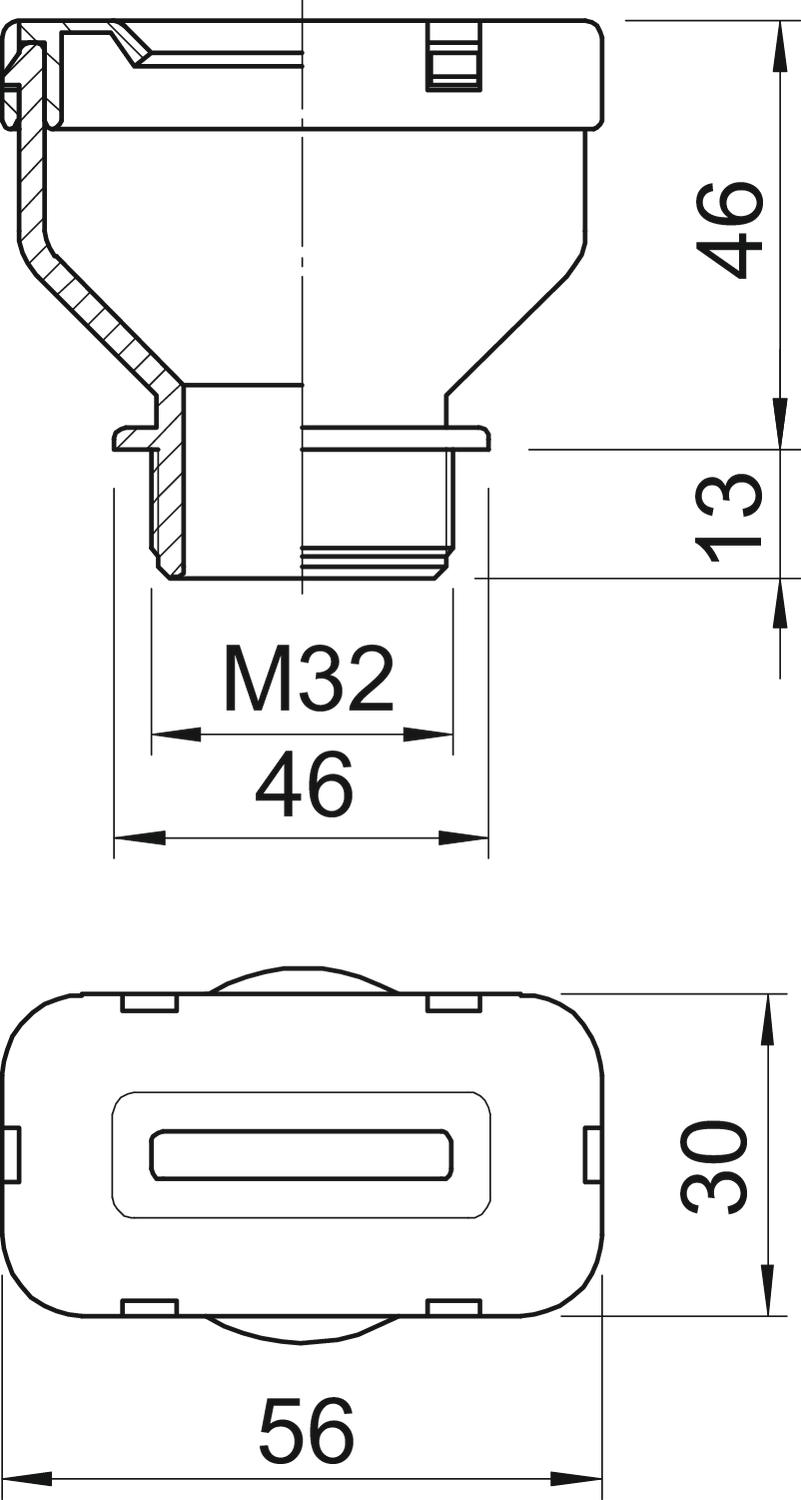

Bend protection yes Colour Stone grey; RAL 7030 Dimension M32 Dimension A 30 mm Dimension B 56 mm Dimension D 46 mm Dimension G M32 mm Dimension L 59 mm Dimension L1 13 mm Dimension L2 46 mm explosion-proof no Fibre-glass reinforced no Flat cable gland yes Flat cable/width, max. 39 mm Flat cable/width, min. 36 mm Flat cables/thickness, max. 9 mm Flat cables/thickness, min. 7 mm For Ex zone Without Impact-resistant no Material Polyethylene Protection rating IP31 Sealing insert, multiple no Strain relief option no Thread M32 Thread type Metric Type of seal Sealing ring Version for Straight With locknut no - All types
-
All types
- Downloads
-
Data sheet 106 FL M32 9 39 / 2013018 , 0.25MB , pdfEU declaration of conformity 106 FL M32 9 39 / 2013018 , 0.13MB , pdfUK Declaration of Conformity 106 FL M32 9 39 / 2013018 , 0.14MB , pdfREACH Declaration of conformity 106 FL M32 9 39 / 2013018 , 0.12MB , pdfRoHS Declaration of conformity 106 FL M32 9 39 / 2013018 , 0.12MB , pdf
