Flat cable threaded connection, metric thread M25, stone grey 27 | 30 | 4 | 6 | M25
morepic-1 morepic-2

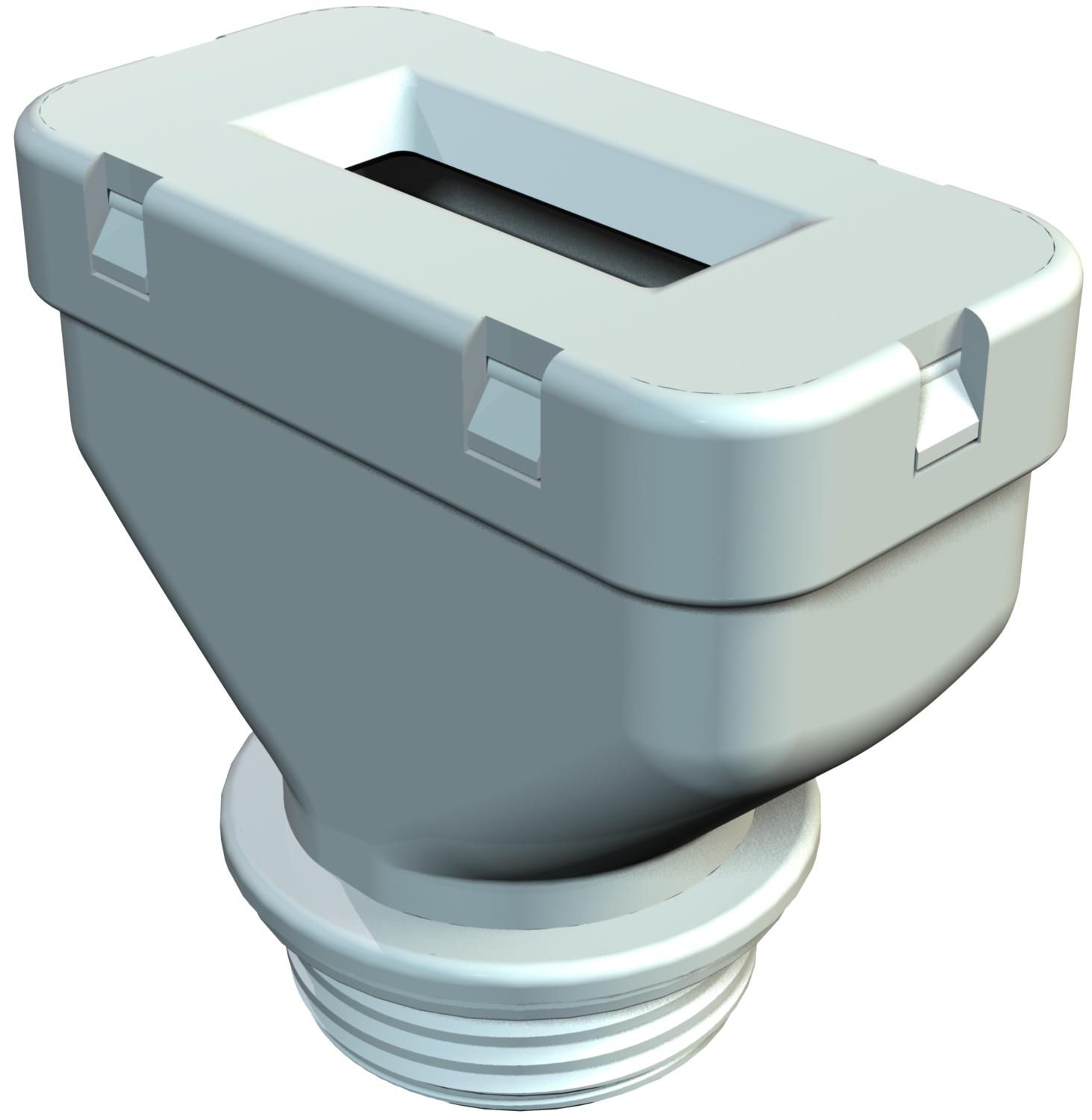

Flat cable threaded connection, metric thread M25, stone grey

Item no. 2013006 | EAN 4012195515234

M25
Product description

Product description

Flat-cable entry, choke-nipple design with metric connecting thread to IEC 432, protection rating IP31, with pre-mounted support sealing ring 107/F.
  • Flame resistant 650 °C
  • Halogen-free; without chlorine, fluorine and bromine
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
  • Protection rating IP 31
  • Thread metric
Technical data

Technical data

Bend protection yes
Colour Stone grey; RAL 7030

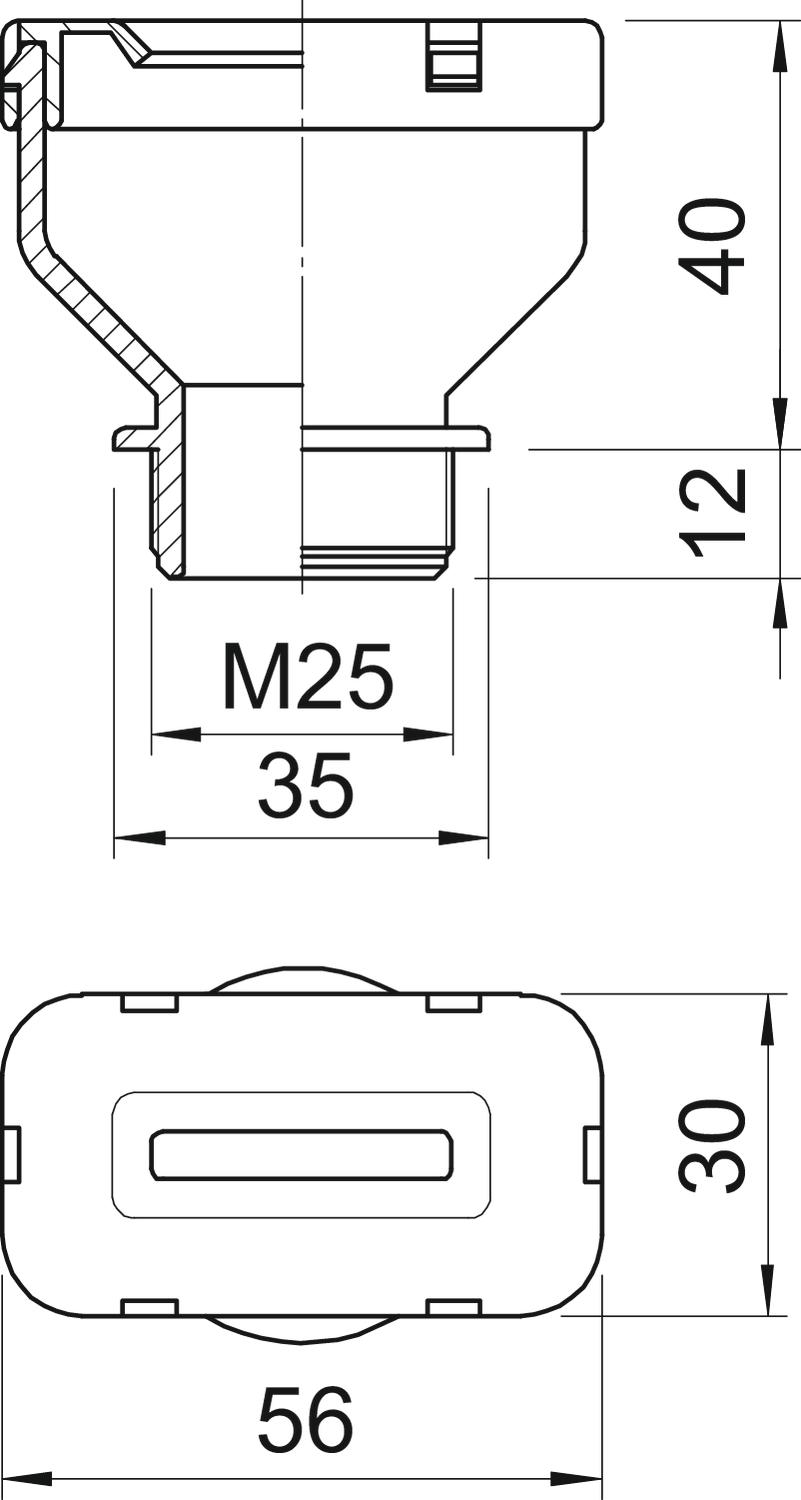

Dimension M25
Dimension A 30 mm
Dimension B 56 mm
Dimension D 35 mm
Dimension G M25 mm
Dimension L 52 mm
Dimension L1 12 mm
Dimension L2 40 mm
explosion-proof no
Fibre-glass reinforced no
Flat cable gland yes
Flat cable/width, max. 30 mm
Flat cable/width, min. 27 mm
Flat cables/thickness, max. 6 mm
Flat cables/thickness, min. 4 mm
For Ex zone Without
Impact-resistant no
Material Polyethylene
Protection rating IP31
Sealing insert, multiple no
Strain relief option no
Thread M25
Thread type Metric
Type of seal Sealing ring
Version for Straight
With locknut no
All types

All types

Types Flat cable/width, min. Flat cable/width, max. Flat cables/thickness, min. Flat cables/thickness, max. Thread Item no. Quantity SSU
106 FL M25 6 30 27 mm 30 mm 4 mm 6 mm M25 2013006
25 piece
106 FL M25 8 33 30 mm 33 mm 6 mm 8 mm M25 2013007
25 piece
106 FL M25 9 22 19 mm 22 mm 7 mm 9 mm M25 2013008
25 piece
106 FL M25 9 39 36 mm 39 mm 7 mm 9 mm M25 2013009
25 piece
106 FL M25 10 29 26 mm 29 mm 8 mm 10 mm M25 2013010
25 piece
106 FL M25 10 31 28.5 mm 31.5 mm 8.5 mm 10.5 mm M25 2013011
25 piece
106 FL M25 12 35 31 mm 35 mm 9 mm 12 mm M25 2013012
25 piece
106 FL M25 14 40 37 mm 40 mm 11 mm 14 mm M25 2013013
25 piece
