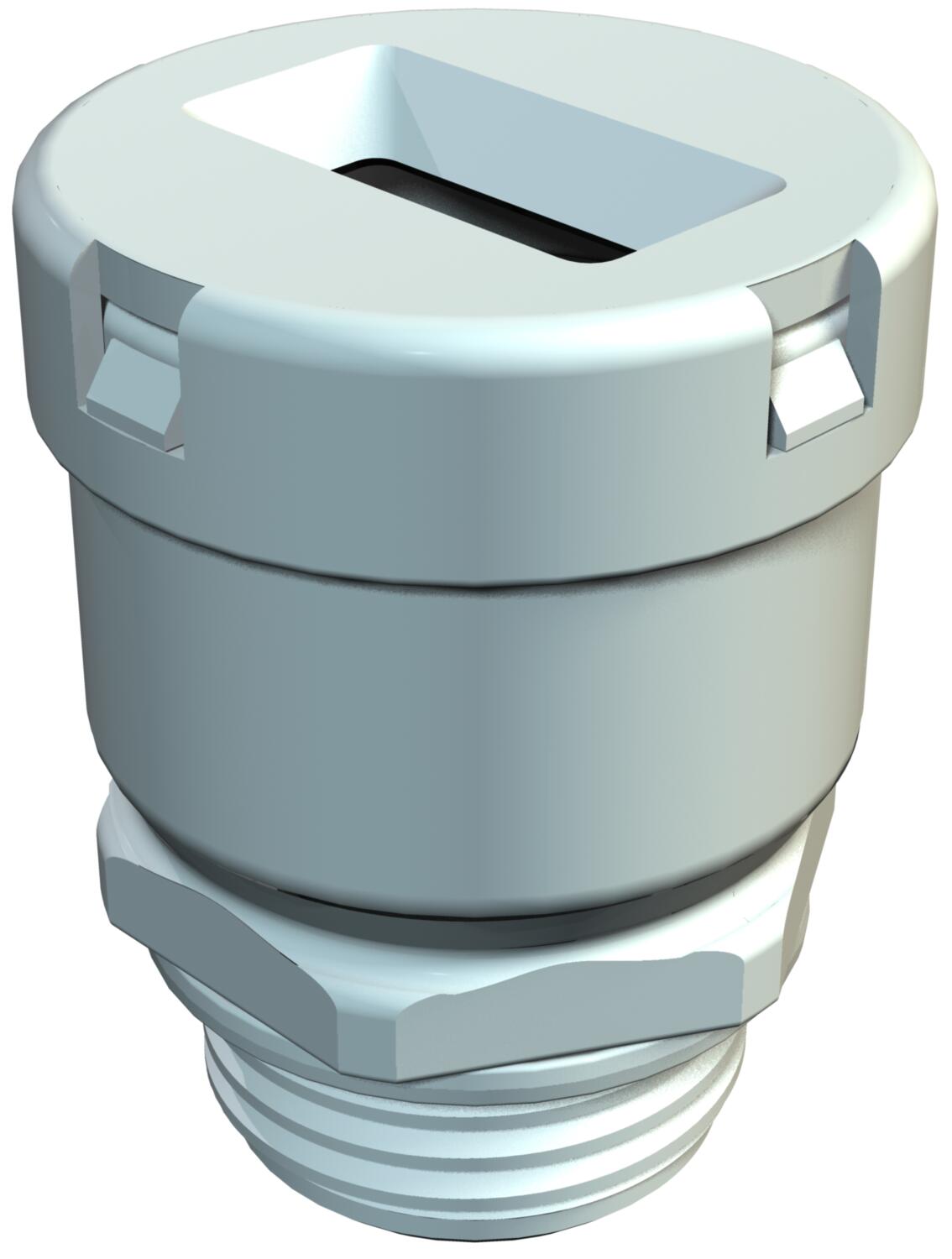

Flat cable threaded connection, metric thread M20, stone grey
Item no. 2013002 | EAN 4012195515173
- Product description
-
Product descriptionFlat-cable entry, choke-nipple design with metric connecting thread to IEC 432, protection rating IP31, with pre-mounted support sealing ring 107/F.
-
- Technical data
-
Technical data

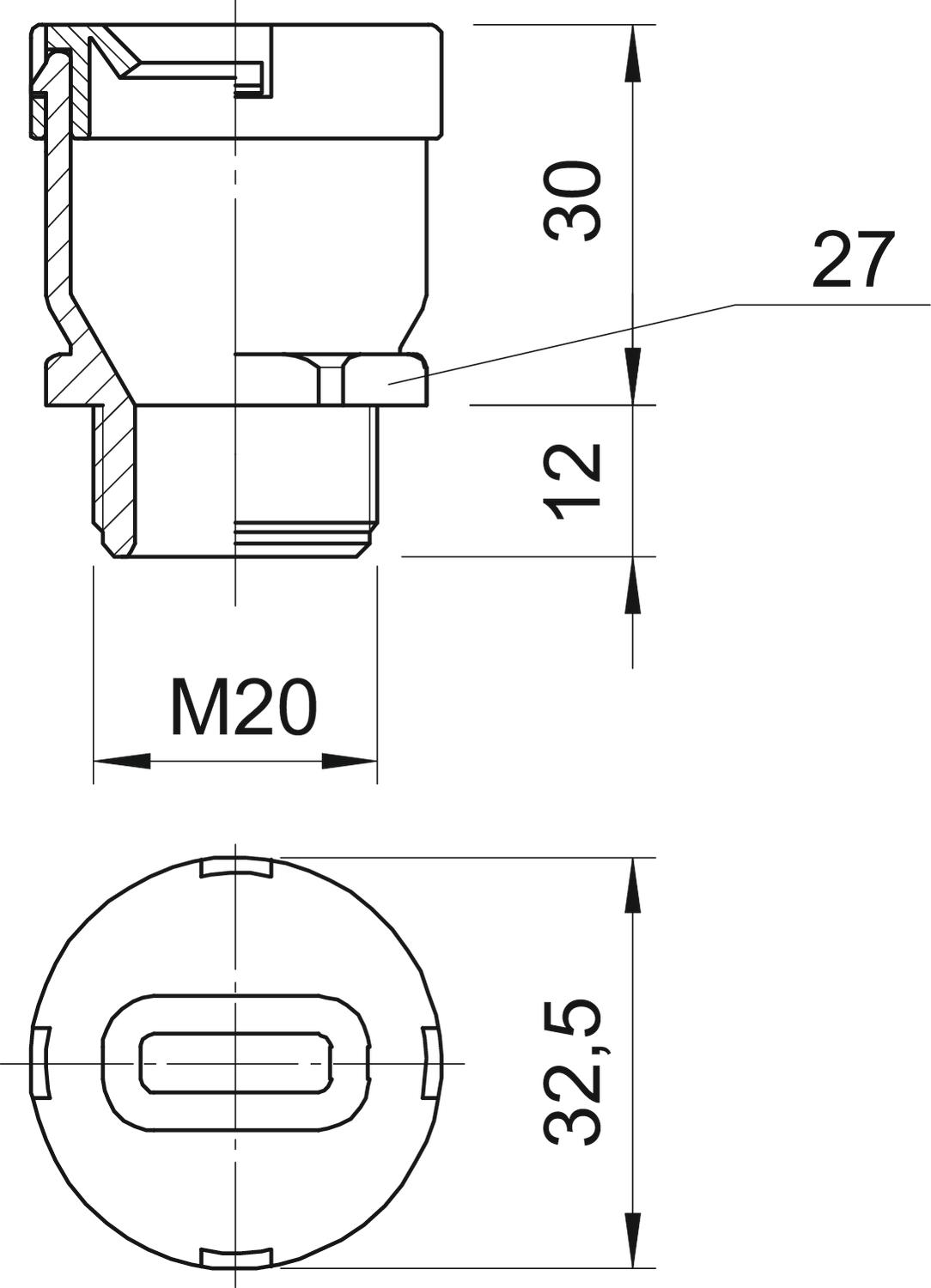

Bend protection no Colour Stone grey; RAL 7030 Dimension M20 Dimension D 32,5 mm Dimension G M20 mm Dimension L 42 mm Dimension L1 12 mm Dimension L2 30 mm explosion-proof no Fibre-glass reinforced no Flat cable gland yes Flat cable/width, max. 19 mm Flat cable/width, min. 17 mm Flat cables/thickness, max. 8 mm Flat cables/thickness, min. 6 mm For Ex zone Without Impact-resistant no Material Polyethylene Protection rating IP31 Sealing insert, multiple no Strain relief option no Thread M20 Thread type Metric Type of seal Sealing ring Version for Straight WAF 27 With locknut no - All types
- Downloads
-
Data sheet 106 FL M20 8 19 / 2013002 , 0.32MB , pdfEU declaration of conformity 106 FL M20 8 19 / 2013002 , 0.13MB , pdfUK Declaration of Conformity 106 FL M20 8 19 / 2013002 , 0.14MB , pdf
