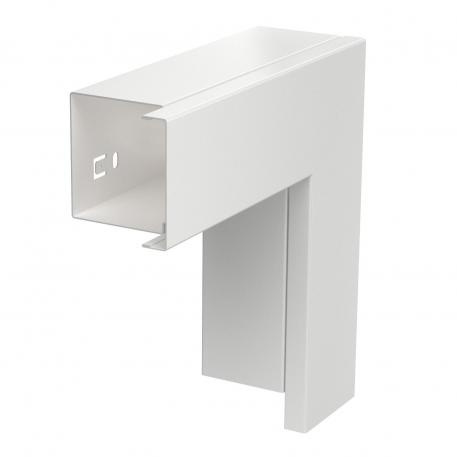

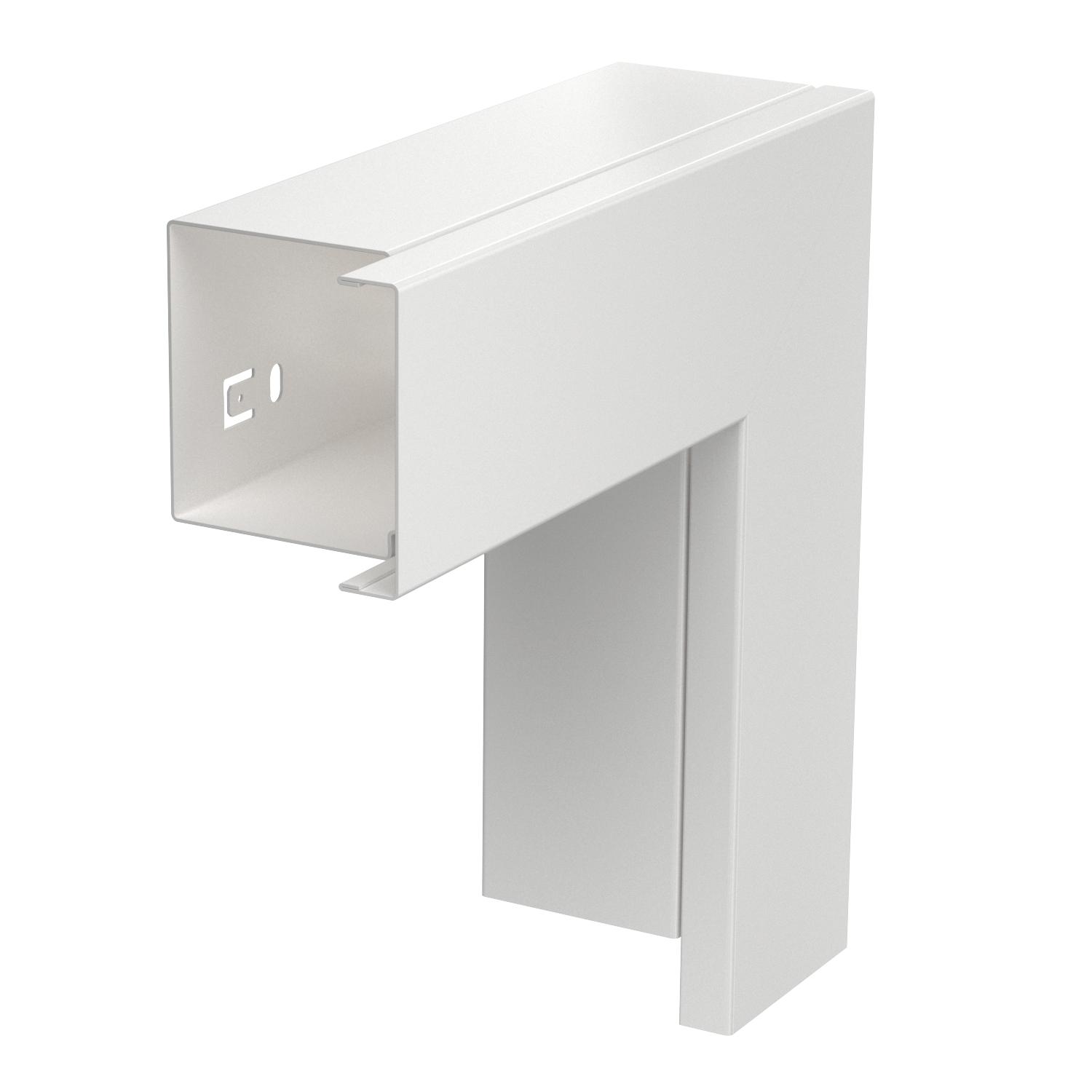

Flat angle, for cable trunking type LKM 60060
Item no. 6249485 | EAN 4012196503414
- Product description
-
Product descriptionFlat angle including cover for changing the direction of the LKM ducts.
Equipotential bonding without additional aids, between base and cover
-
- Technical data
-
Technical data
Angle range, min. 90 mm Antibacterial treatment no Colour Pure white; RAL 9010 Dimension 60x60mm Dimension a 140 mm Duct height, min. 64 mm Fastening type Base perforation for duct dimension 60 x 60 Halogen-free yes Height 64 mm Length 140 mm Maintain electrical functions no Material Steel Permitted temperature range, max. 90 °C Permitted temperature range, min. -5 °C Protection rating IP30 Protection rating IK code IK10 Protective film no Surface Strip galvanized / plastic coated Trunking depth 64 mm Version for Base and cover Width 60 mm - All types
- Downloads
-
Data sheet LKM F60060RW / 6249485 , 0.18MB , pdfEU declaration of conformity LKM F60060RW / 6249485 , 0.13MB , pdfUK Declaration of Conformity LKM F60060RW / 6249485 , 0.14MB , pdfREACH Declaration of conformity LKM F60060RW / 6249485 , 0.27MB , pdfRoHS Declaration of conformity LKM F60060RW / 6249485 , 0.28MB , pdfLabel approval VDE symbol approval LKM , 0.15MB , pdfMounting instructions LKM-Kanal , 0.77MB , pdf
