Flat angle cover, trunking type WDK 60230 | 230 | Light grey; RAL 7035
morepic-1 morepic-2

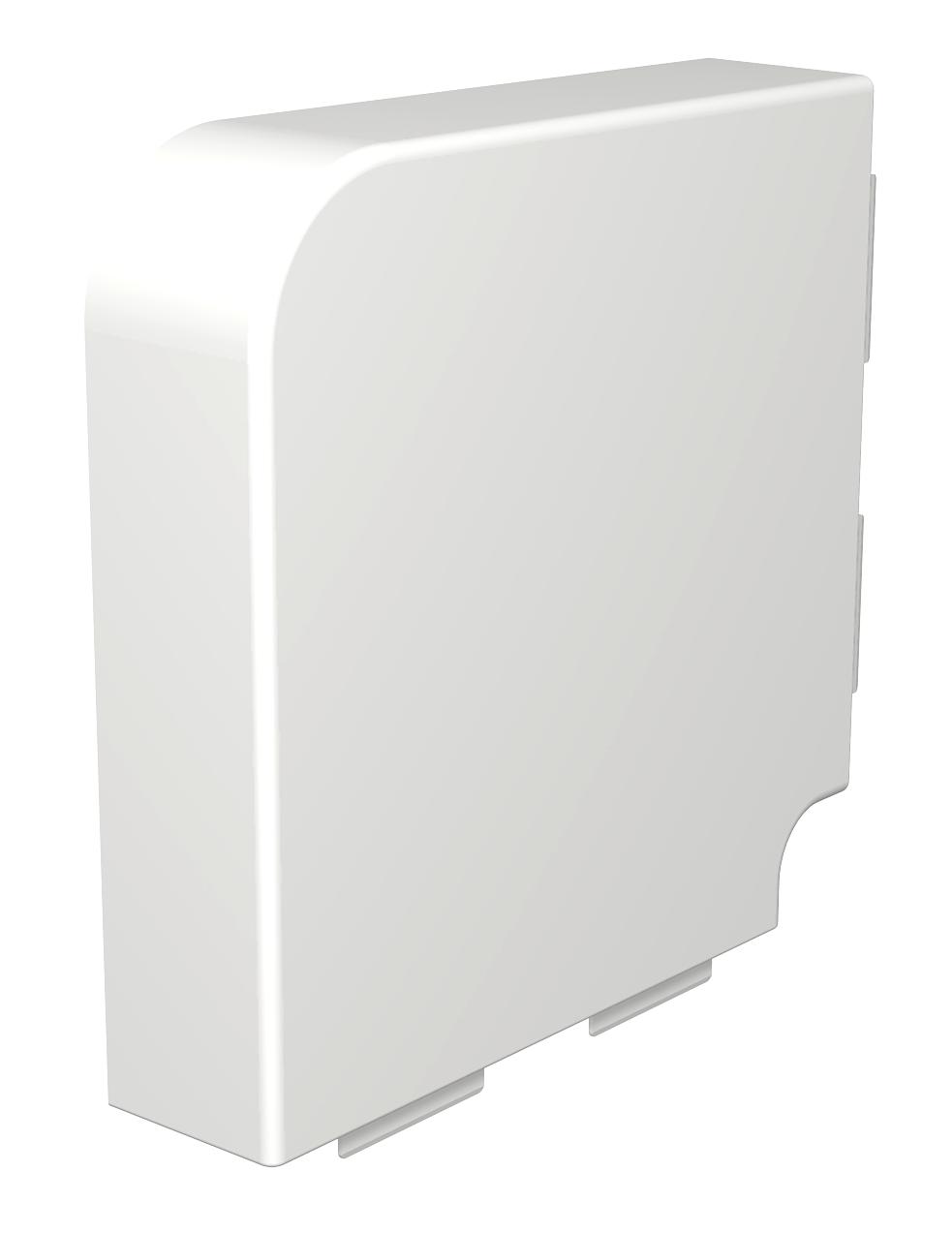

Flat angle cover, trunking type WDK 60230

Item no. 6183484 | EAN 4012196678136

230 mm
Product description
Product description
Flat angle hood for changing the direction of the WDK trunking.
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
Technical data

Technical data

Angle range, max. 90 mm
Angle range, min. 90 mm
Antibacterial treatment no
Colour Light grey; RAL 7035
Dimension 60x230mm
Dimension a 270 mm
Dimension H 230 mm
Fastening type Lockable
for duct dimension 60 x 230
Halogen-free no
Height 60 mm
Length 270 mm
Maintain electrical functions no
Material Polyvinylchloride
Permitted temperature range, max. 60 °C
Permitted temperature range, min. -5 °C
Protection rating IP30
Protection rating IK code IK04
Protective film no
Trunking depth 60 mm
Version for Hood fitting
Width 230 mm
All types

All types

Types Dimension H Colour Item no. Quantity SSU
WDK HF60230GR 230 mm Stone grey; RAL 7030 6024602
2 piece
WDK HF60230CW 230 mm Cream; RAL 9001 6161596
2 piece
WDK HF60230LGR 230 mm Light grey; RAL 7035 6183484
2 piece
WDK HF60230RW 230 mm Pure white; RAL 9010 6192998
2 piece
Downloads

Download

Download

EU declaration of conformity WDK HF60230LGR / 6183484 , 0.13MB , pdf
Download
UK Declaration of Conformity WDK HF60230LGR / 6183484 , 0.14MB , pdf
Download
REACH Declaration of conformity WDK HF60230LGR / 6183484 , 0.12MB , pdf
Download
RoHS Declaration of conformity WDK HF60230LGR / 6183484 , 0.12MB , pdf
Download

Download
Download

No invitation to tender text is available for this product.
