Flat angle cover, trunking type WDK 60130 | 130 | Stone grey; RAL 7030
morepic-1 morepic-2

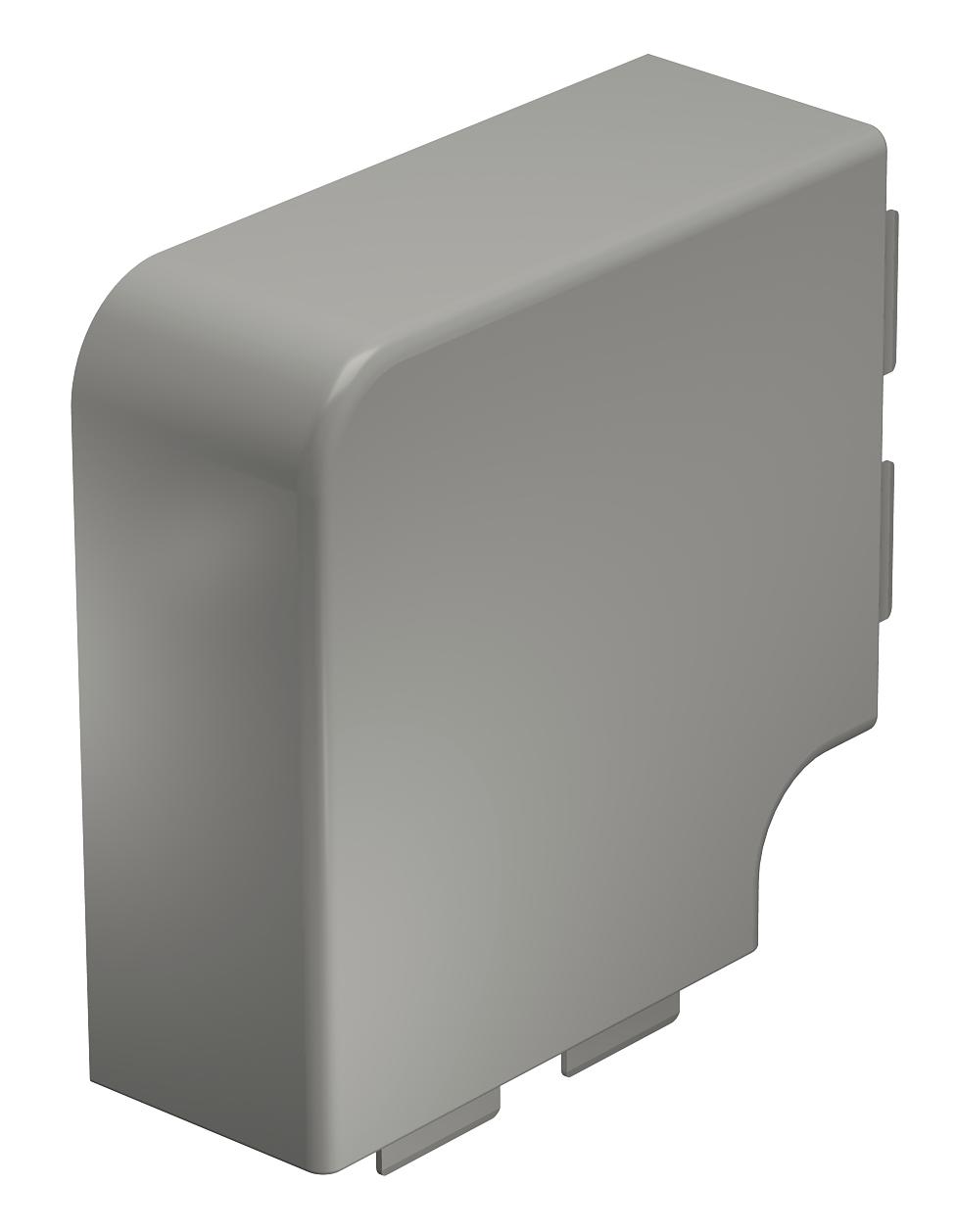

Flat angle cover, trunking type WDK 60130

Item no. 6022359 | EAN 4012196022038

130 mm
Product description
Product description
Flat angle hood for changing the direction of the WDK trunking.
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
Technical data

Technical data

Angle range, max. 90 mm
Angle range, min. 90 mm
Antibacterial treatment no
Colour Stone grey; RAL 7030
Dimension 60x130mm
Dimension a 170 mm
Dimension H 130 mm
Fastening type Lockable
for duct dimension 60 x 130
Halogen-free no
Height 60 mm
Length 170 mm
Maintain electrical functions no
Material Polyvinylchloride
Permitted temperature range, max. 60 °C
Permitted temperature range, min. -5 °C
Protection rating IP30
Protection rating IK code IK04
Protective film no
Trunking depth 60 mm
Version for Hood fitting
Width 130 mm
All types

All types

Types Dimension H Colour Item no. Quantity SSU
WDK HF60130GR 130 mm Stone grey; RAL 7030 6022359
2 piece
WDK HF60130CW 130 mm Cream; RAL 9001 6161537
2 piece
WDK HF60130LGR 130 mm Light grey; RAL 7035 6183433
2 piece
WDK HF60130RW 130 mm Pure white; RAL 9010 6192947
2 piece
