Flat angle cover, trunking type WDK 60110 | 110 | Pure white; RAL 9010
morepic-1 morepic-2

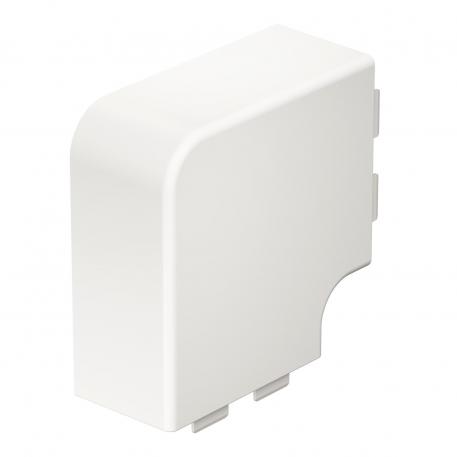

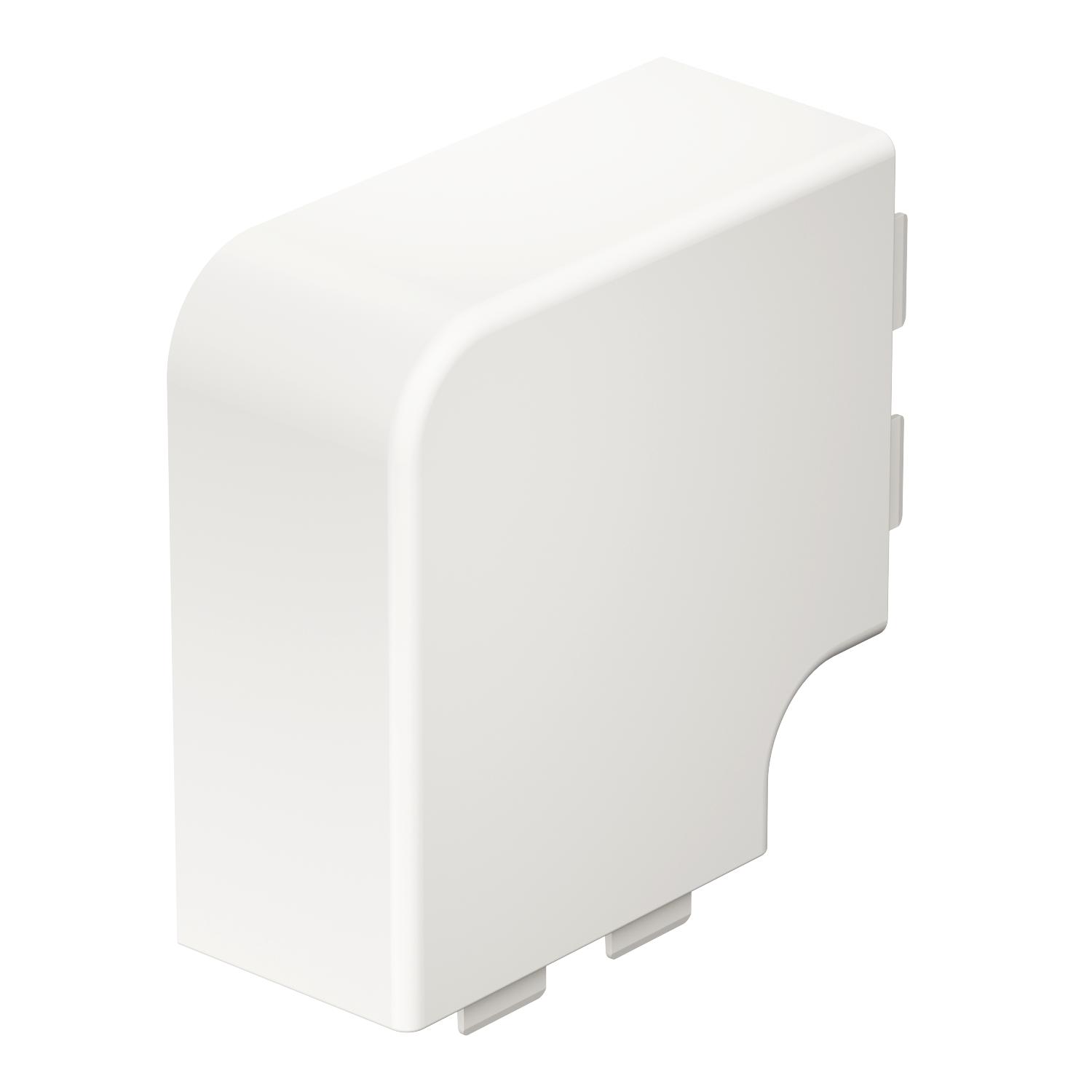

Flat angle cover, trunking type WDK 60110

Item no. 6192939 | EAN 4012196712755

110 mm
Product description
Product description
Flat angle hood for changing the direction of the WDK trunking.
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
Technical data

Technical data

Angle range, max. 90 mm
Angle range, min. 90 mm
Antibacterial treatment no
Colour Pure white; RAL 9010
Dimension 60x110mm
Dimension a 149 mm
Dimension H 110 mm
Fastening type Lockable
for duct dimension 60 x 110
Halogen-free no
Height 60 mm
Length 149 mm
Maintain electrical functions no
Material Polyvinylchloride
Permitted temperature range, max. 60 °C
Permitted temperature range, min. -5 °C
Protection rating IP30
Protection rating IK code IK04
Protective film no
Trunking depth 60 mm
Version for Hood fitting
Width 110 mm
All types

All types

Types Dimension H Colour Item no. Quantity SSU
WDK HF60110GR 110 mm Stone grey; RAL 7030 6022332
2 piece
WDK HF60110CW 110 mm Cream; RAL 9001 6161529
2 piece
WDK HF60110LGR 110 mm Light grey; RAL 7035 6183425
2 piece
WDK HF60110RW 110 mm Pure white; RAL 9010 6192939
2 piece
