Flat angle cover, trunking type WDK 40110 | 110 | Cream; RAL 9001
morepic-1 morepic-2

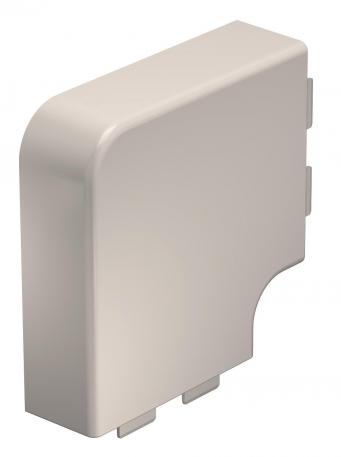

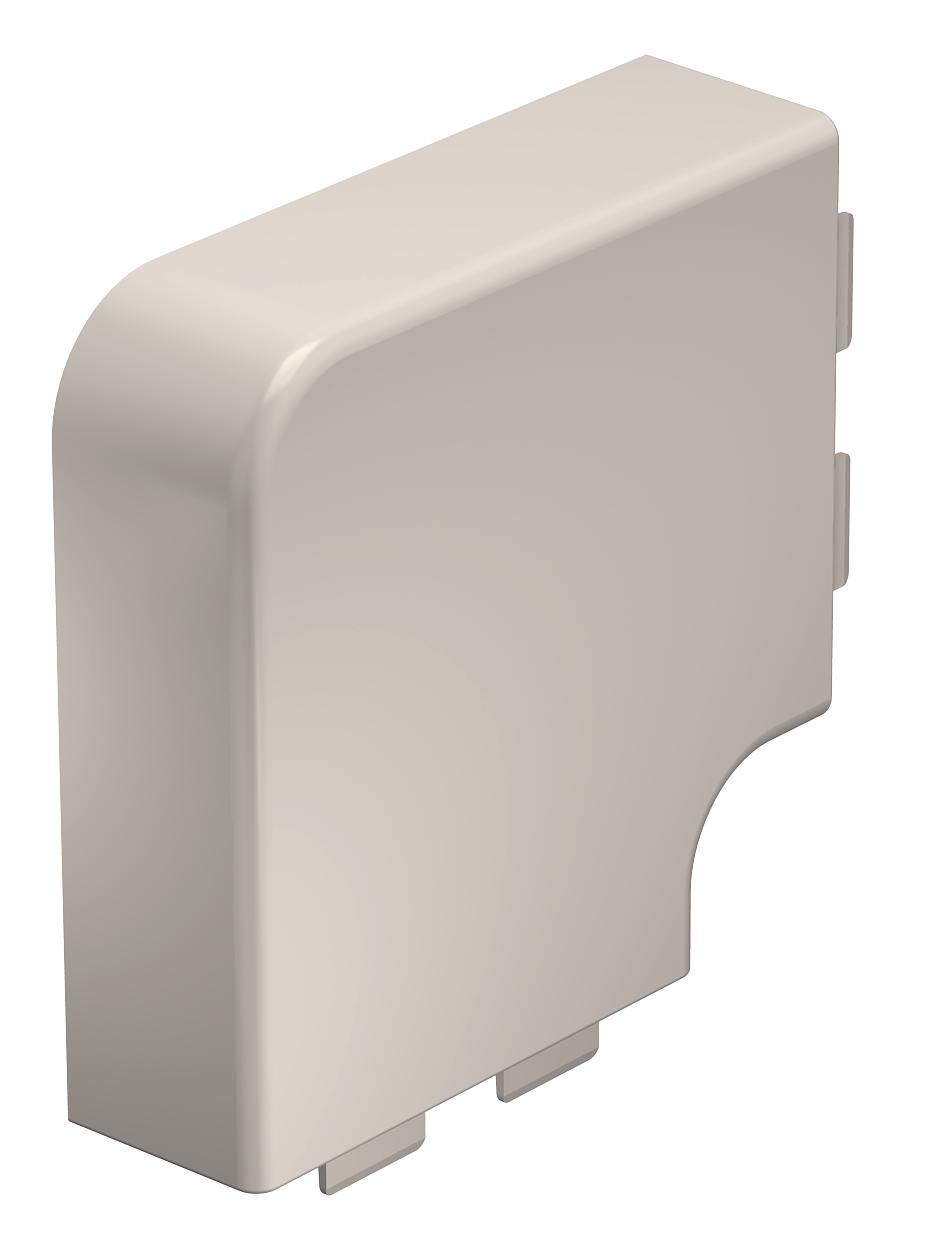

Flat angle cover, trunking type WDK 40110

Item no. 6161324 | EAN 4012196107834

110 mm
Product description
Product description
Flat angle hood for changing the direction of the WDK trunking.
Technical data

Technical data

Angle range, max. 90 mm
Angle range, min. 90 mm
Antibacterial treatment no
Colour Cream; RAL 9001
Dimension 40x110mm
Dimension a 110 mm
Dimension H 110 mm
Fastening type Lockable
for duct dimension 40 x 110
Halogen-free no
Height 40 mm
Length 110 mm
Maintain electrical functions no
Material Polyvinylchloride
Permitted temperature range, max. 60 °C
Permitted temperature range, min. -5 °C
Protection rating IP30
Protection rating IK code IK04
Protective film no
Trunking depth 40 mm
Version for Hood fitting
Width 110 mm
All types

All types

Types Dimension H Colour Item no. Quantity SSU
WDK HF40110GR 110 mm Stone grey; RAL 7030 6021743
2 piece
WDK HF40110CW 110 mm Cream; RAL 9001 6161324
2 piece
WDK HF40110LGR 110 mm Light grey; RAL 7035 6183360
2 piece
WDK HF40110RW 110 mm Pure white; RAL 9010 6192874
2 piece
Downloads

Download

EU declaration of conformity WDK HF40110CW / 6161324 , 0.13MB , pdf
Download
UK Declaration of Conformity WDK HF40110CW / 6161324 , 0.14MB , pdf
Download

No invitation to tender text is available for this product.
