Flat angle cover, trunking type WDK 40060 | 60 | Light grey; RAL 7035
morepic-1 morepic-2

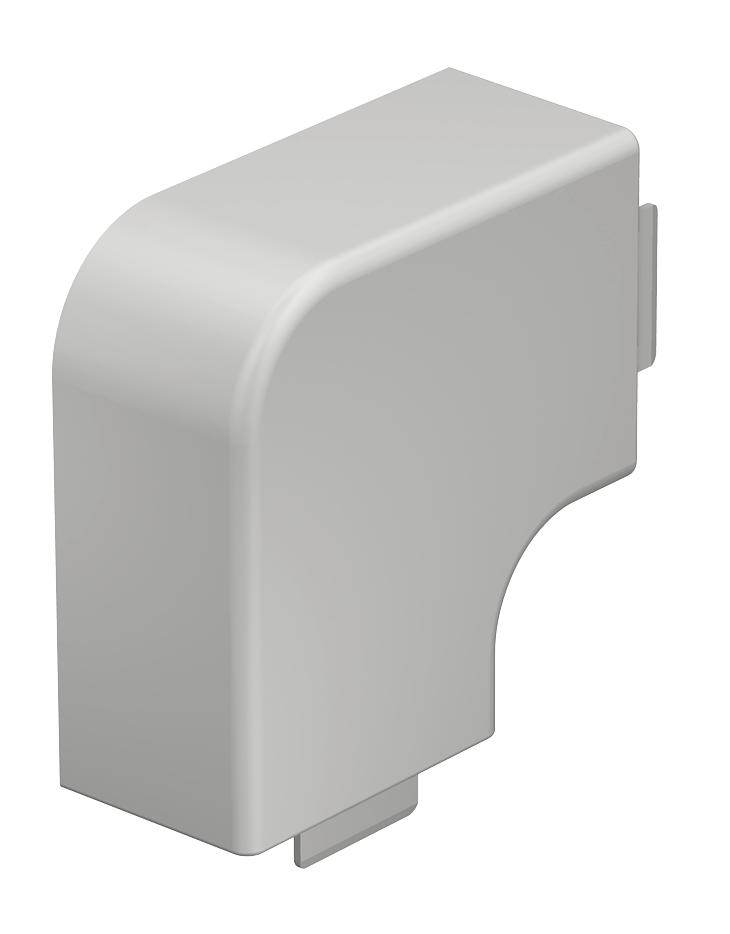

Flat angle cover, trunking type WDK 40060

Item no. 6183344 | EAN 4012196673698

60 mm
Product description
Product description
Flat angle hood for changing the direction of the WDK trunking.
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
Technical data

Technical data

Angle range, max. 90 mm
Angle range, min. 90 mm
Antibacterial treatment no
Colour Light grey; RAL 7035
Dimension 40x60mm
Dimension a 101 mm
Dimension H 60 mm
Fastening type Lockable
for duct dimension 40 x 60
Halogen-free no
Height 40 mm
Length 101 mm
Maintain electrical functions no
Material Polyvinylchloride
Permitted temperature range, max. 60 °C
Permitted temperature range, min. -5 °C
Protection rating IP30
Protection rating IK code IK04
Protective film no
Trunking depth 40 mm
Version for Hood fitting
Width 65 mm
All types

All types

Types Dimension H Colour Item no. Quantity SSU
WDK HF40060GR 60 mm Stone grey; RAL 7030 6021735
2 piece
WDK HF40060CW 60 mm Cream; RAL 9001 6161308
2 piece
WDK HF40060LGR 60 mm Light grey; RAL 7035 6183344
2 piece
WDK HF40060RW 60 mm Pure white; RAL 9010 6192858
2 piece
