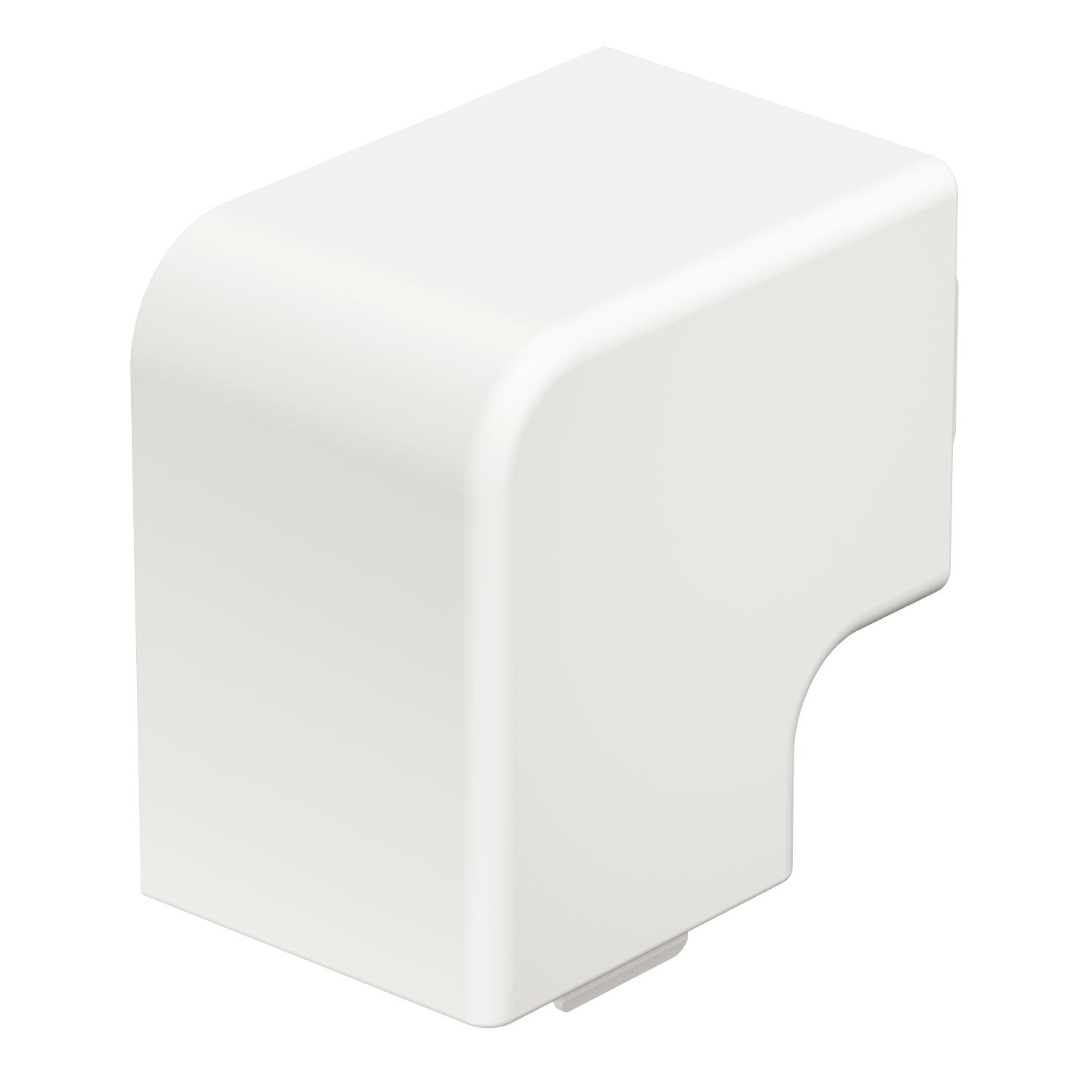

Flat angle cover, trunking type WDK 40040
Item no. 6192831 | EAN 4012196796939
- Product description
-
Product descriptionFlat angle cover for changing the direction of the WDK trunking.
-
- Technical data
-
Technical data
Angle range, max. 90 mm Angle range, min. 90 mm Antibacterial treatment no Colour Pure white; RAL 9010 CO₂ Footprint (GWP) Cradle-to-Gate 8,11 kg CO₂e / 1 Piece Dimension 40x40mm Dimension a 63 mm Dimension H 40 mm Fastening type Lockable for duct dimension 40 x 40 Halogen-free no Height 40 mm Length 63 mm Maintain electrical functions no Material Polyvinylchloride Permitted temperature range, max. 60 °C Permitted temperature range, min. -5 °C Protection rating IP30 Protection rating IK code IK04 Protective film no Trunking depth 40 mm Version for Hood fitting Width 40 mm - All types
- Downloads
-
Data sheet WDK HF40040RW / 6192831 , 0.18MB , pdfCatalogue Cable routing systems , 17.62MB , pdfEU declaration of conformity WDK HF40040RW / 6192831 , 0.13MB , pdfUK Declaration of Conformity WDK HF40040RW / 6192831 , 0.14MB , pdfREACH Declaration of conformity WDK HF40040RW / 6192831 , 0.12MB , pdfRoHS Declaration of conformity WDK HF40040RW / 6192831 , 0.28MB , pdfMounting instructions Leitungsführungskanal WDK , 6.19MB , pdfMounting instructions Mounting instructions Mounting aid WDK , 0.07MB , pdfSafety data sheet PVC_Material data , 0.02MB , pdfNo invitation to tender text is available for this product.
