Flat angle cover, trunking type WDK 30045 | 45 | Light grey; RAL 7035
morepic-1 morepic-2

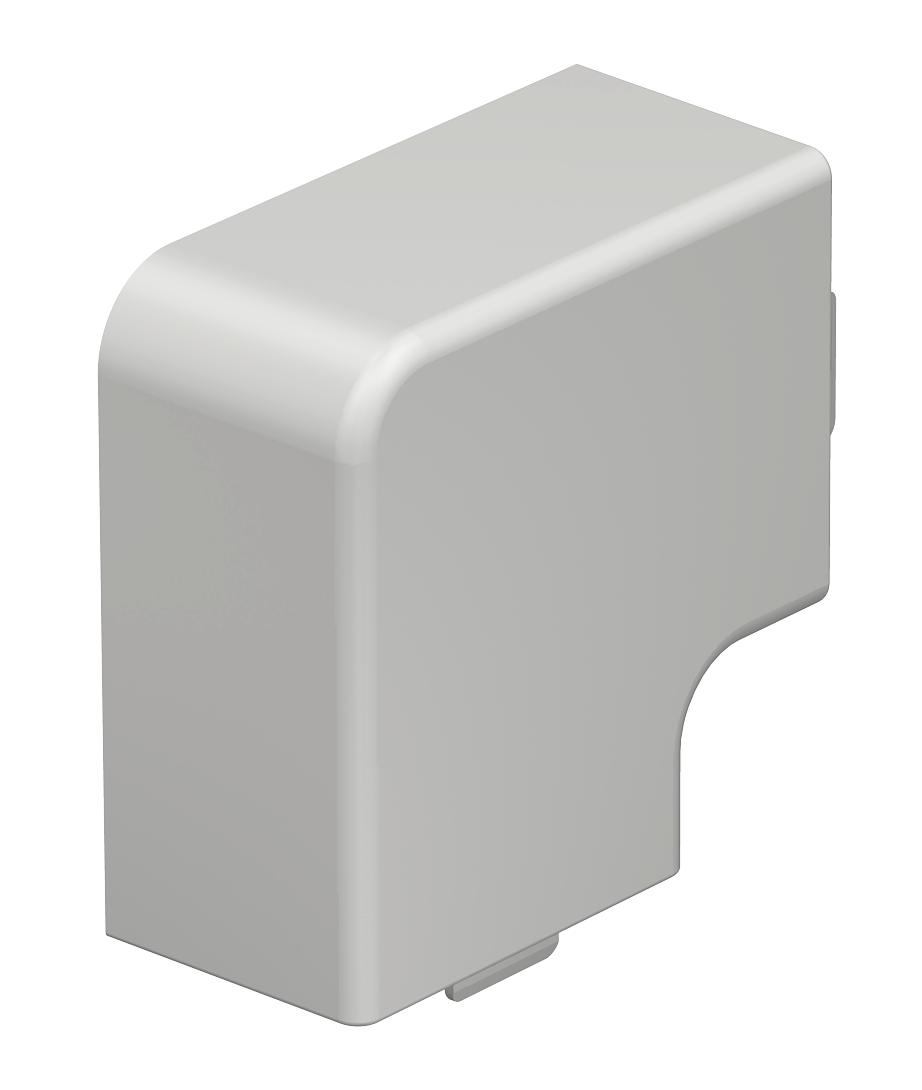

Flat angle cover, trunking type WDK 30045

Item no. 6183301 | EAN 4012196673575

45 mm
Product description
Product description
Flat angle hood for changing the direction of the WDK trunking.
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
Technical data

Technical data

Angle range, max. 90 mm
Angle range, min. 90 mm
Antibacterial treatment no
Colour Light grey; RAL 7035
Dimension 30x45mm
Dimension a 68 mm
Dimension H 45 mm
Fastening type Lockable
for duct dimension 30 x 45
Halogen-free no
Height 30 mm
Length 68 mm
Maintain electrical functions no
Material Polyvinylchloride
Permitted temperature range, max. 60 °C
Permitted temperature range, min. -5 °C
Protection rating IP30
Protection rating IK code IK04
Protective film no
Trunking depth 30 mm
Version for Hood fitting
Width 45 mm
All types

All types

Types Dimension H Colour Item no. Quantity SSU
WDK HF30045GR 45 mm Stone grey; RAL 7030 6158676
4 piece
WDK HF30045CW 45 mm Cream; RAL 9001 6161286
4 piece
WDK HF30045LGR 45 mm Light grey; RAL 7035 6183301
4 piece
WDK HF30045RW 45 mm Pure white; RAL 9010 6192823
4 piece
Downloads

Download

Download

EU declaration of conformity WDK HF30045LGR / 6183301 , 0.13MB , pdf
Download
UK Declaration of Conformity WDK HF30045LGR / 6183301 , 0.14MB , pdf
Download
REACH Declaration of conformity WDK HF30045LGR / 6183301 , 0.12MB , pdf
Download
RoHS Declaration of conformity WDK HF30045LGR / 6183301 , 0.12MB , pdf
Download

Download
Download

No invitation to tender text is available for this product.
