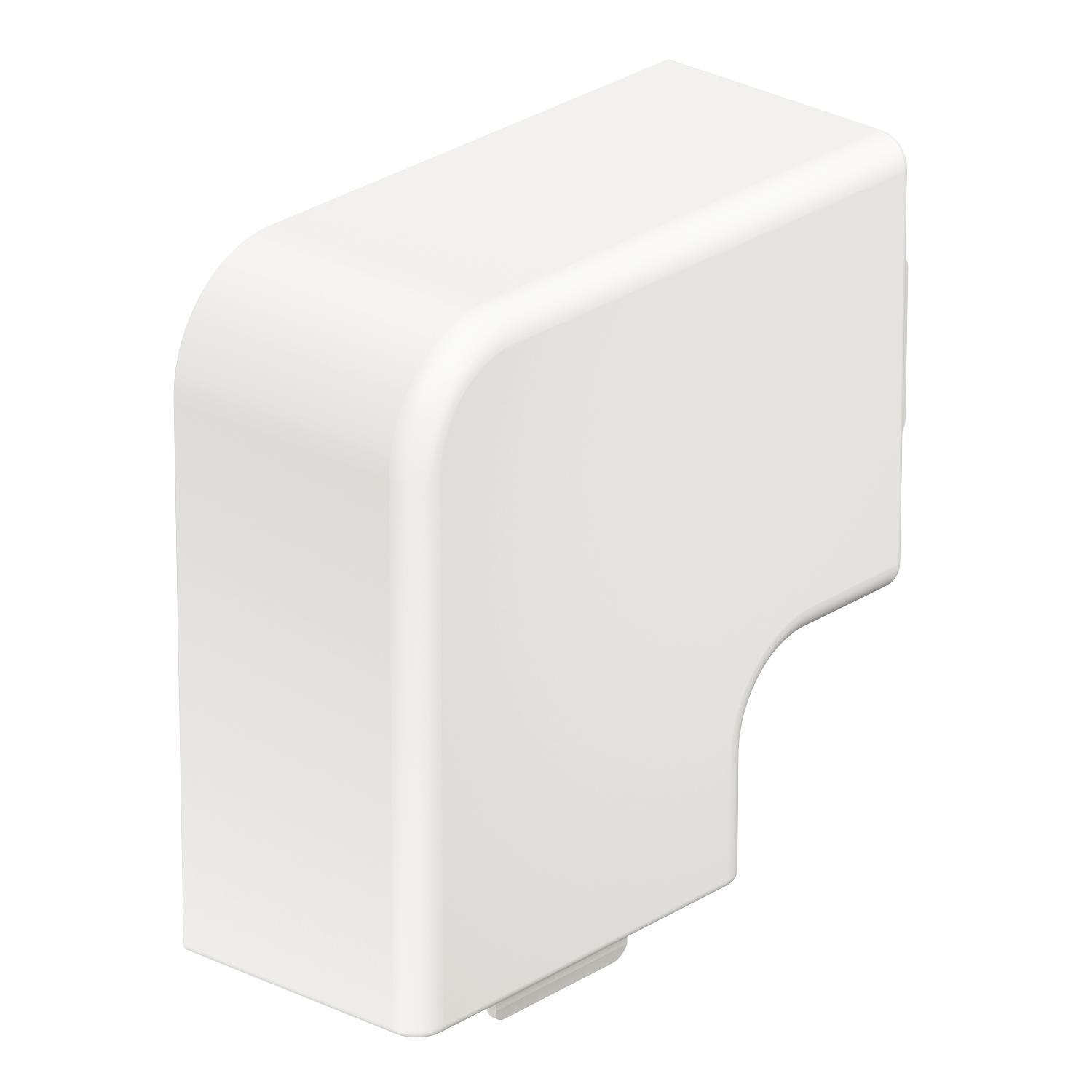

Flat angle cover, trunking type WDK 25040
Item no. 6192793 | EAN 4012196796816
- Product description
-
Product descriptionFlat angle hood for changing the direction of the WDK trunking.
- Technical data
-
Technical data
Angle range, max. 90 mm Angle range, min. 90 mm Antibacterial treatment no Colour Pure white; RAL 9010 CO₂ Footprint (GWP) Cradle-to-Gate 0,0731 kg CO₂e / 1 Piece Dimension 25x40mm Dimension a 63 mm Dimension H 40 mm Fastening type Lockable for duct dimension 25 x 40 Halogen-free no Height 25 mm Length 63 mm Maintain electrical functions no Material Polyvinylchloride Permitted temperature range, max. 60 °C Permitted temperature range, min. -5 °C Protection rating IP30 Protection rating IK code IK04 Protective film no Trunking depth 25 mm Version for Hood fitting Width 40 mm - All types
- Downloads
-
Data sheet WDK HF25040RW / 6192793 , 0.20MB , pdfEU declaration of conformity WDK HF25040RW / 6192793 , 0.13MB , pdfUK Declaration of Conformity WDK HF25040RW / 6192793 , 0.14MB , pdfREACH Declaration of conformity WDK HF25040RW / 6192793 , 0.12MB , pdfRoHS Declaration of conformity WDK HF25040RW / 6192793 , 0.28MB , pdfNo invitation to tender text is available for this product.
