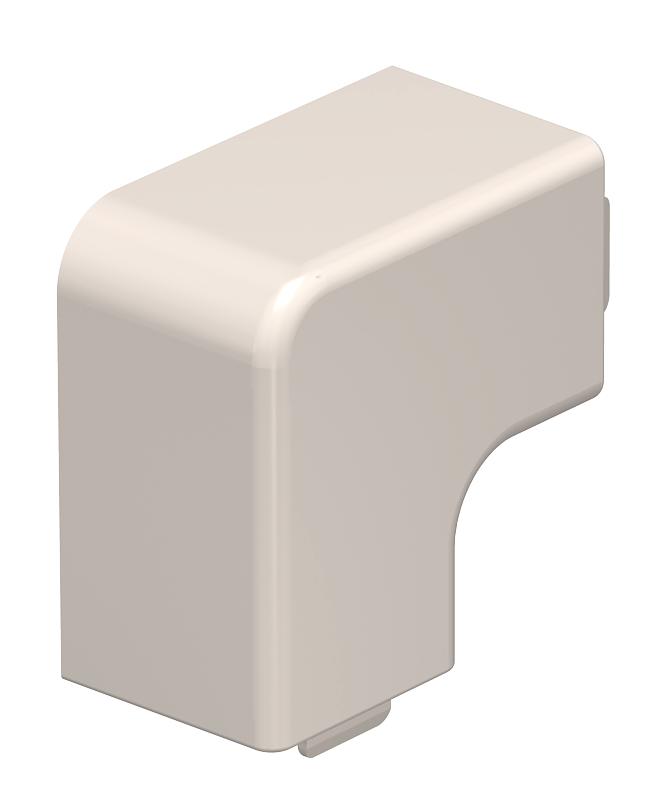

Flat angle cover, trunking type WDK 25025
Item no. 6161235 | EAN 4012196582433
- Product description
-
Product description
Flat angle cover for changing the direction of the WDK trunking.
-
- Technical data
-
Technical data
Angle range, max. 90 mm Angle range, min. 90 mm Antibacterial treatment no Colour Cream; RAL 9001 Dimension 25x25mm Fastening type Lockable for duct dimension 25 x 25 Halogen-free no Maintain electrical functions no Material Polyvinylchloride Permitted temperature range, max. 60 °C Permitted temperature range, min. -5 °C Protection rating IP30 Protection rating IK code IK04 Protective film no Trunking depth 25 mm Version for Hood fitting Dimensions
Dimension a 48 mm Dimension H 25 mm Height 25 mm Length 48 mm Width 25 mm - All types
- Downloads
-
Data sheet WDK HF25025CW / 6161235 , 0.19MB , pdfCatalogue Cable routing systems , 17.62MB , pdfDeclaration of conformity WDK HF25025CW / 6161235 , 0.13MB , pdfUK Declaration of Conformity WDK HF25025CW / 6161235 , 0.14MB , pdfSafety data sheet PVC_Material data , 0.02MB , pdfNo invitation to tender text is available for this product.
