Flat angle cover, trunking type WDK 15030 | 30 | Stone grey; RAL 7030
morepic-1 morepic-2

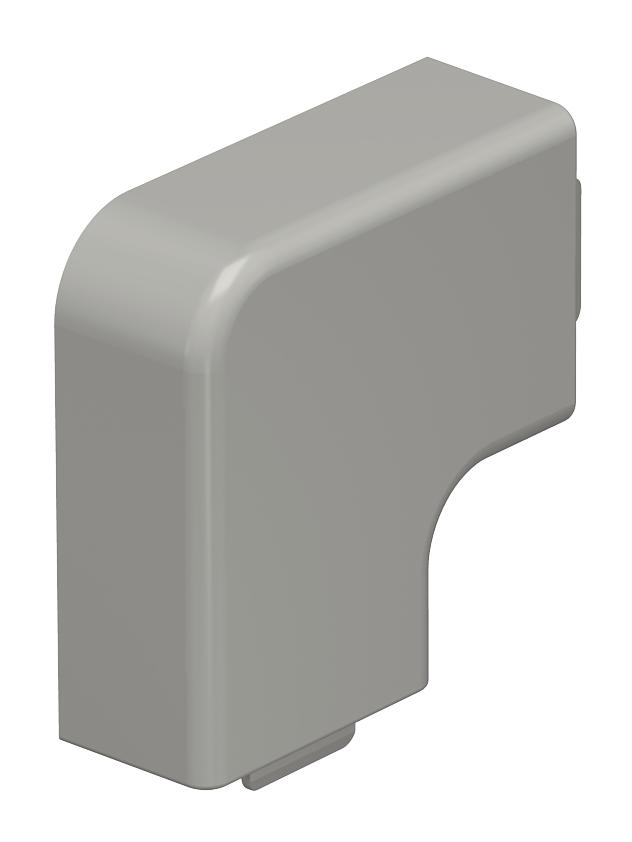

Flat angle cover, trunking type WDK 15030

Item no. 6158595 | EAN 4012196582013

30 mm
Product description
Product description
Flat angle hood for changing the direction of the WDK trunking.
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
Technical data

Technical data

Angle range, max. 90 mm
Angle range, min. 90 mm
Antibacterial treatment no
Colour Stone grey; RAL 7030
Dimension 15x30mm
Dimension a 53 mm
Dimension H 30 mm
Fastening type Lockable
for duct dimension 15 x 30
Halogen-free no
Height 17,5 mm
Length 53 mm
Maintain electrical functions no
Material Polyvinylchloride
Permitted temperature range, max. 60 °C
Permitted temperature range, min. -5 °C
Protection rating IP30
Protection rating IK code IK04
Protective film no
Trunking depth 15 mm
Version for Hood fitting
Width 30 mm
All types

All types

Types Dimension H Colour Item no. Quantity SSU
WDK HF15030GR 30 mm Stone grey; RAL 7030 6158595
4 piece
WDK HF15030CW 30 mm Cream; RAL 9001 6161219
4 piece
WDK HF15030RW 30 mm Pure white; RAL 9010 6192750
4 piece
