Flat angle cover, trunking type WDK 10020 | 20 | Pure white; RAL 9010
morepic-1 morepic-2

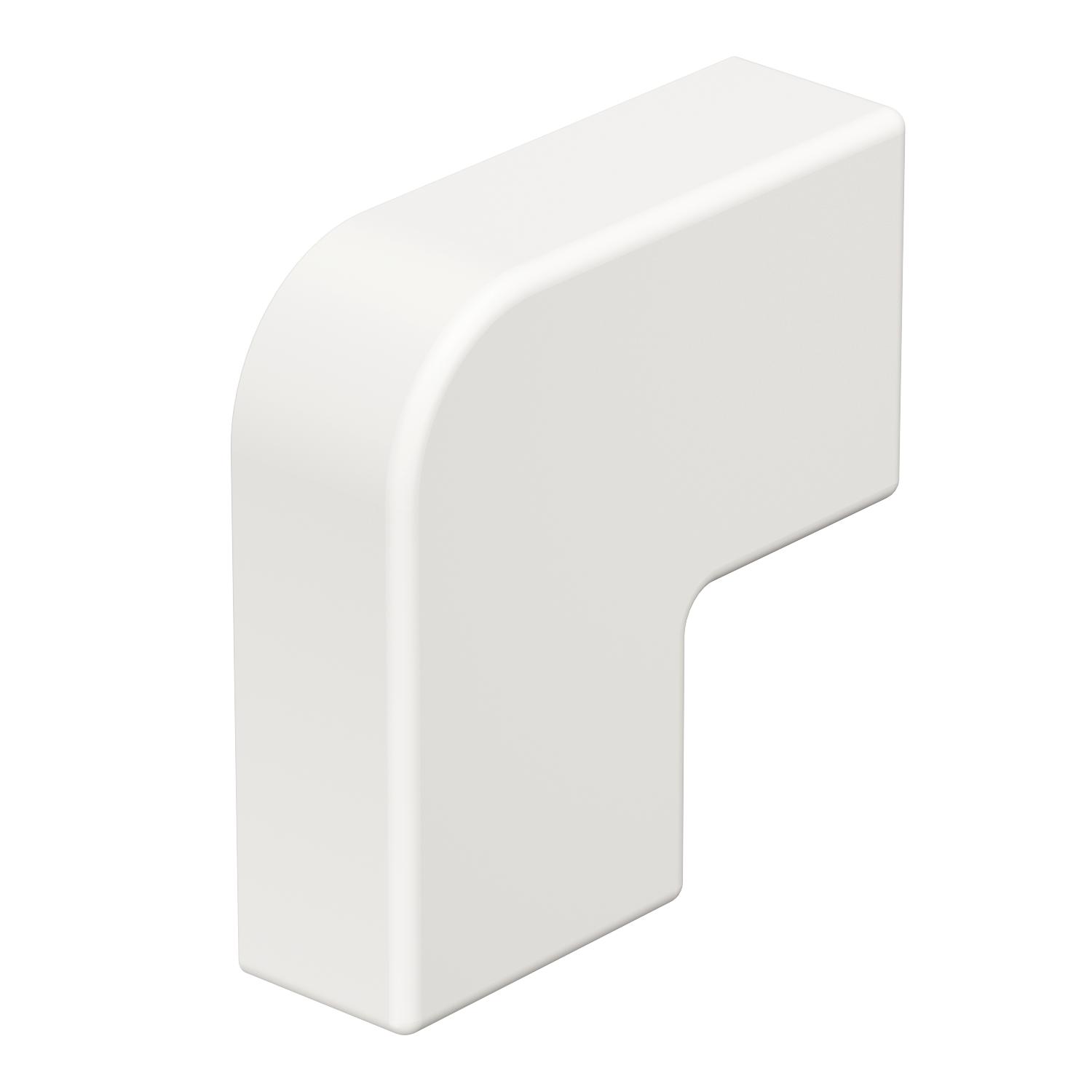

Flat angle cover, trunking type WDK 10020

Item no. 6154212 | EAN 4012196491896

20 mm
Product description
Product description
Flat angle hood for changing the direction of the WDK trunking.
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
Technical data

Technical data

Angle range, max. 90 mm
Angle range, min. 90 mm
Antibacterial treatment no
Colour Pure white; RAL 9010
Dimension 10x20mm

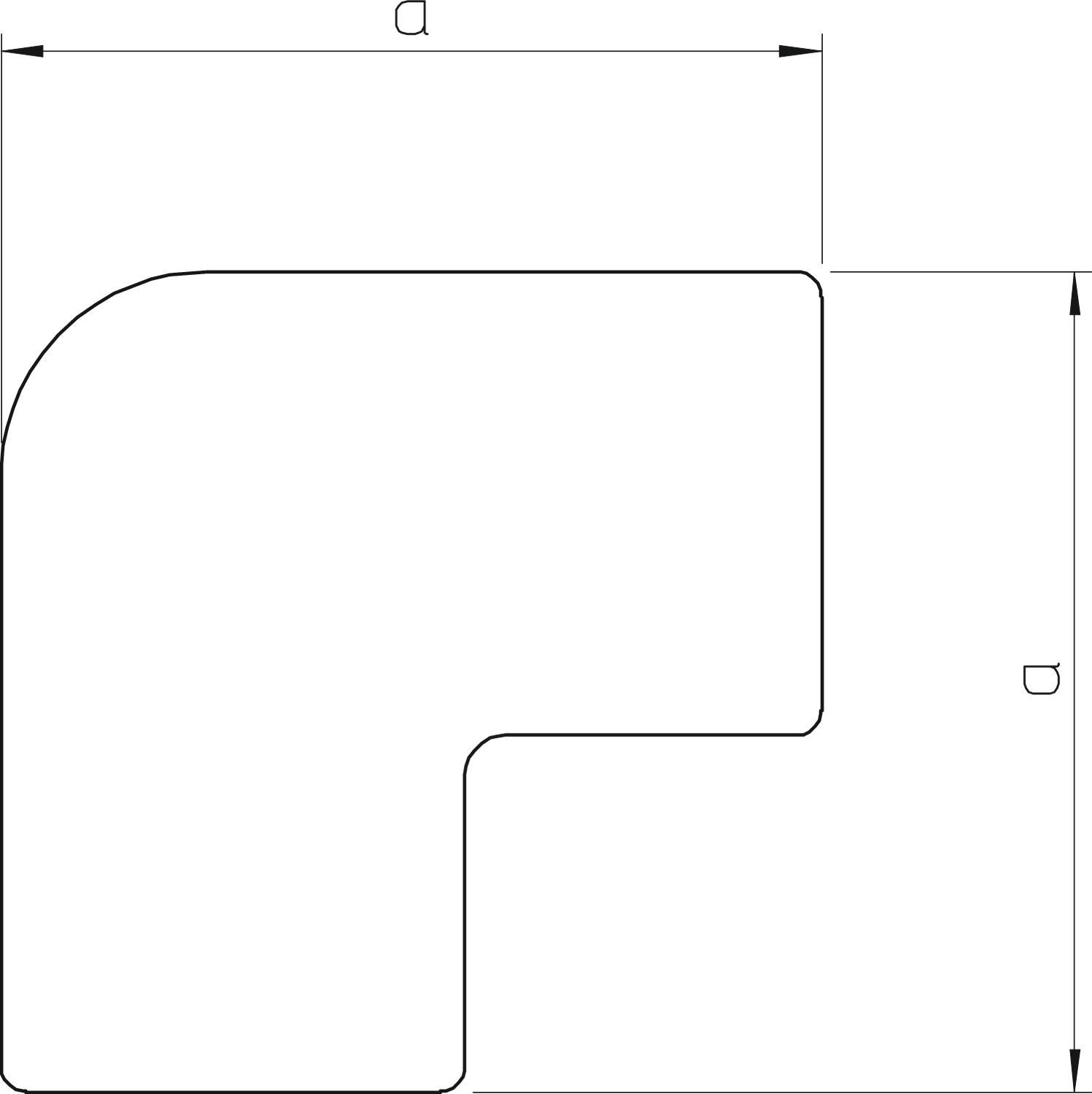

Dimension a 40 mm
Dimension H 20 mm
Fastening type Lockable
for duct dimension 10 x 20
Halogen-free no
Height 10 mm
Length 40 mm
Maintain electrical functions no
Material Polyvinylchloride
Permitted temperature range, max. 60 °C
Permitted temperature range, min. -5 °C
Protection rating IP30
Protection rating IK code IK04
Protective film no
Trunking depth 10 mm
Version for Hood fitting
Width 22 mm
All types

All types

Types Dimension H Colour Item no. Quantity SSU
WDK HF10020CW 20 mm Cream; RAL 9001 6152600
4 piece
WDK HF10020RW 20 mm Pure white; RAL 9010 6154212
4 piece
