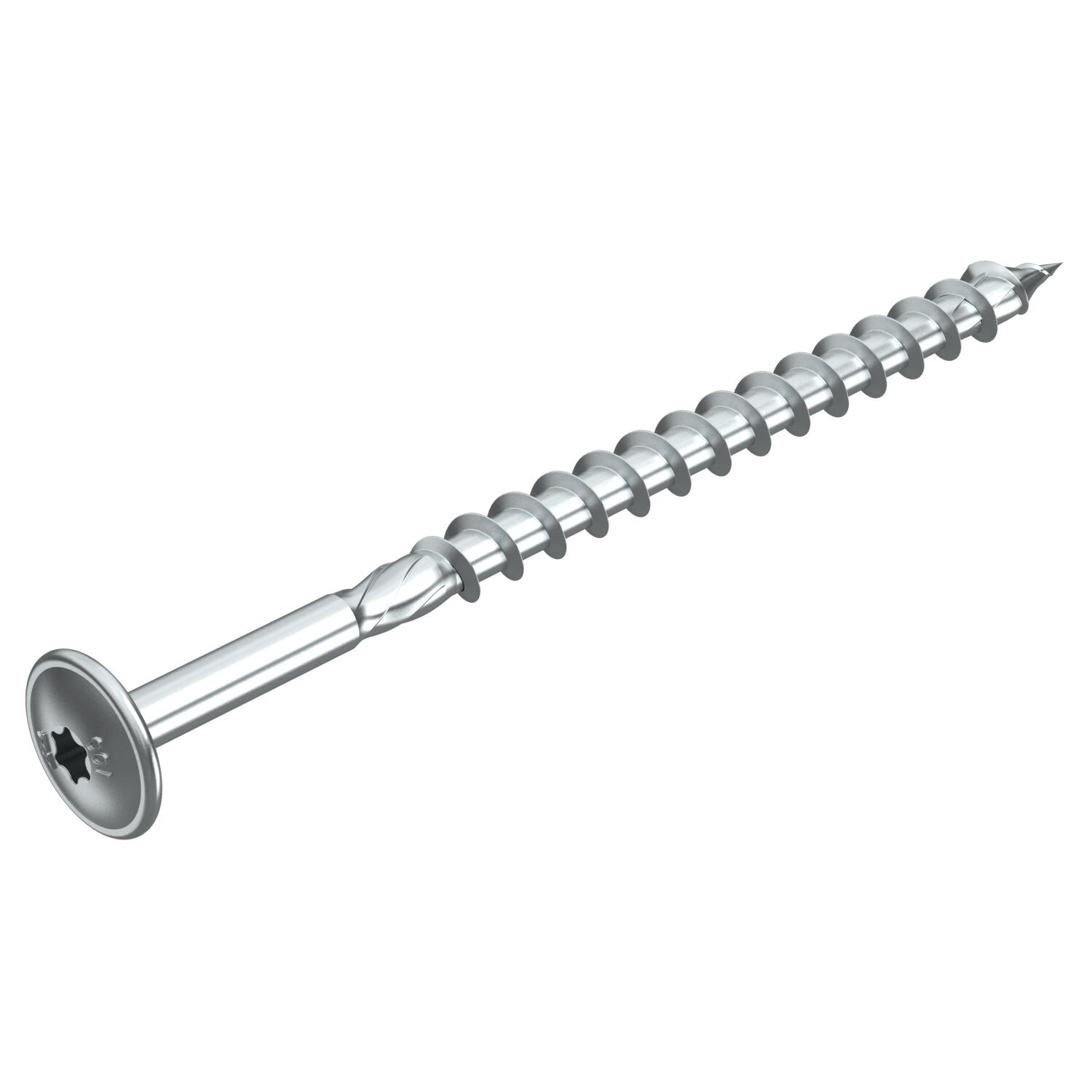

Flange head screw HT 6

Item no. 3498130 | EAN 4012196563920

Item no. / Types

Length

Dimension D	6 mm

Product description

Product description

Self-tapping wood screw for fireproof fastening of cable systems for the maintenance of electrical function according to DIN 4102 Part 12 on supporting wooden structures. The flange head shape allows installation without an additional washer.

Technical data

Technical data

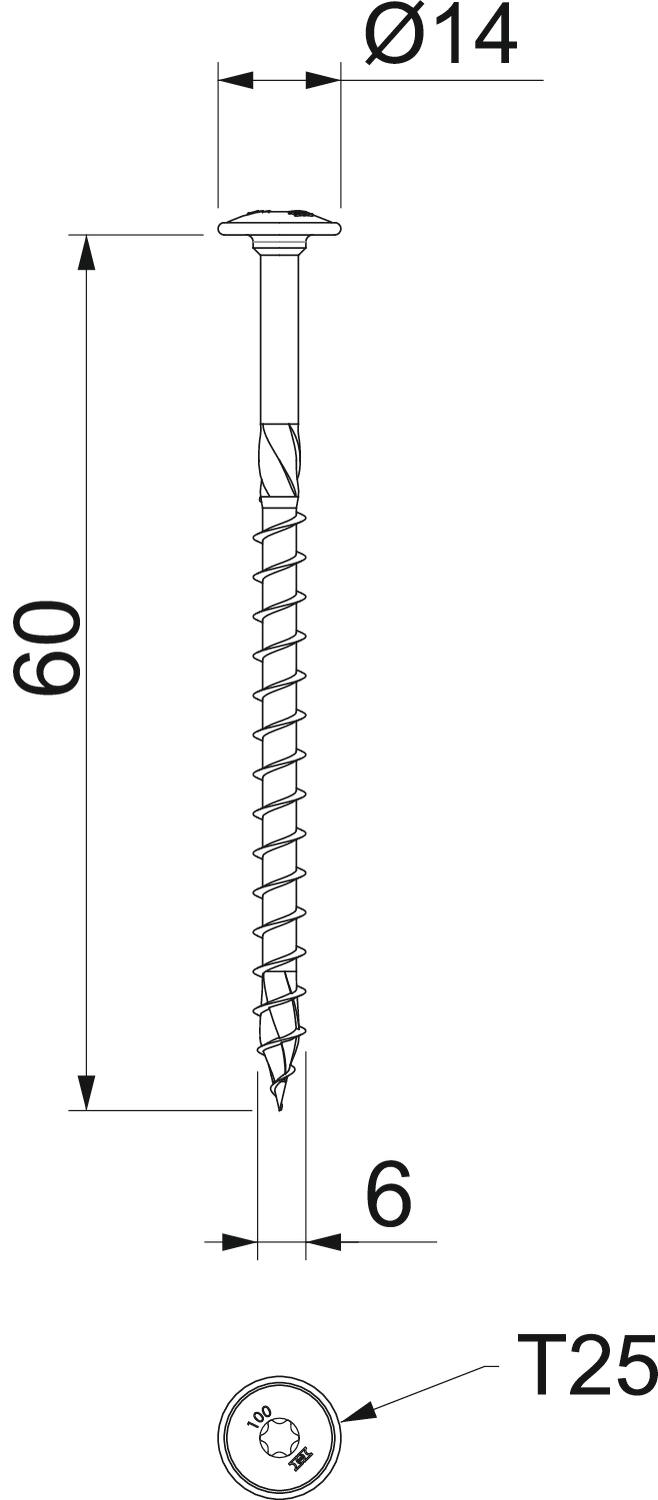

Dimension	6x60
Dimension D	6 mm
Dimension L	60 mm
Hardened	yes
Head diameter	14 mm
Head shape	Plate head

Length	60 mm
Material	Steel
Screw system	Torx
Shank diameter	4,5 mm
Surface	Electrogalvanized
Two-compartment	no

All types

All types

Types	Length	Dimension D	Item no.	Quantity	SSU
HT 6x60 TD	60 mm	6 mm	3498130	piece	200 piece
HT 6x80 TD	80 mm	6 mm	3498132	piece	100 piece
HT 6x100 TD	100 mm	6 mm	3498134	piece	100 piece
HT 6x120 TD	120 mm	6 mm	3498136	piece	100 piece
