Flange head screw HT 10

Item no. 3498144 | EAN 4012196563982

Item no. / Types

Length

Dimension D	10 mm

Product description

Product description

Self-tapping wood screw for fireproof fastening of cable systems for the maintenance of electrical function according to DIN 4102 Part 12 on supporting wooden structures. The flange head shape allows installation without an additional washer.

Technical data

Technical data

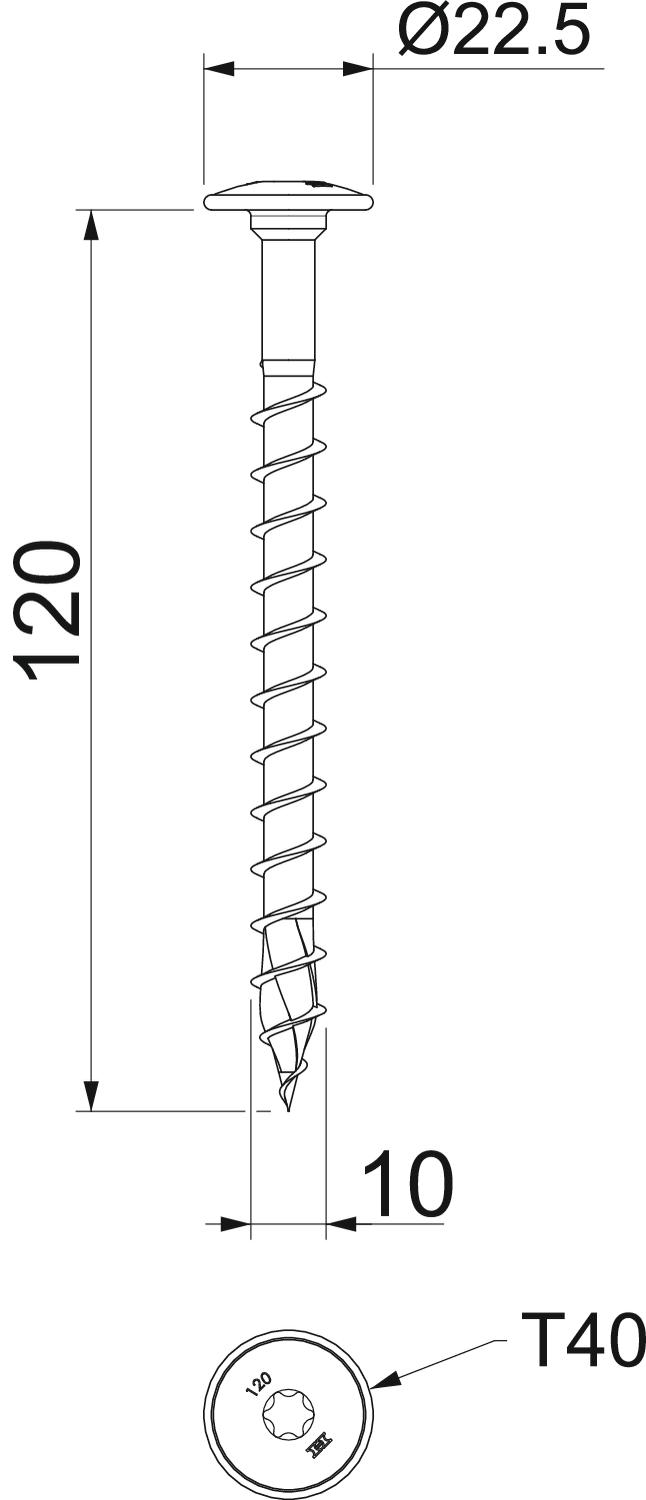

Dimension	10x120
Dimension D	10 mm
Dimension L	120 mm
Hardened	yes
Head diameter	22,5 mm
Head shape	Plate head

Length	120 mm
Material	Steel
Screw system	Torx
Shank diameter	7 mm
Surface	Electrogalvanized
Two-compartment	no

All types

All types

Types	Length	Dimension D	Item no.	Quantity	SSU
HT 10x80 TD	80 mm	10 mm	3498140	piece	50 piece
HT 10x100 TD	100 mm	10 mm	3498142	piece	50 piece
HT 10x120 TD	120 mm	10 mm	3498144	piece	50 piece
HT 10x140 TD	140 mm	10 mm	3498146	piece	50 piece

Accessories

Mounting accessories

Products	Types	Item no.	Quantity	SSU
Fire protection plate, single perforated	GLB-PG1	7205460	piece	1 piece
Fire protection plate, single perforated	GLB-PG2	7205462	piece	1 piece
Fire protection plate, double perforated	GLB-PG3	7205464	piece	1 piece
