Fire protection plate, single perforated 150 | 150

morepic-1

morepic-2

Fire protection plate, single perforated

Item no. 7205460 | EAN 4012196814176

Item no. / Types

Length

Dimension L

Product description

Product description

Perforated fire protection plate (material class A1) as effective panelling measure for fastening on supporting wooden components for the maintenance of electrical functionality according to DIN 4102 Part 12. Made of fibre-glass light concrete which is resistant to water and frost.

Technical data

Technical data

Colour	Grey
Dimension	150x120x20

Material	Fibreglass lightweight concrete
Type of accessory	Fire protection plate

Dimensions

Dimension L	150 mm
Height	20 mm

Length	150 mm
Width	120 mm

All types

All types

Types	Length	Dimension L	Item no.	Quantity	SSU
GLB-PG1	150 mm	150 mm	7205460	piece	1 piece
GLB-PG2	190 mm	190 mm	7205462	piece	1 piece

Downloads

Data sheet GLB-PG1 / 7205460 , 0.16MB , pdf

Guide Fire protection in electrical engineering – A guide to fireproof building installations , 2.10MB , pdf

Brochure Zwischendeckeninstallationen , 2.70MB , pdf

Flyer GLB pre-terminated fire protection plates , 2.00MB , pdf

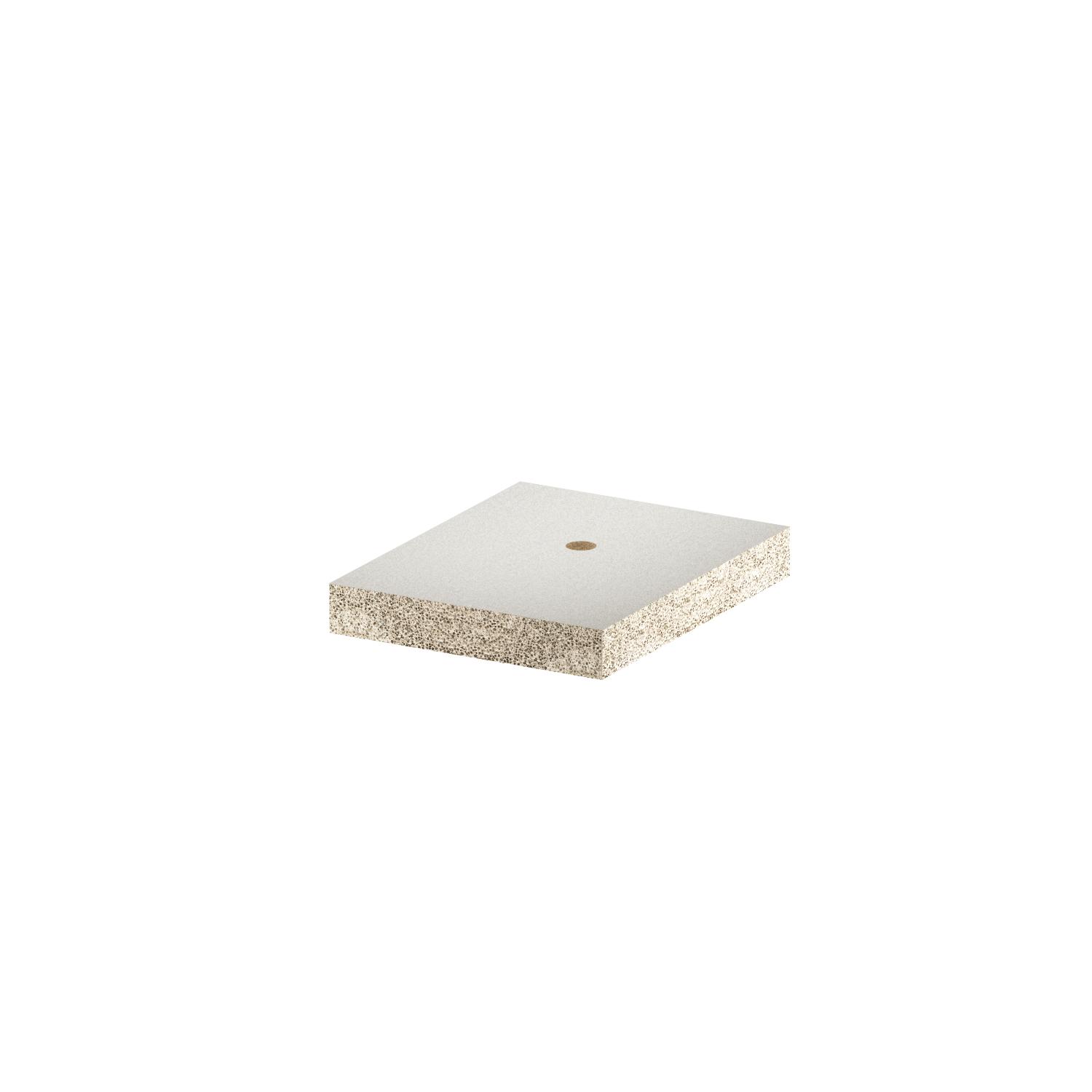

Product graphic GLB-PG1 / 7205460, 42.49 kB, jpg

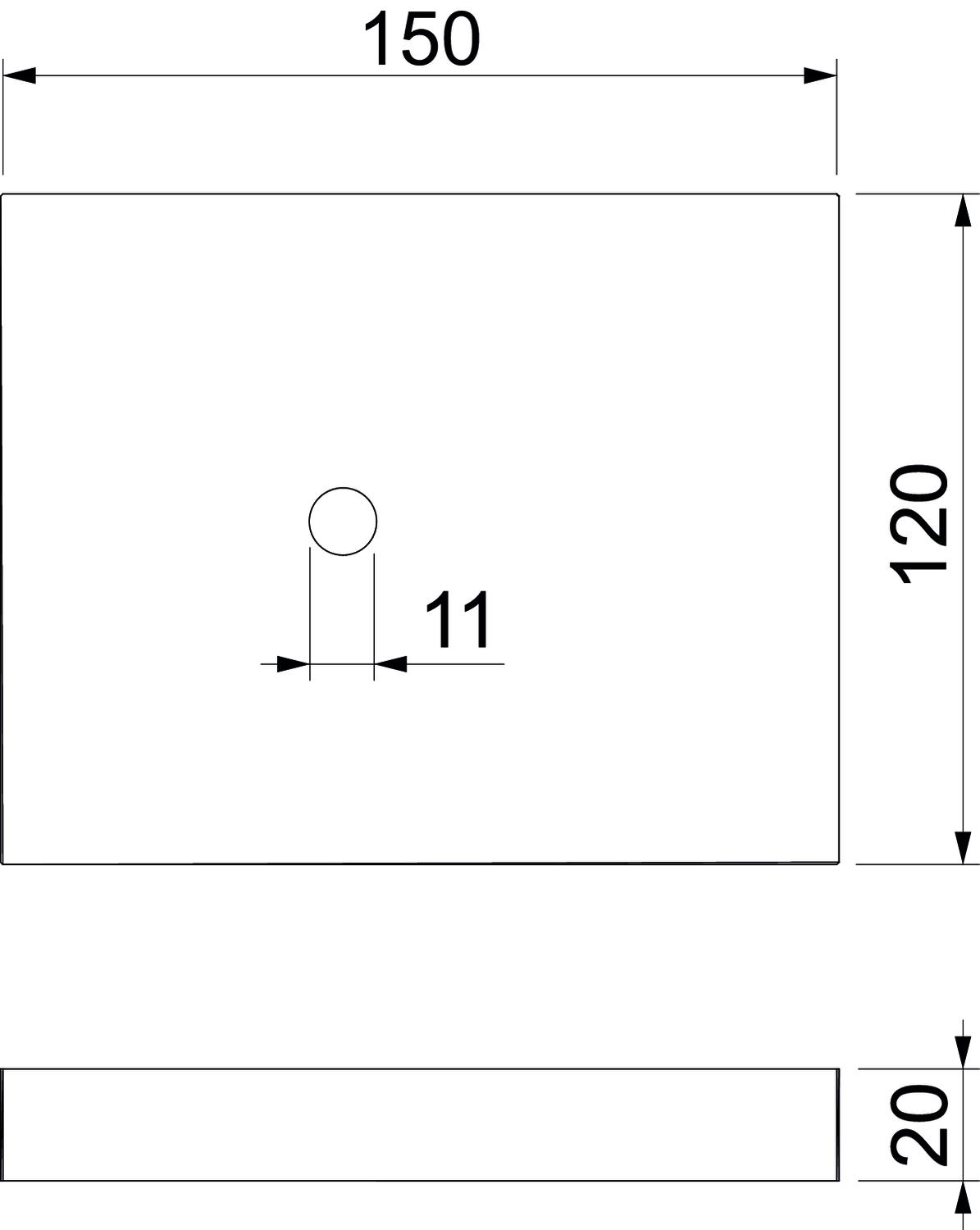

Scale drawing GLB-PG1 / 7205460, 43.64 kB, jpg

No invitation to tender text is available for this product.

7205460_KSTP1.stp, 28.27 kB
