Fire protection duct PYROLINE® Con D BSK I120/E90 1000 | 230 | 110 | 130 | 50

Fire protection duct PYROLINE® Con D BSK I120/E90

Item no. 7215216 | EAN 4012196645855

Item no. / Types

Length	1000 mm

Dimension B

Dimension b

Dimension H	130 mm

Dimension h	50 mm

Product description

Product description

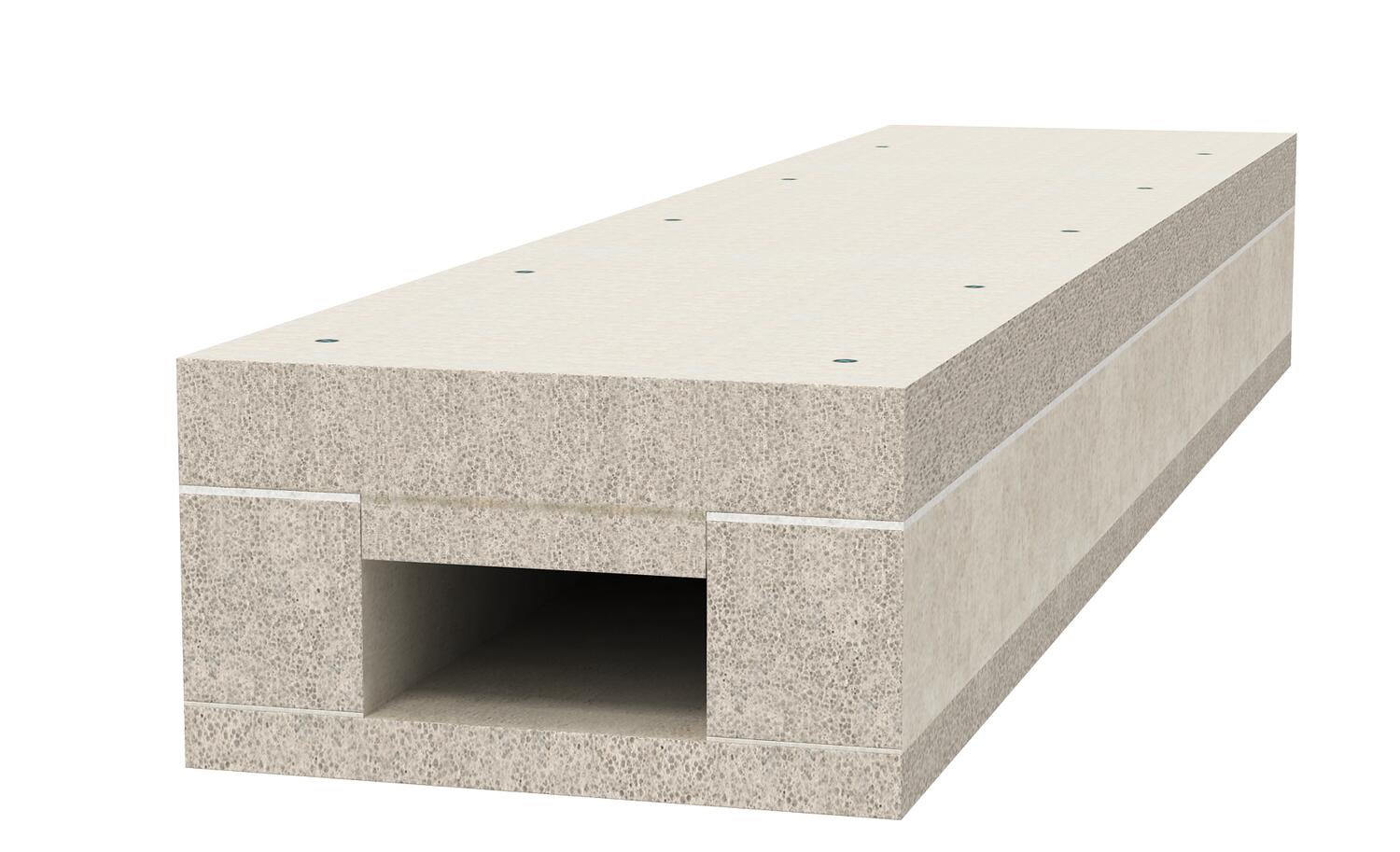

Fire protection duct made from water and frost-proof fibreglass light concrete of building material class A1 according to EN 13501-1 for fireproof laying of cables in rescue and emergency routes, and for the maintenance of electrical functionality of safety-relevant systems. Classification I120 as I duct according to DIN 4102 Part 11 and classification E90 as E duct according to DIN 4102 Part 12.

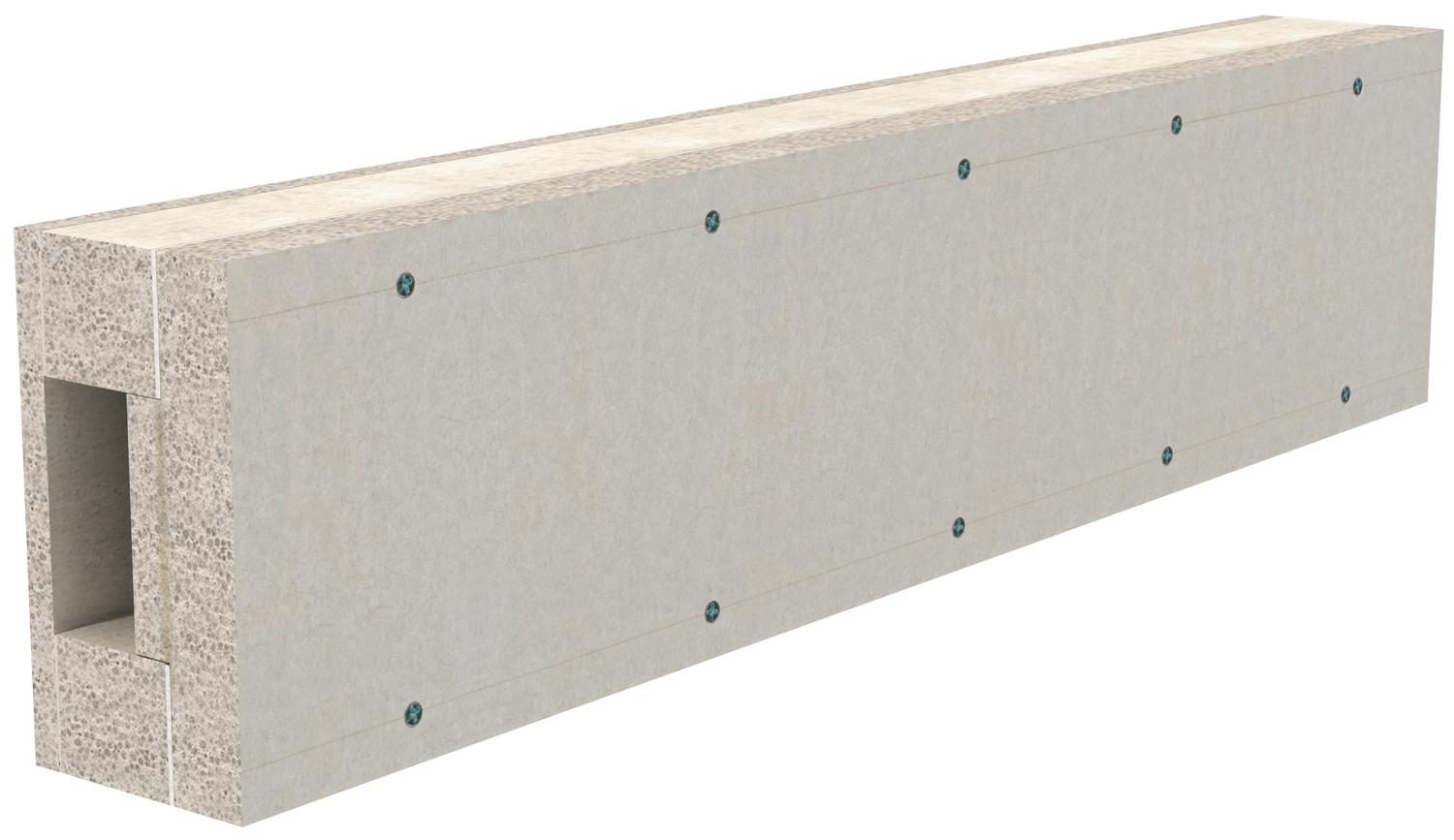

Mounting of the duct directly on walls or under ceilings.

Including countersunk head screws and sealing strips.

Technical data

Technical data

Colour	Grey
Cover fastening	Screw
Dimension	50x110
Fire resistance class E − function maintenance	90
Fire resistance class I − installation duct	120
Jacketing	Without

Material	Fibreglass lightweight concrete
Material of the insulation	Glass-fibre lightweight concrete
Number of flammable sides	3
Partitions possible	yes
Usable cross-section	5500 mm²
With perforation	no

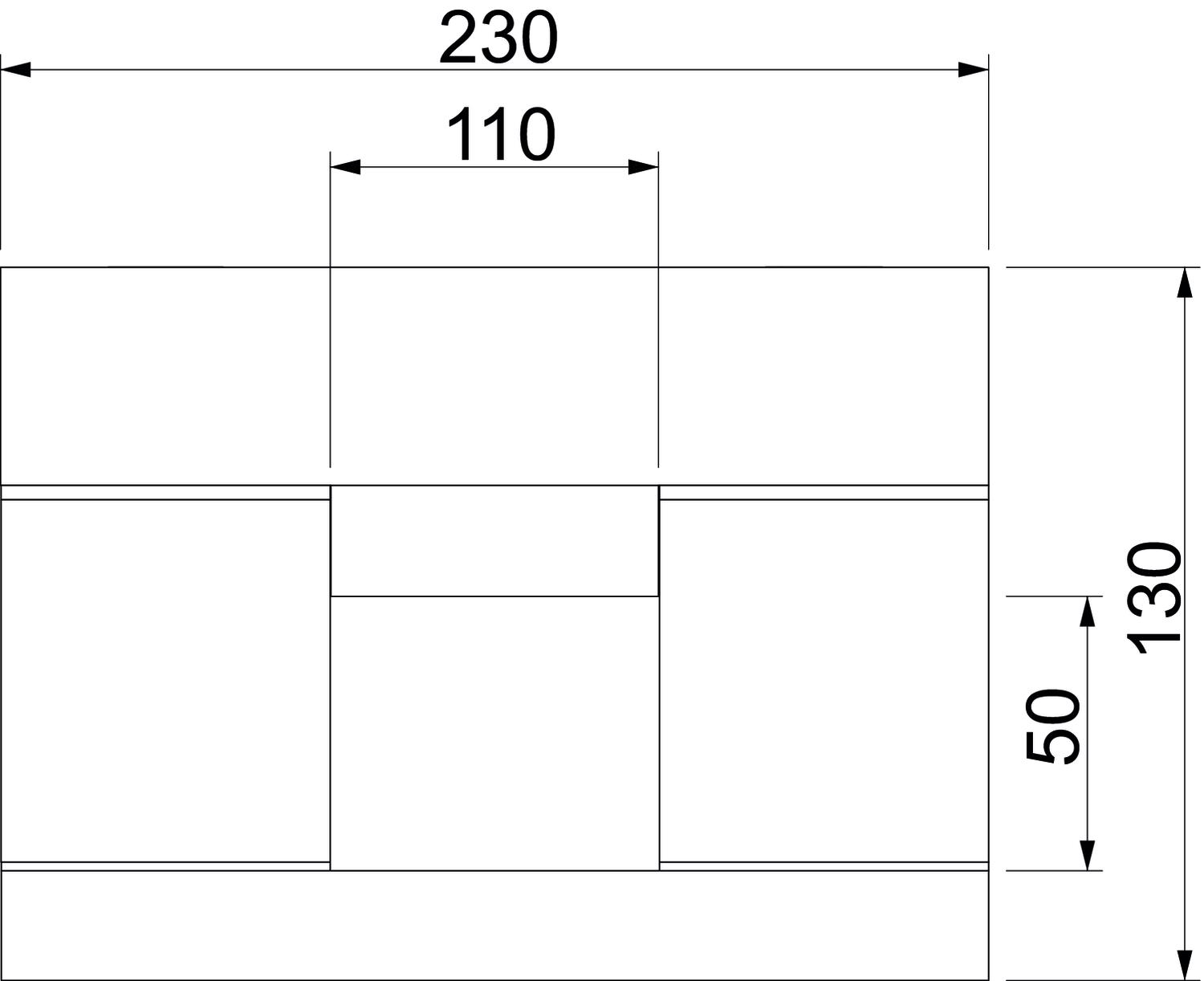

Dimensions

Dimension B	230 mm
Dimension b	110 mm
Dimension h	50 mm
Dimension H	130 mm

Height	130 mm
Length	1000 mm
Width	230 mm

All types

All types

Types	Length	Dimension B	Dimension b	Dimension H	Dimension h	Item no.	Quantity	SSU
BSKD12-K0506	1000 mm	180 mm	60 mm	130 mm	50 mm	7215210	m	1 m
BSKD12-K0511	1000 mm	230 mm	110 mm	130 mm	50 mm	7215216	m	1 m
BSKD12-K0521	1000 mm	330 mm	210 mm	130 mm	50 mm	7215222	m	1 m

Accessories

System accessories

Products	Types	Item no.	Quantity	SSU

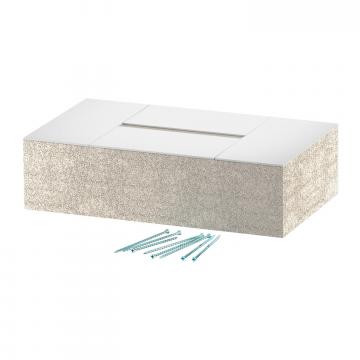

End piece for PYROLINE® Con D BSK I120/E90	BSKD12-E0511	7215272	piece	1 piece
Doubler for PYROLINE® Con fire protection duct	KAD-8040	7215464	piece	1 piece
Doubler for PYROLINE® Con fire protection duct	KAD-10040	7215462	piece	1 piece
Fire protection duct mortar	KTM	7215500	piece	1 piece
Separating bracket for wall mounting	BSKD-W0511	7215312	piece	25 piece
Separating clamp for ceiling mounting	BSKD-B0511	7215356	piece	25 piece
Cable bracket, vertical, for PYROLINE® fire protection ducts, height 20 mm	LHS 20	7215288	piece	10 piece
Cable bracket, vertical, for PYROLINE® fire protection ducts, height 40 mm	LHS 40	7215290	piece	10 piece
Identification plate	KS-K DE	7214734	piece	10 piece
Identification plate for maintenance of electrical function	KS-E DE	7205423	piece	10 piece
