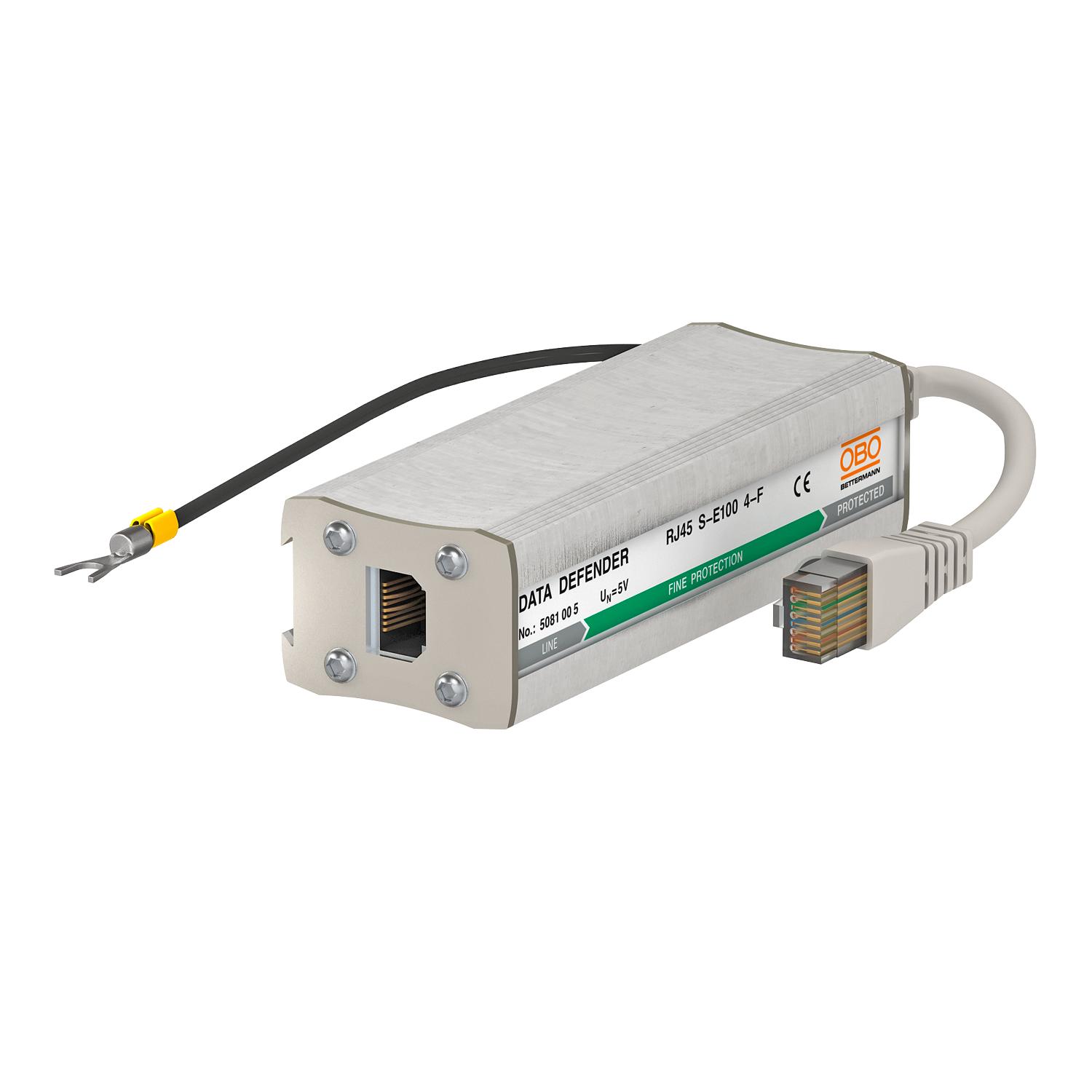

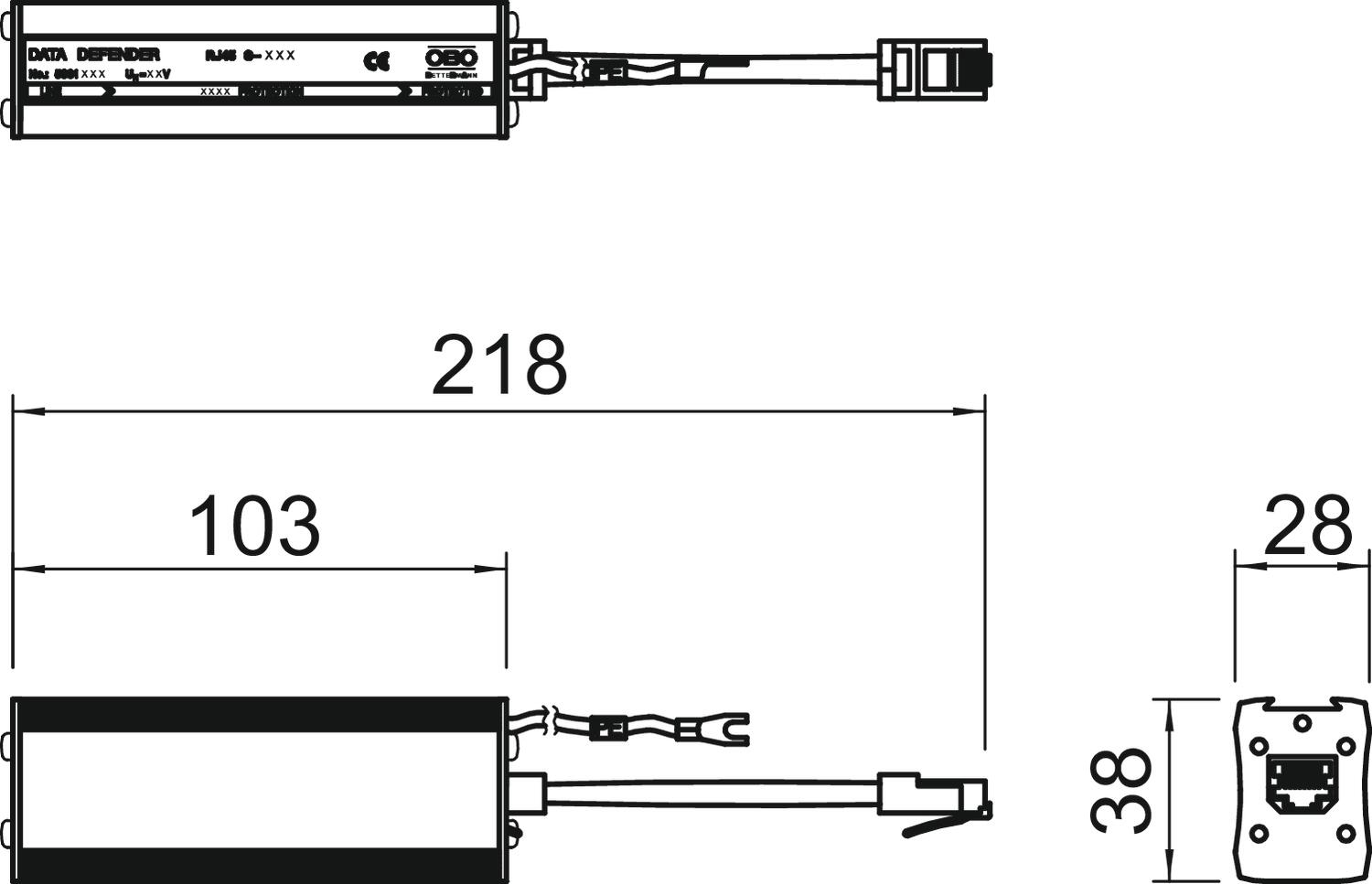

Fine protection for 4-wire information technology systems with RJ45
Item no. 5081005 | EAN 4012196415762
- Product description
-
Product descriptionData line protection device for IT systems
• In aluminium housing
• RJ45 connector
• Incl. 150 mm connection cable with RJ45 connectors
• Simple mounting using adapter
• 2-stage protection circuit
• DIN rail mounting with DLS-BS accessories (5082 38 2)
Application: Twisted Pair, control circuits, RJ45 communication cables
-
- Technical data
-
Technical data
Arrestor monitoring no Capacity (wire-earth) <20 pF Capacity (wire-wire) <50 pF Channel performance Ansi/EA CAT 5e Channel performance ISO/IEC Class E Cut-off frequency 100 MHz Dimension 6.2V Earthing via: Connection cable Impulse durability wire-earth C1: 1 kV / 0,5 kA (8/20µs) Impulse durability wire-wire C1: 1 kV / 0,5 kA (8/20µs) Insertion loss ≤3 dB Insulation resistance >500 MΩ Kategorie Type 2+3 / C2+C1 Lightning protection zone LPZ 2→3 Maximum continuous voltage AC 4,2 V Maximum continuous voltage DC 6 V Nominal load current AC 0,7 A Nominal load current DC 1 A Number of poles 4 Permitted temperature range, max. 80 °C Permitted temperature range, min. -40 °C Plug-in system RJ45 Protection level wire-earth <750 V Protection level wire-wire <40 V Protection rating IP40 Screening Indirect Shielding connection available yes Signalling on device Without SPD to IEC 61643-21 Class II+III / C2+C1 Testing standard IEC 61643-21 Total discharge current (8/20) 2,5 kA Version for Fine protection, 4 wires + shield - All types
