Product description

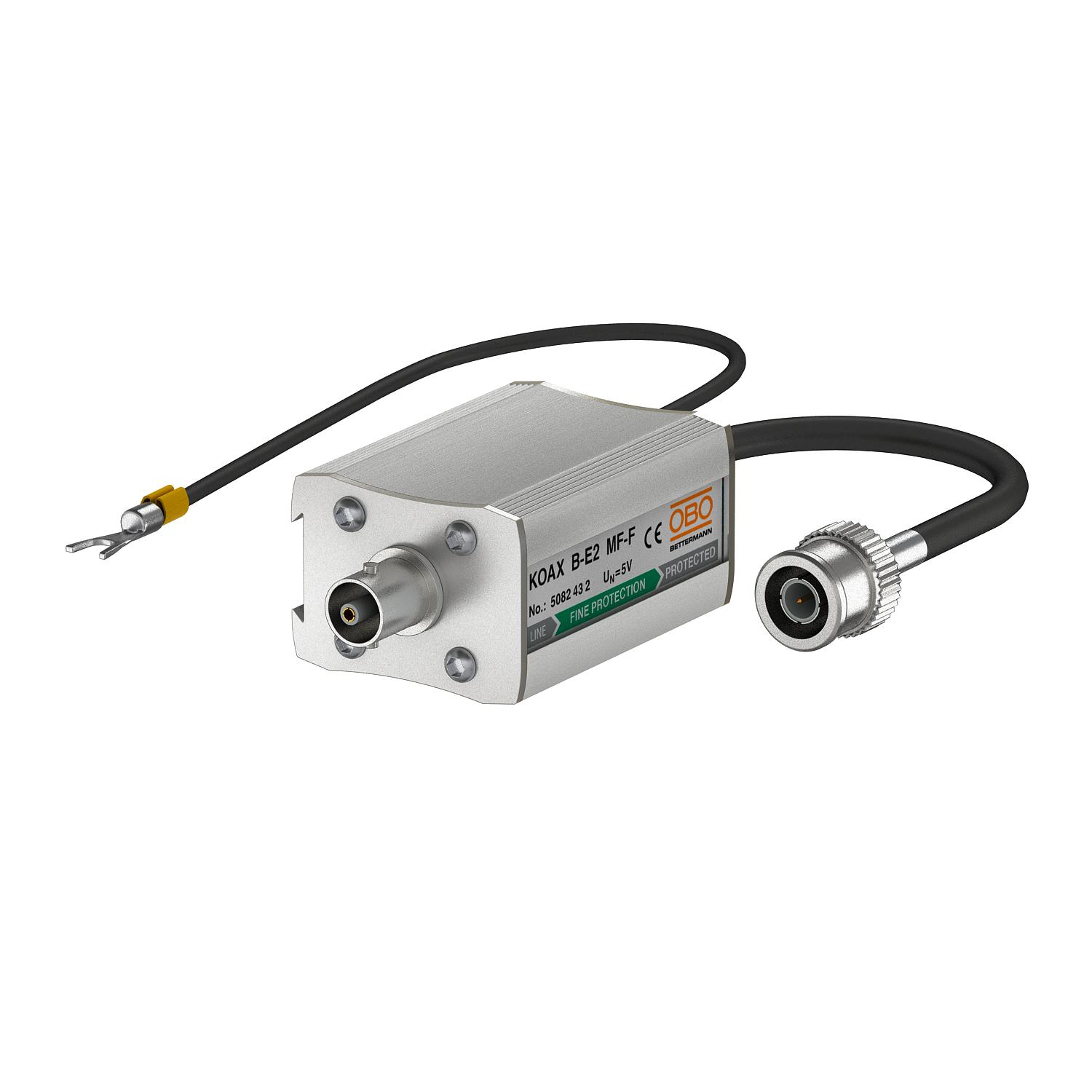

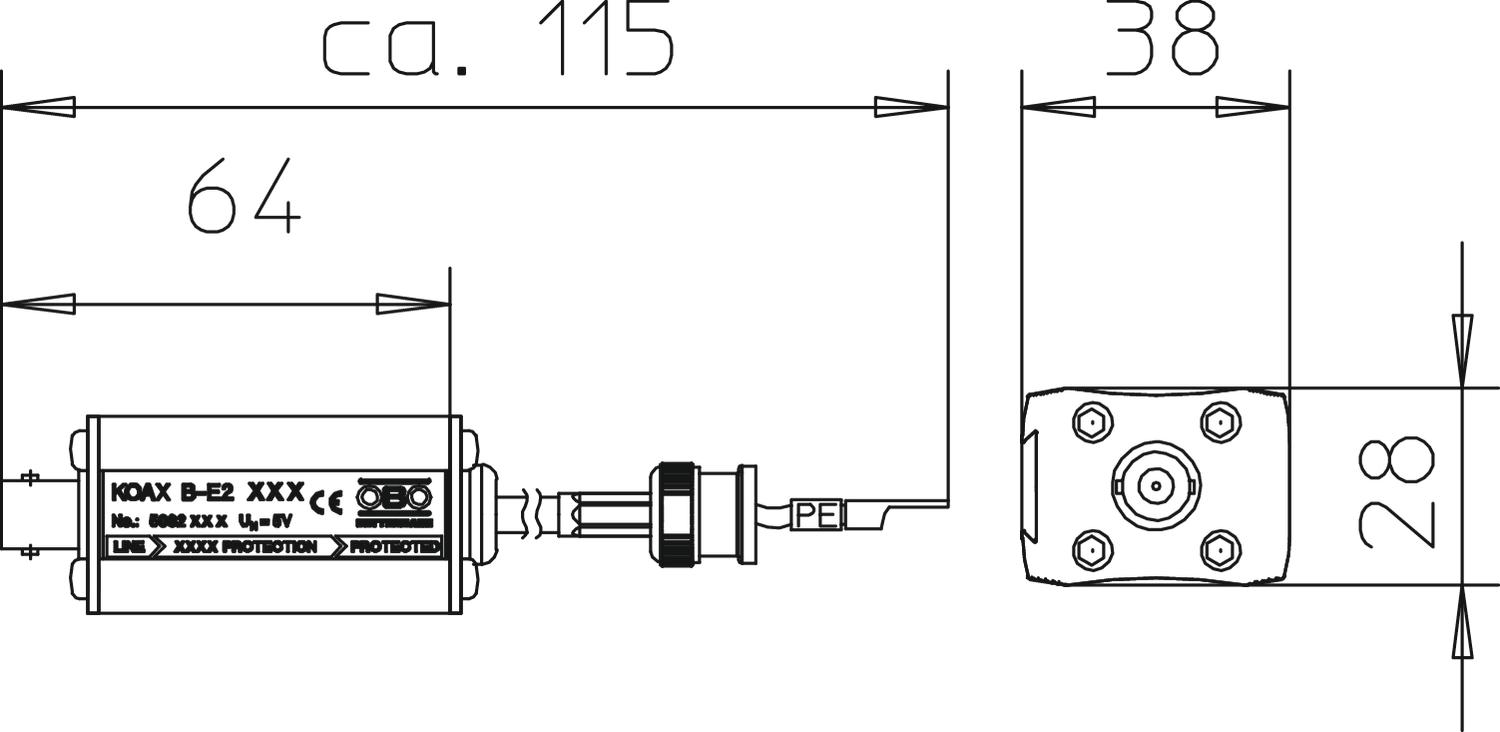

Data line protection device for coaxial Ethernet network systems
• In aluminium housing
• BNC connector m/f
• Simple mounting with adapter plug
• Two-stage protection circuit
• DIN rail mounting with DLS-BS accessories (5082 38 2)
Application: Protecting video signals; cameras and/or CCTV units, Cheapernet, 10BASE2, 10BASE5
• In aluminium housing
• BNC connector for Cheapernet, 10BASE2
• Simple mounting with adapter connector
• Two-stage protection circuit
- Technical data
-
Technical data
Cable type for surge protection devices Data cable COAX Capacity (wire-earth) <100 pF Capacity (wire-wire) <100 pF Cut-off frequency 70 MHz Dimension 6.2V Earthing via: Connection cable Impulse durability wire-earth C2: 10 kV / 5 kA (8/20µs) Impulse durability wire-wire C1: 1 kV / 0,5 kA (8/20µs) Insertion loss ≤1 dB Insulation resistance >1 GΩ Kategorie Type 2+3 / C2+C1 Lightning protection zone LPZ 1→3 Maximum continuous voltage AC 4,2 Maximum continuous voltage DC 6 Nominal load current AC 0,7 Nominal load current DC 1 A Number of poles 1 Permitted temperature range, max. 80 °C Permitted temperature range, min. -20 °C Plug-in system BNC Protection level wire-earth <600 V Protection level wire-wire <40 V Protection rating IP40 Return loss ≥14 Screening Direct Shielding connection available yes Signalling on device Without SPD to IEC 61643-21 Class II+III / C2+C1 Testing standard IEC 61643-21 Total discharge current (8/20) 10 kA Version for Fine protection Wave resistance 75 Ω - All types
- Downloads
-
Data sheet KOAX B-E2 MF-F / 5082432 , 0.21MB , pdfDeclaration of conformity KOAX B-E2 MF-F / 5082432 , 0.11MB , pdfSelection aid Selection aid, surge protection , 2.00MB , pdf
