Fastening pin for mounting plates
Item no. 2007831 | EAN 4012195615910
- Product description
-
Product description

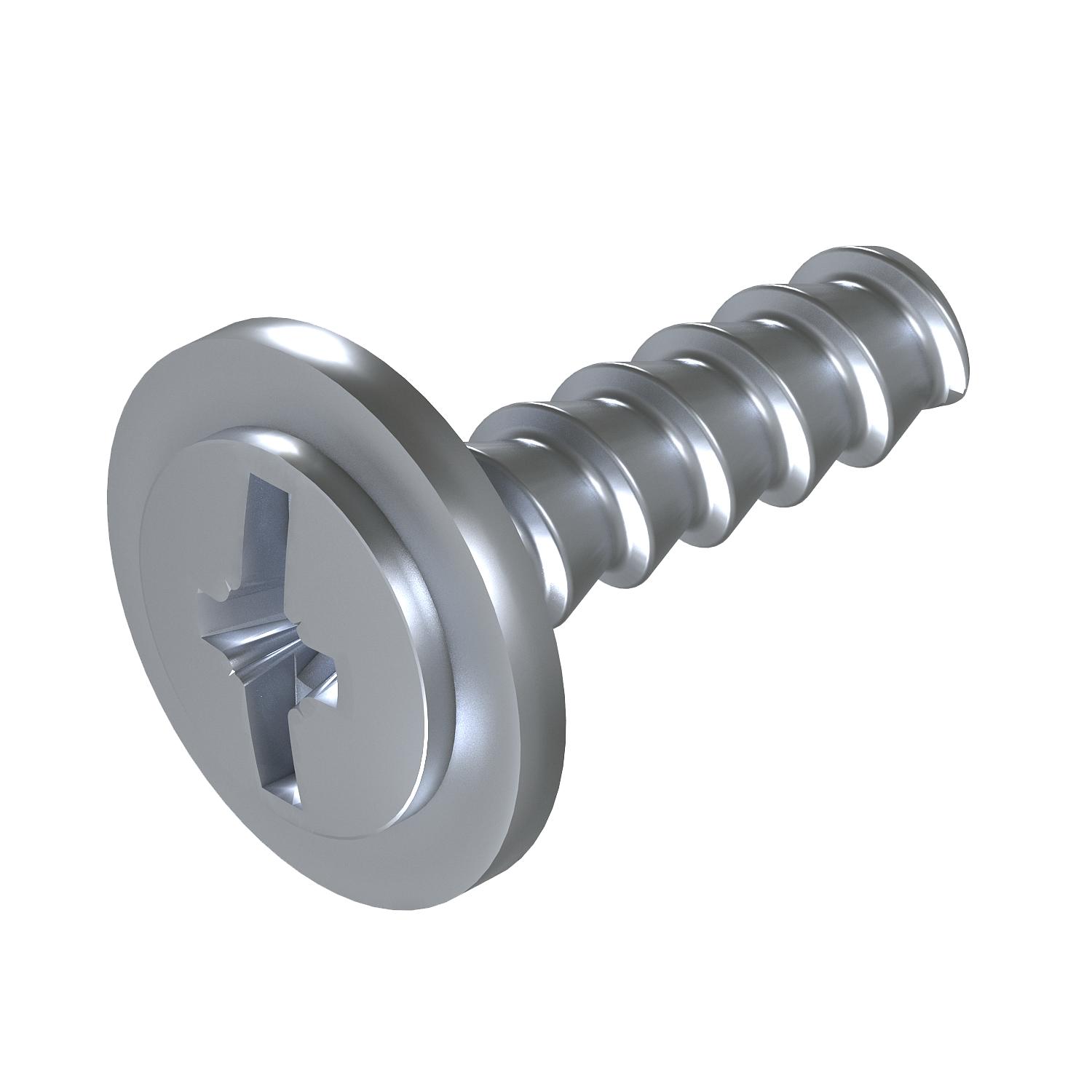

Metal fastening pin for fastening the T series onto mounting plates or other thin-walled supporting structures. Mounted by simply pressing the bolt into the fastening holes in the T series. Easy removal with a screw thread.
-
- Technical data
-
Technical data

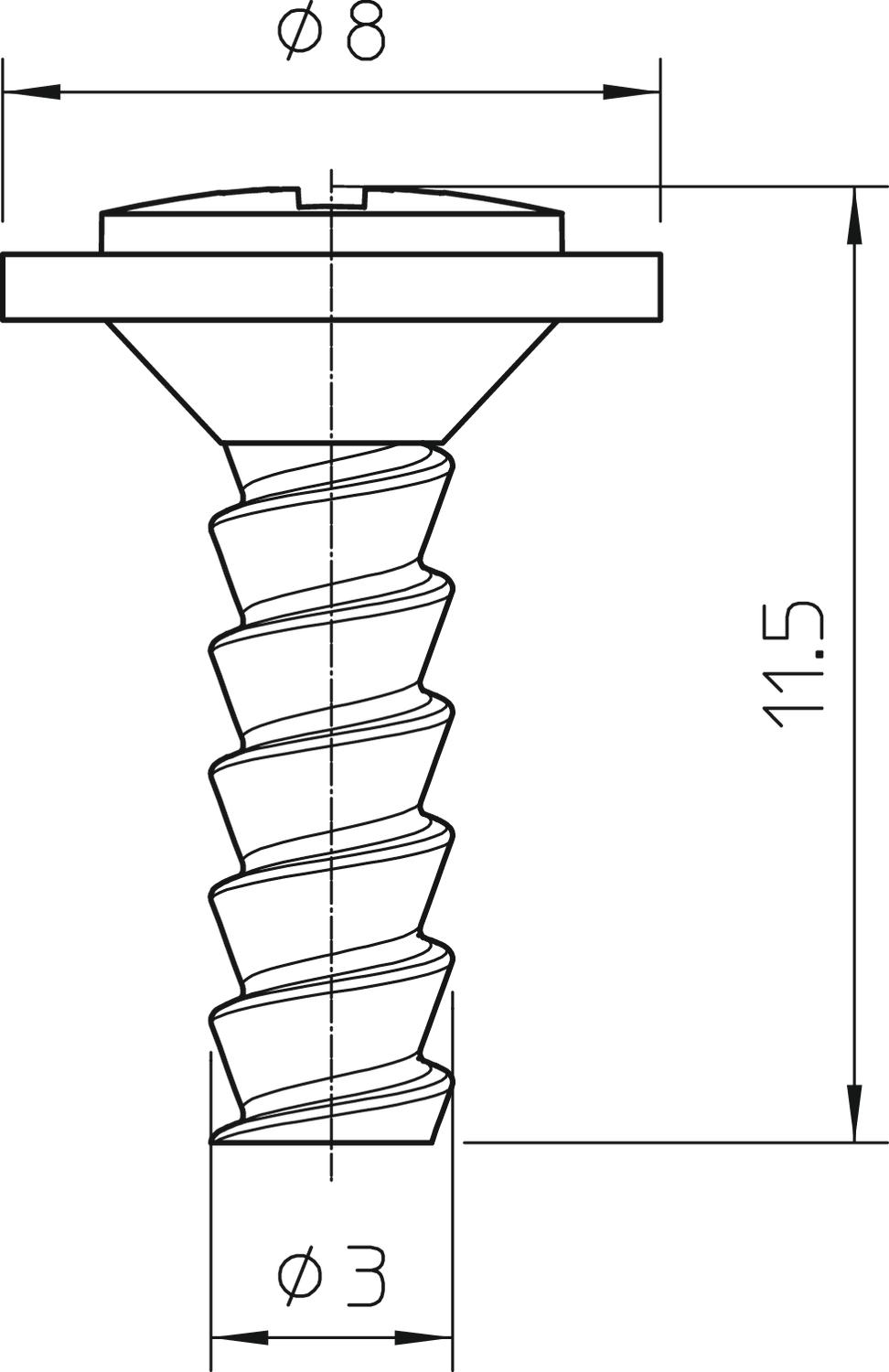

Dimension Ø3,5x10 Dimension D 3,5 mm Dimension L 11,5 mm Length 11,5 mm Material Steel Screw system Phillips PH with screw slot Surface Electrogalvanized Thread M3 Thread metric 3 - All types
- Downloads
-
Data sheet T-S MST / 2007831 , 0.17MB , pdfBrochure FireBox , 2.61MB , pdf
