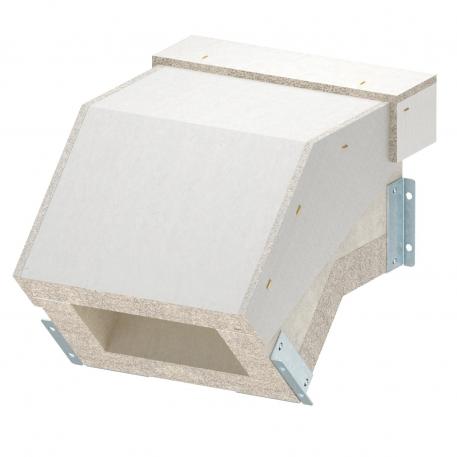

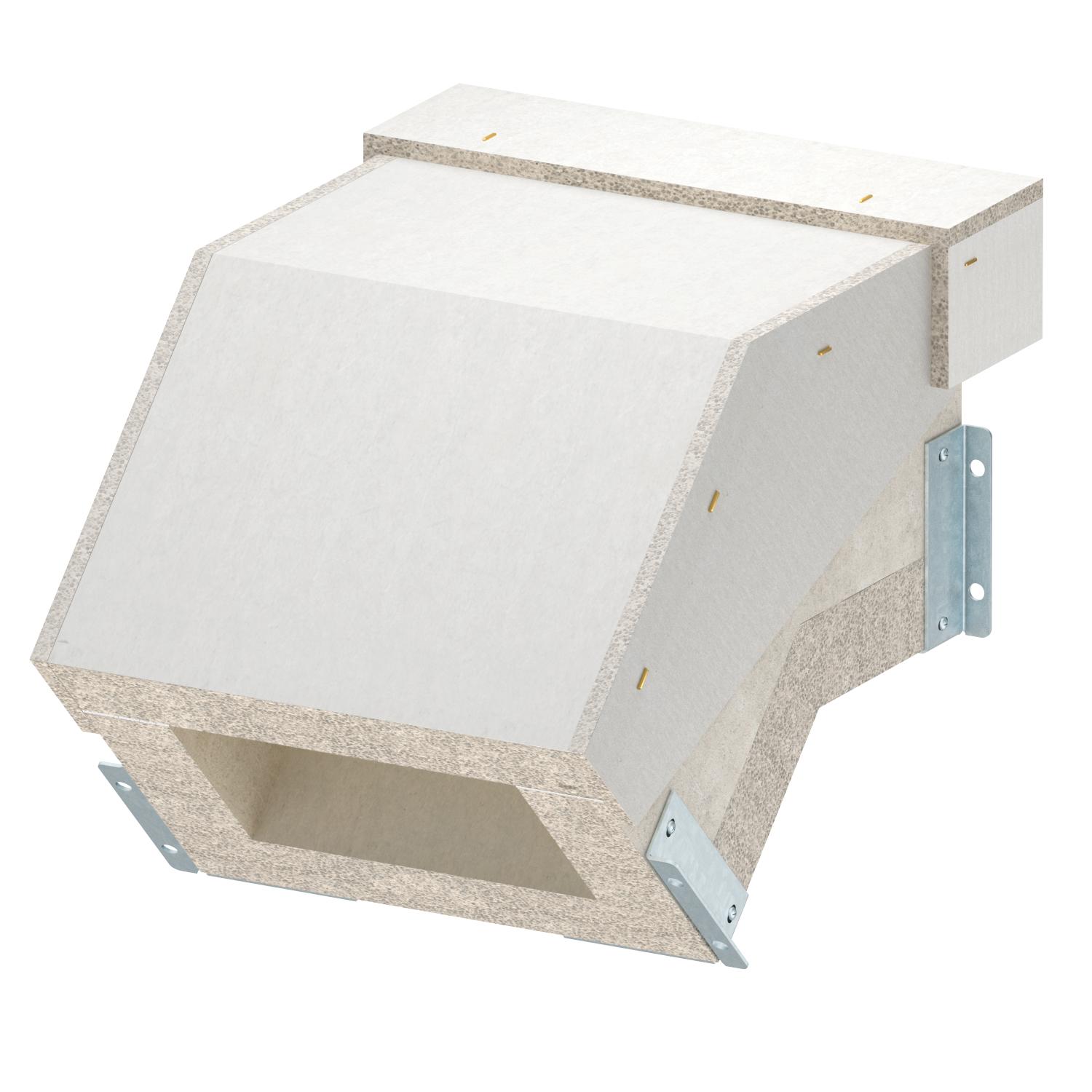

Falling vertical bend EI90 for PLCS D091220 fire protection duct
Item no. 7217954 | EAN 4012196836864
- Product description
-
Product descriptionVertical bend, falling, for PYROLINE® Con S EI90 fire protection duct, type PLCS D091220, consisting of fibreglass light concrete which is resistant to water and frost for the creation of vertical changes of direction (45°) in the duct. Mounted connectors ensure quick mounting in situ, whilst loosely placed covers ensure quick inspection and reassignment.
Including connection screws and sealing strips.
-
- Technical data
-
Technical data

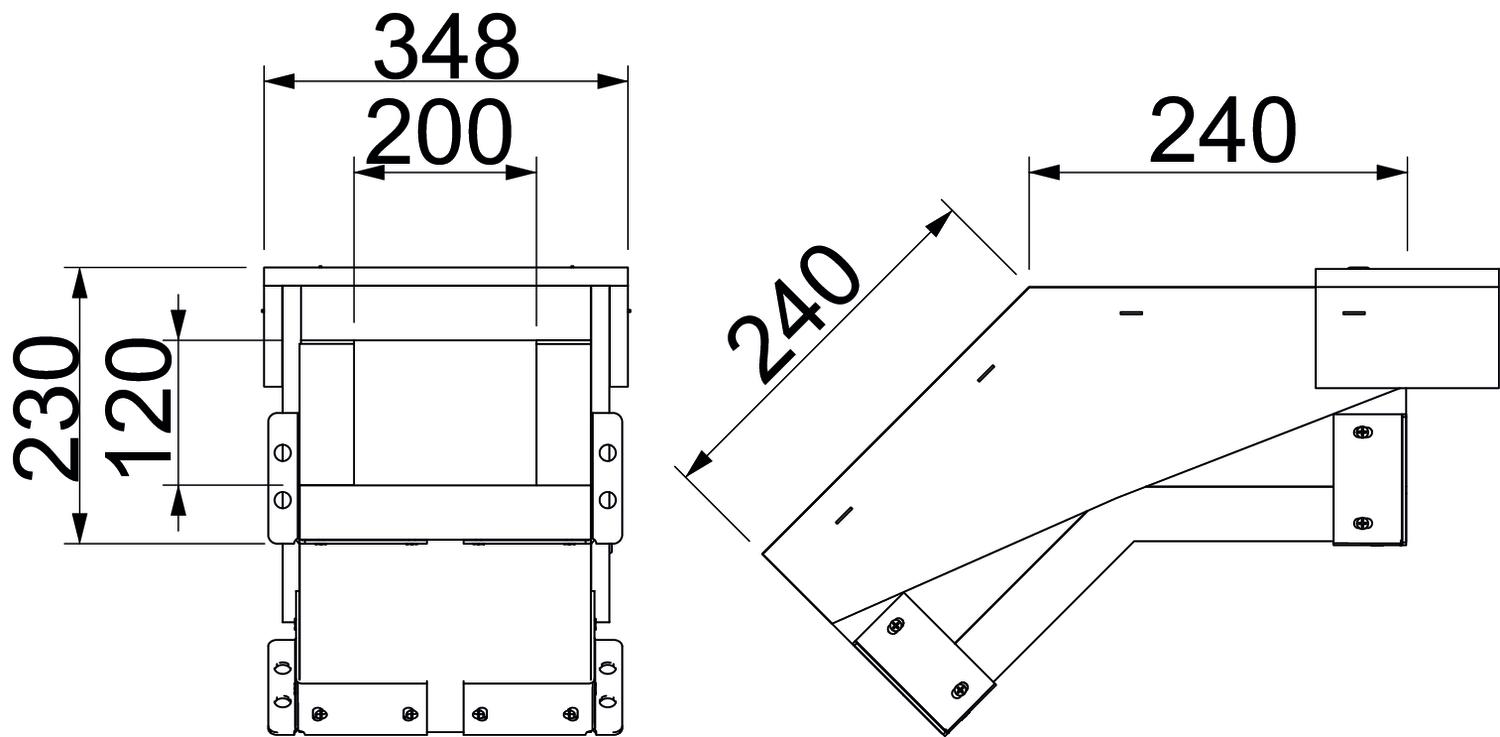

Angle of the bend 45 ° Classification EI − installation duct 90 Colour Grey Cover fastening Loose Dimension 200x120 Dimension B 348 mm Dimension b 200 mm Dimension h 120 mm Dimension H 230 mm Dimension L 240 mm Jacketing Without Material Fibreglass lightweight concrete Material of the insulation Glass-fibre lightweight concrete Number of flammable sides 4 With perforation no - All types
