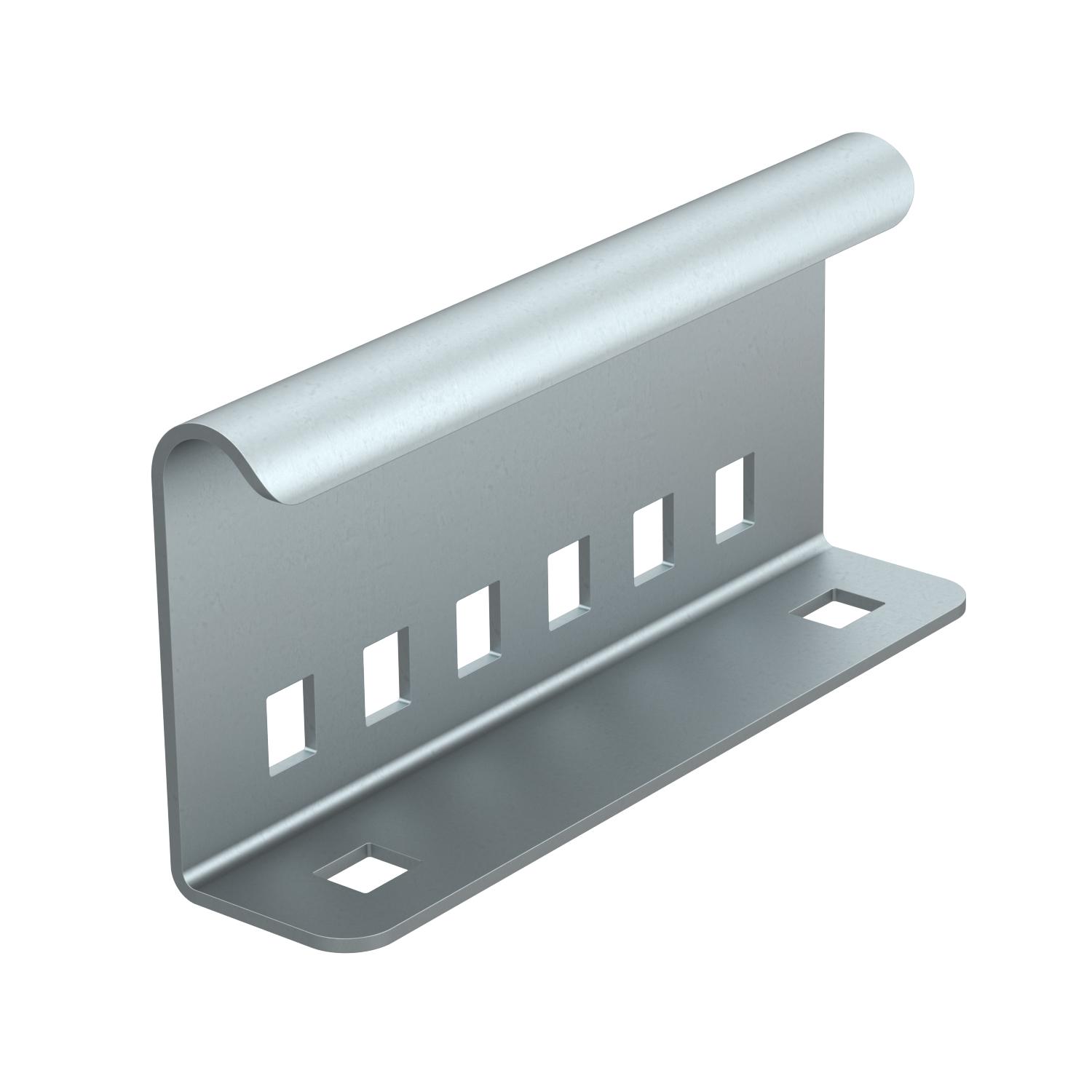

External connector

Item no. 6208770 | EAN 4012196960262

6208770 / AVL 60 FS
65 mm
2 mm
Steel
Strip galvanized
Product description
Product description
External connector for mechanical connection of cable ladder sections for routing types with cable ladders for the maintenance of electrical function to DIN 4102 Part 12. Including bolts.
  • Communautés Européennes, EC declaration of conformity according to EC directives
Technical data

Technical data

Adjustable connector, horizontal no
Articulated connector, vertical no
Connection type Screw connector

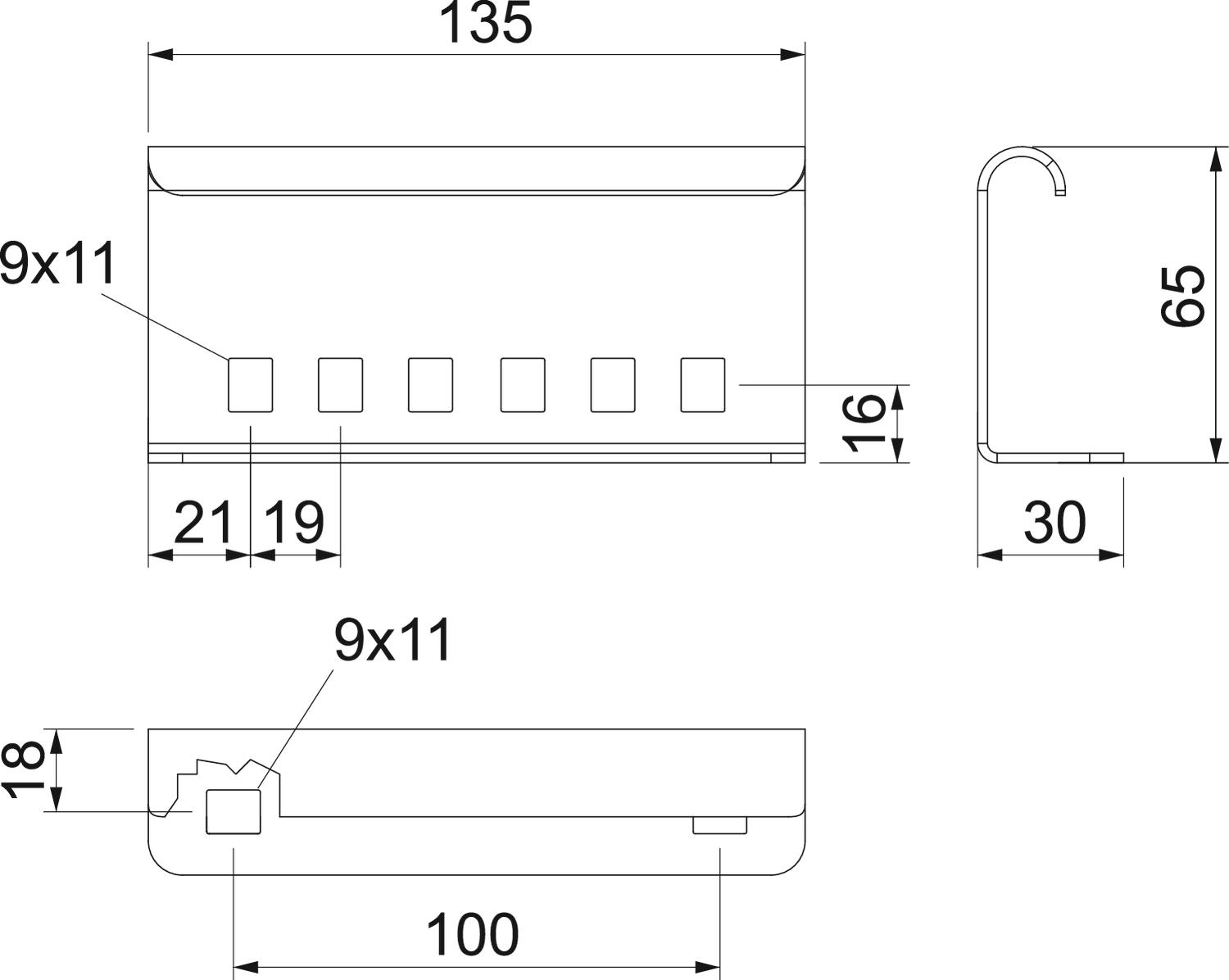

Dimension 135x65x30
Height 65 mm
Length 135 mm
Maintain electrical functions yes
Material Steel
Plate thickness 2 mm
Rustproof steel, pickled no
Suitable for cable ladder yes
Suitable for cable tray no
Suitable for cable tray system height 65 mm
Suitable for mesh cable tray no
Surface Strip galvanized
Version for Straight connector
Wide-span version no
Width 30 mm
All types

All types

Types Height Plate thickness Material Surface Item no. Quantity SSU
AVL 60 FS 65 mm 2 mm Steel Strip galvanized 6208770
10 piece
Downloads

Download

EU declaration of conformity AVL 60 FS / 6208770 , 0.11MB , pdf
Download
REACH Declaration of conformity AVL 60 FS / 6208770 , 0.12MB , pdf

No invitation to tender text is available for this product.
