Expansion piece, metric thread
Item no. 2088281 | EAN 4012195372165
- Product description
-

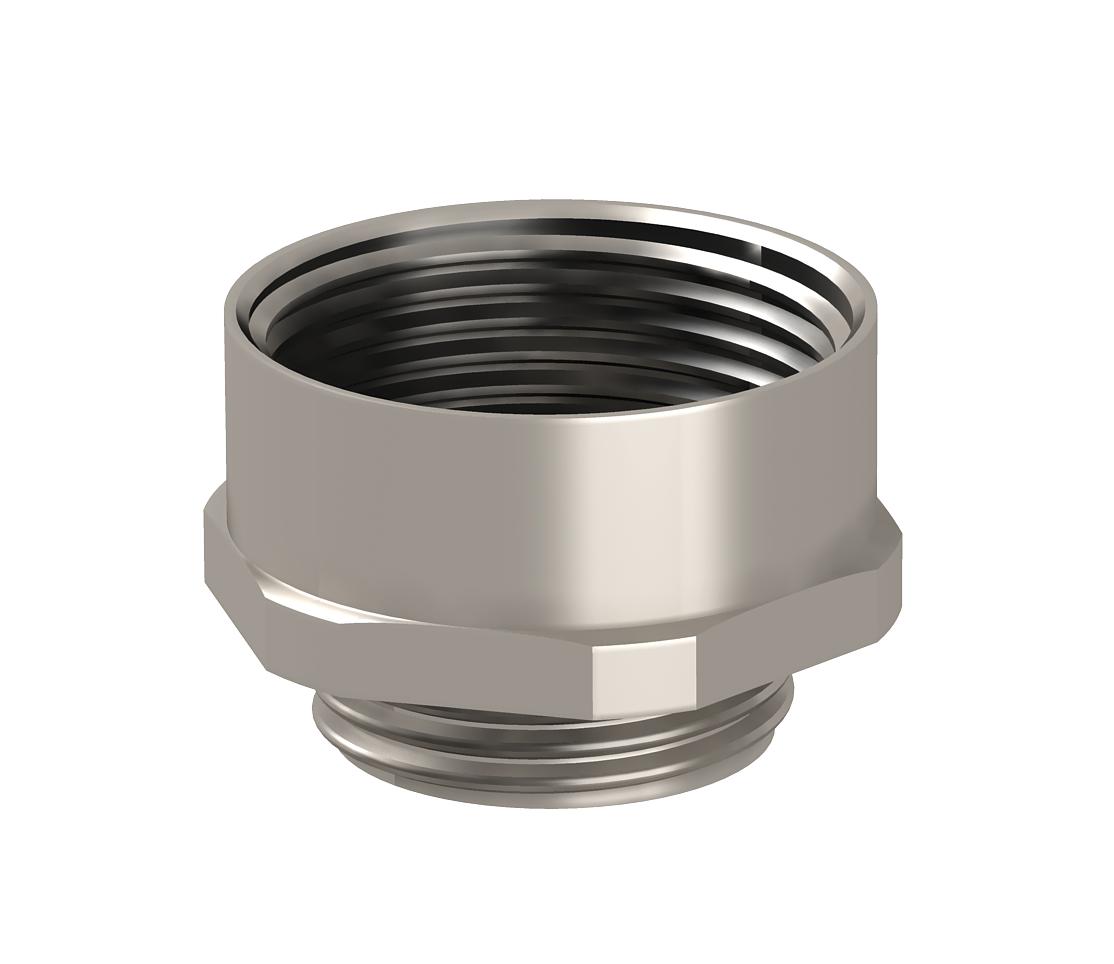

Product descriptionExtension made from brass with metric inner and outer thread to mount metal or plastic cable glands on housings. IP54 protection rating without additional connection sleeve. Protection rating of up to IP68 possible with additional connection seal, such as an O-ring or flat sealing ring.
-
- Technical data
-
Technical data

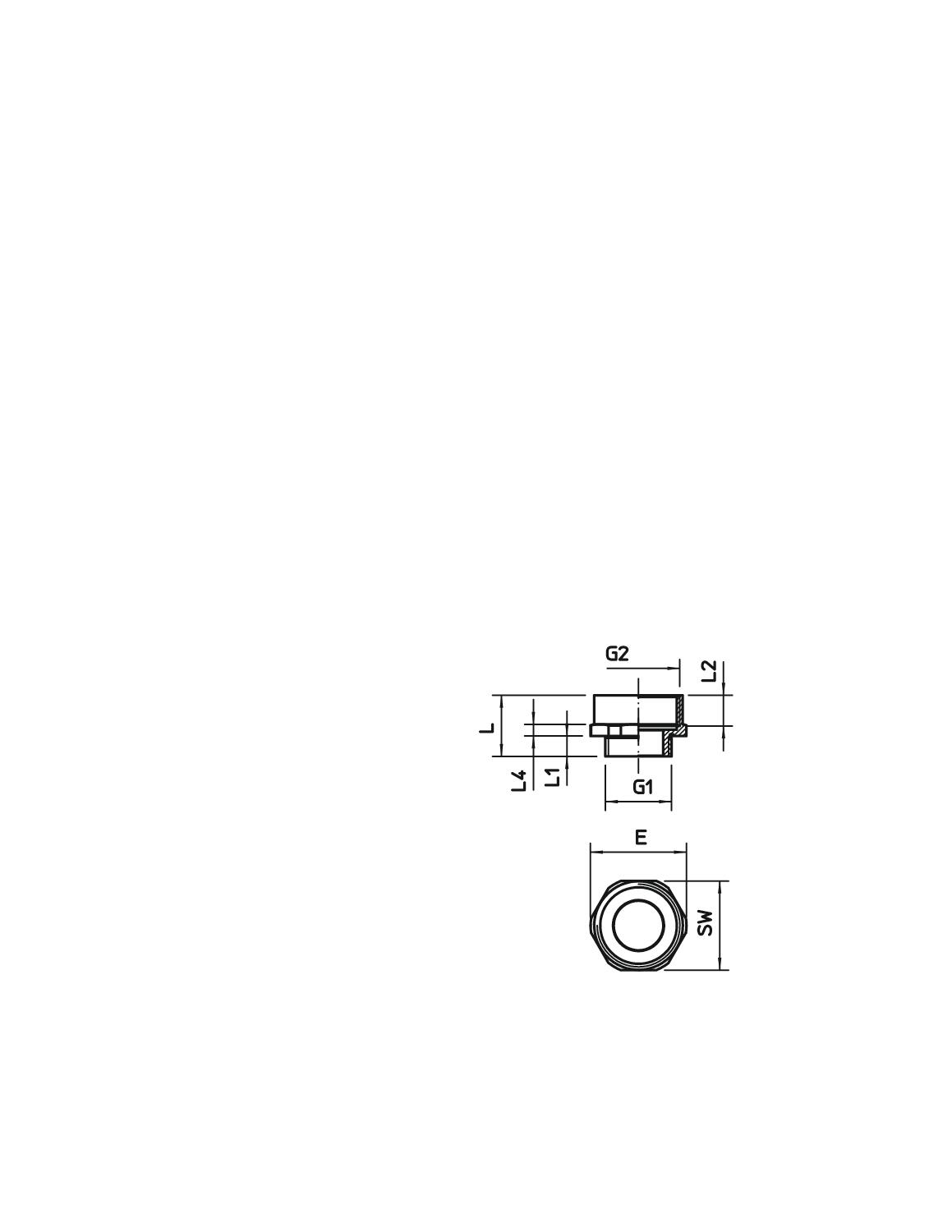

Dimension M16-M20 Dimension D 12 mm Dimension E 24,5 mm Dimension L 16,7 mm Dimension L1 5 mm Dimension L2 8 mm Dimension L4 3,5 mm explosion-proof no Material Brass Nickel-plated yes Surface Nickel-plated Thread dimension, metric, external 16 Thread dimension, metric, internal 20 Thread type: External thread Metric Thread type: Internal thread Metric WAF 22 - All types
- Downloads
-
Data sheet 165 ADA M16-20 / 2088281 , 0.19MB , pdfEU declaration of conformity 165 ADA M16-20 / 2088281 , 0.05MB , pdfREACH Declaration of conformity 165 ADA M16-20 / 2088281 , 0.12MB , pdfRoHS Declaration of conformity 165 ADA M16-20 / 2088281 , 0.12MB , pdf
