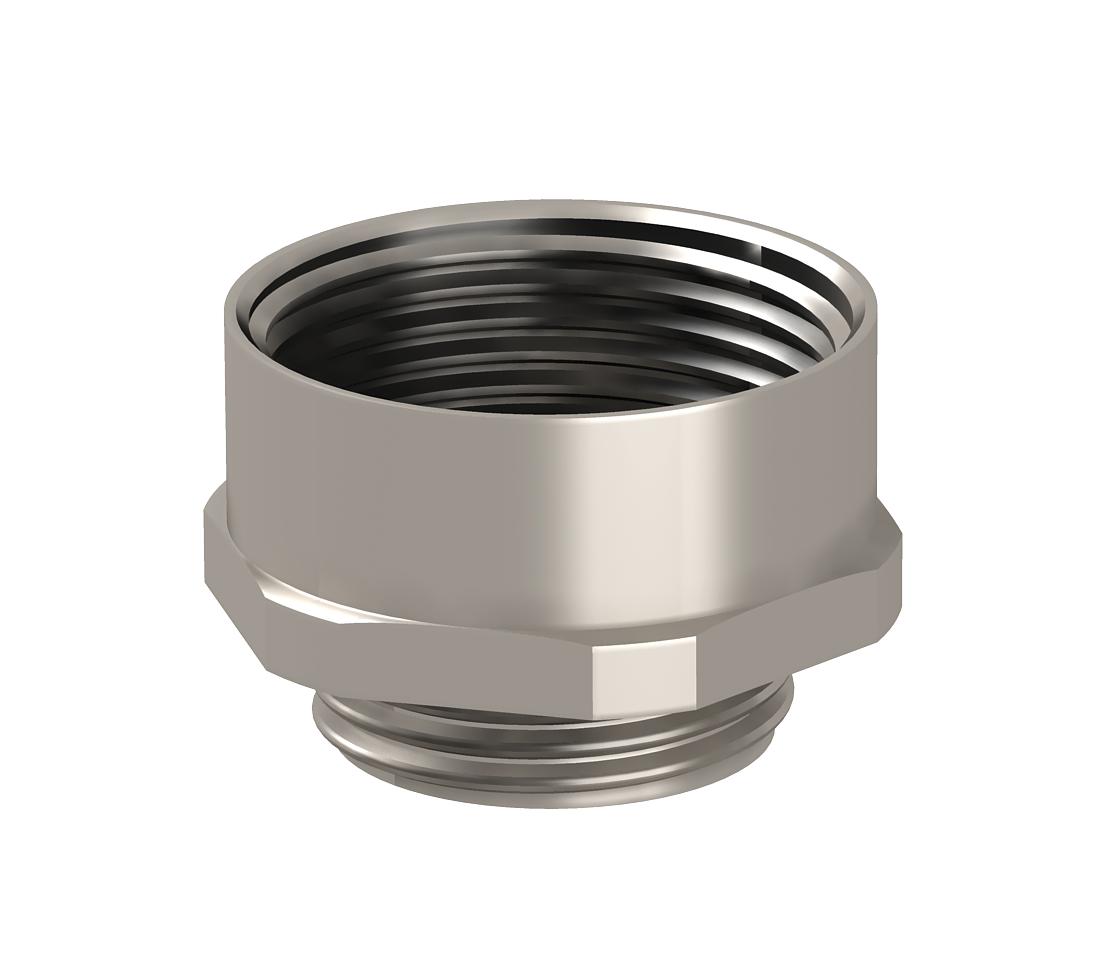

Expansion piece, metric thread

Item no. 2088280 | EAN 4012195372158

Product description

Product description

Extension made from brass with metric inner and outer thread to mount metal or plastic cable glands on housings. IP54 protection rating without additional connection sleeve. Protection rating of up to IP68 possible with additional connection seal, such as an O-ring or flat sealing ring.
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Thread metric
Technical data

Technical data

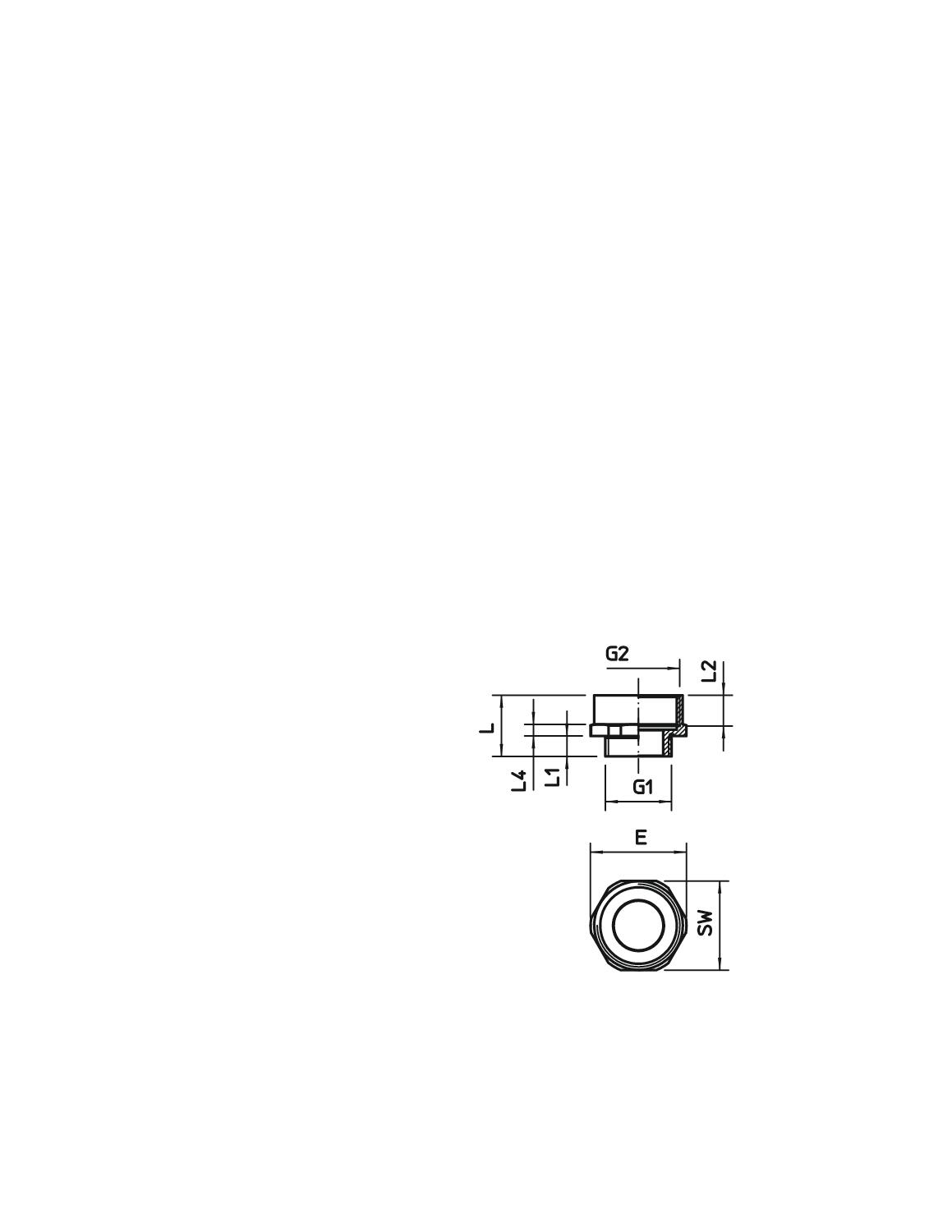

Dimension M12-M16
Dimension D 8 mm
Dimension E 20 mm
Dimension L 16 mm
Dimension L1 5 mm
Dimension L2 7 mm
Dimension L4 3 mm
explosion-proof no
Material Brass
Nickel-plated yes
Surface Nickel-plated
Thread dimension, metric, external 12
Thread dimension, metric, internal 16
Thread type: External thread Metric
Thread type: Internal thread Metric
WAF 18
All types

All types

Types Thread dimension, metric, external Thread dimension, metric, internal Item no. Quantity SSU
165 ADA M12-16 12 16 2088280
50 piece
165 ADA M16-20 16 20 2088281
50 piece
165 ADA M20-25 20 25 2088282
50 piece
165 ADA M25-32 25 32 2088283
50 piece
165 ADA M32-40 32 40 2088284
25 piece
165 ADA M40-50 40 50 2088285
10 piece
165 ADA M 50-63 50 63 2088286
5 piece
