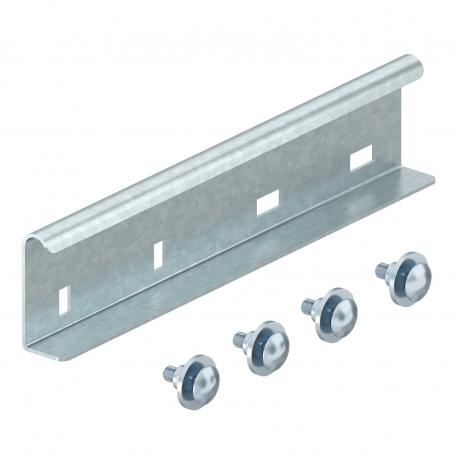

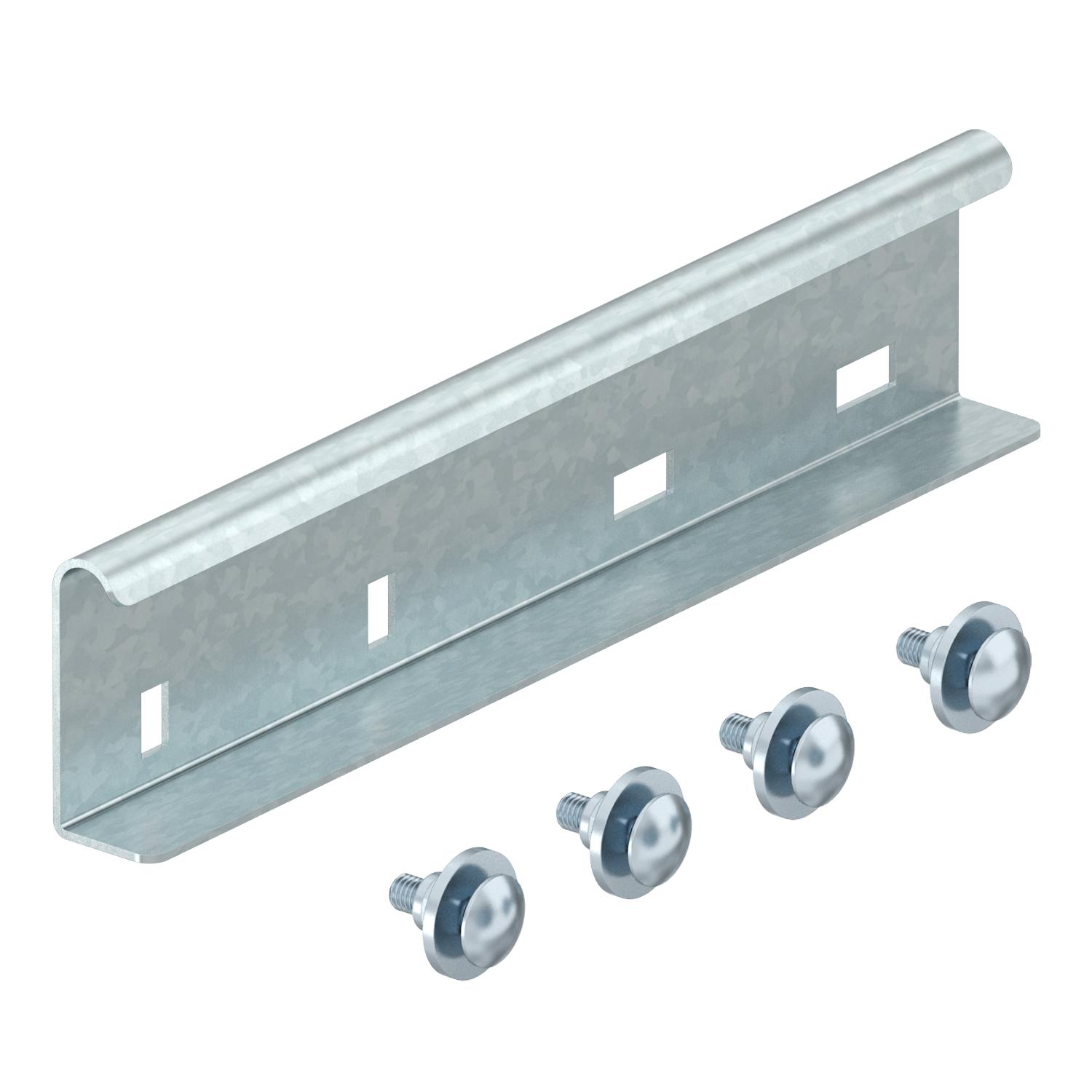

Expansion connector
Item no. 6208970 | EAN 4012196464623
- Product description
-
Product description
Connector for expansion for compensation of linear thermal expansion. The tightening torques of the self-locking screws on the loose bearing side are 5 Nm.
-
- Technical data
-
Technical data
Adjustable connector, horizontal no Articulated connector, vertical no Connection type Screw connector Dimension 60x300 Maintain electrical functions no Material Steel Rustproof steel, pickled no Suitable for cable ladder yes Suitable for cable tray no Suitable for cable tray system height 60 mm Suitable for mesh cable tray no Surface Hot-dip galvanised Version for Straight connector Dimensions

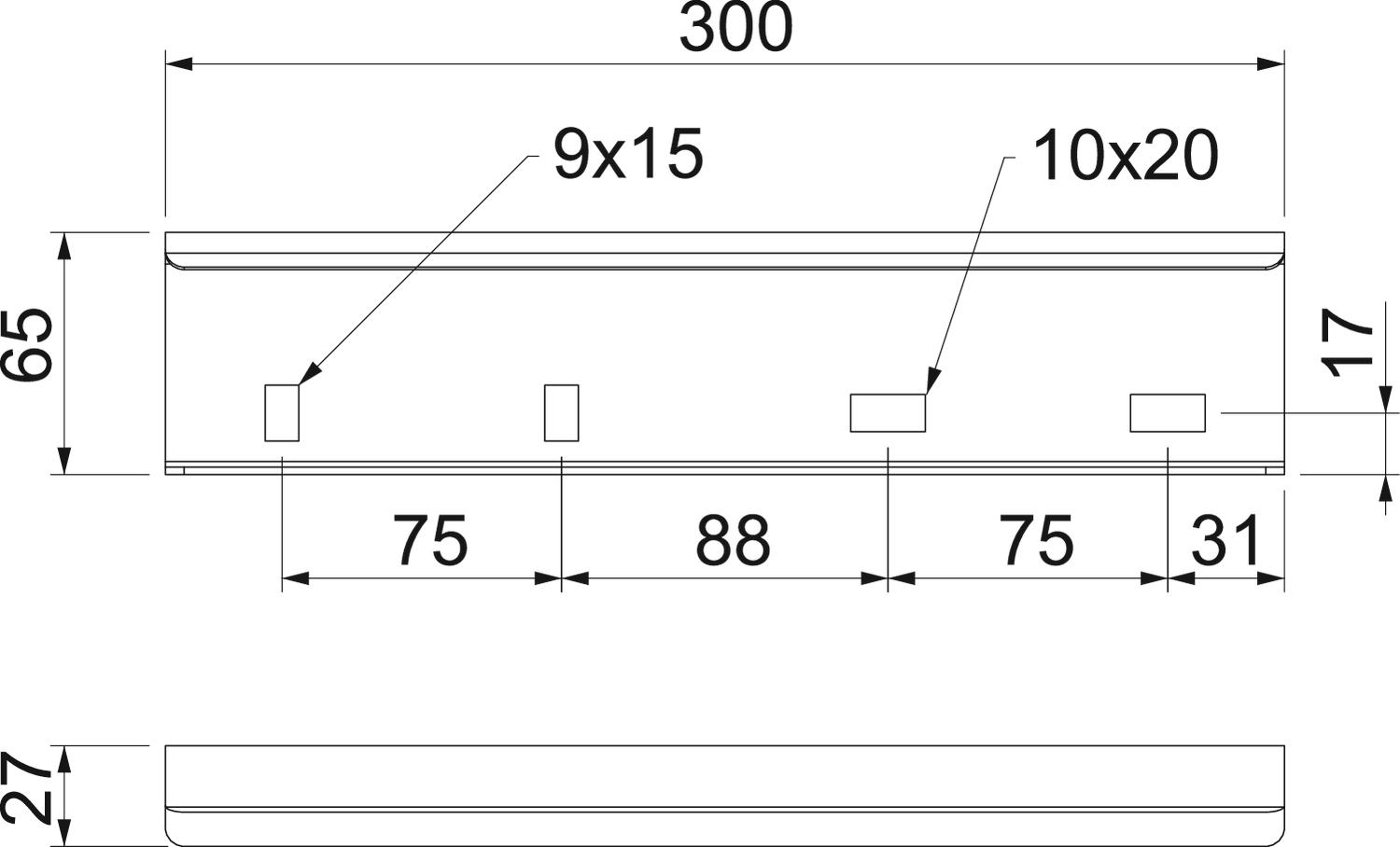

Height 60 mm Length 300 mm Width 27 mm - All types
