Equipotential busbar with plastic base plate

Item no. 5015073 | EAN 4012195378259

5015073 / 1809

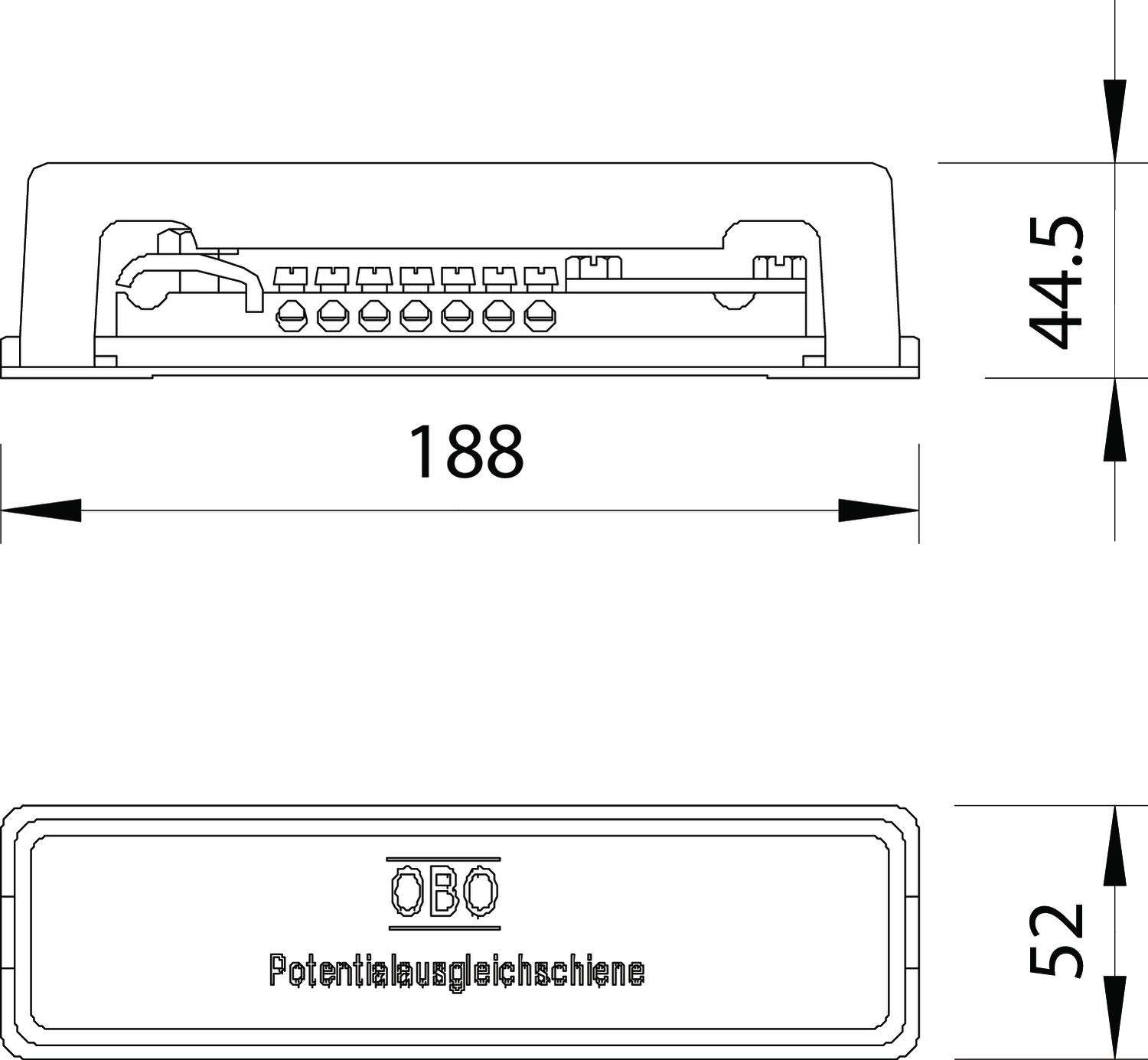

188 mm
52 mm
44.5 mm
Grey
Product description

Product description

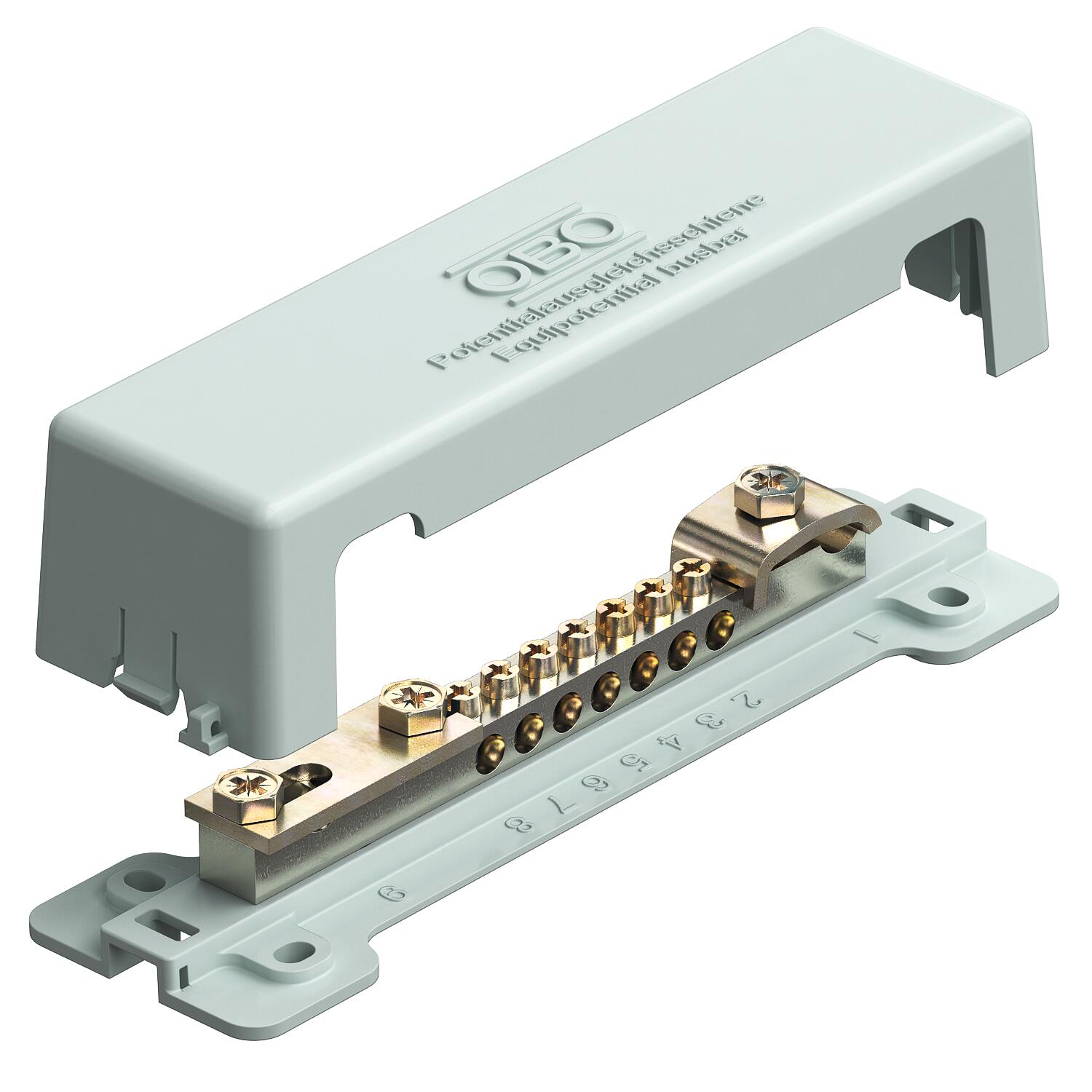

Equipotential busbar for equipotential bonding according to DIN VDE 0100-410/-540 and lightning protection equipotential bonding according to DIN VDE 0185-305

• Base plate and cover hood made of polystyrene, grey
• Sealable / labellable cover
• Contact strip made of nickel-plated brass
• Screws and crossbar made of electrogalvanised steel
• Capable of carrying lightning current of 100 kA (10/350)

Connection options:
• 7x single or multi-core cables to 25 mm² or fine-core cables to 16 mm²
• 1 round conductor Rd 8–10
• 1 flat strip to FL30 or round conductor Rd 8–10


With sealable cover hood,
made from impact-resistant plastic
  • Lightning current-tested
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Halogen-free; without chlorine, fluorine and bromine
Technical data

Technical data

Colour Grey
Dimension 188mm
Height 44,5 mm
Insulator yes
Length 188 mm
Lightning current carrying capacity H/100 kA
Material Brass
Material of the contact rail Brass
Material of the terminal Steel
Quantity of cable connections up to 25 mm², rigid 7
Quantity of flat conductor connections up to 30 mm 1
Quantity of round conductor connections 8-10 mm 1
Quantity of round conductor connections, total 1
Surface of the contact rail Nickel-plated
Surface of the terminal Electrogalvanised
Type Fixed structure
Version for With cover hood
Width 52 mm
All types

All types

Types Length Width Height Colour Item no. Quantity SSU
1809 188 mm 52 mm 44.5 mm Grey 5015073
1 piece
