Equipotential busbar, solid version

Item no. 5015057 | EAN 4012195378136

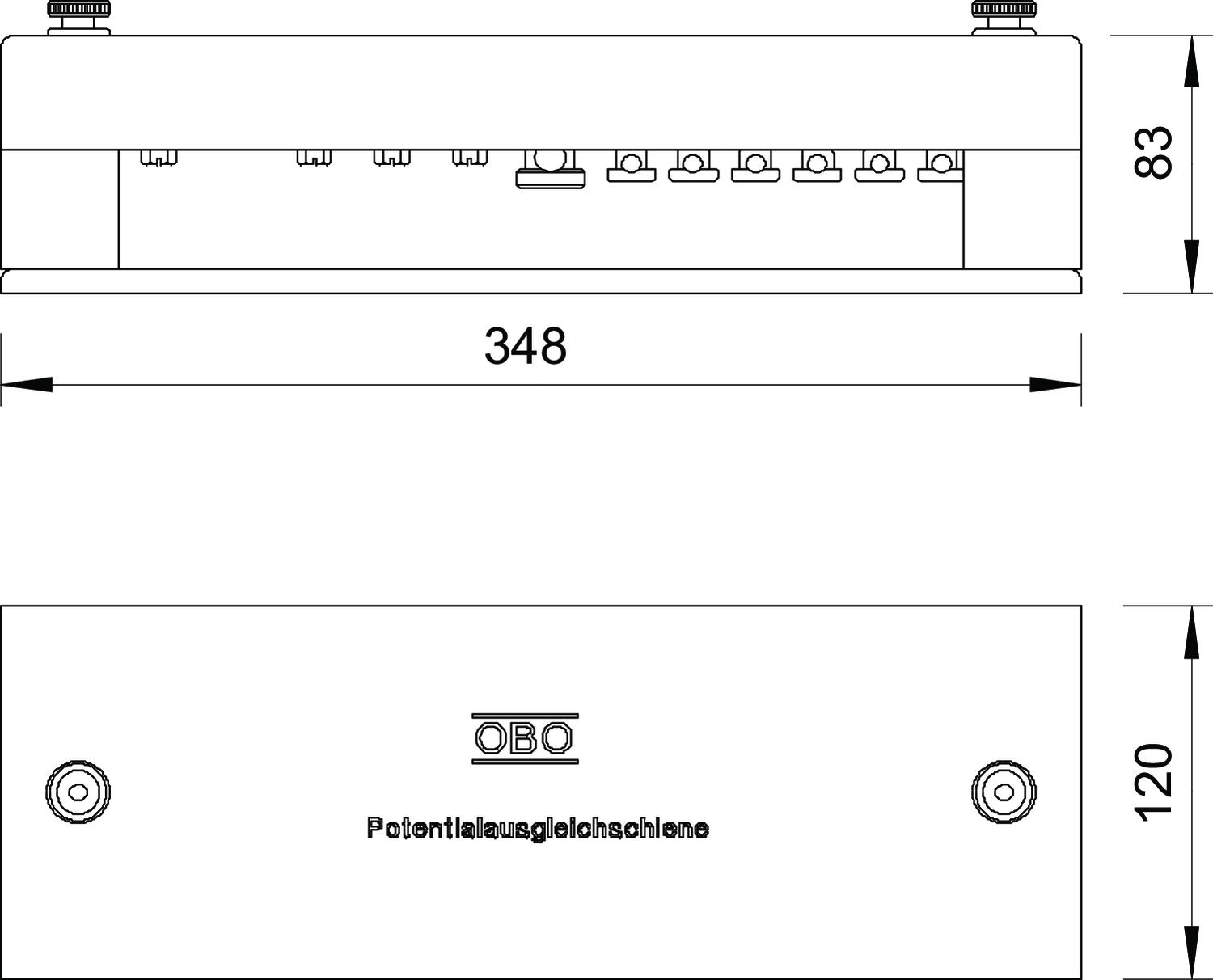

Item no. / Types	5015057 / 1810

Length	348 mm

Width	120 mm

Height	83 mm

Product description

Product description

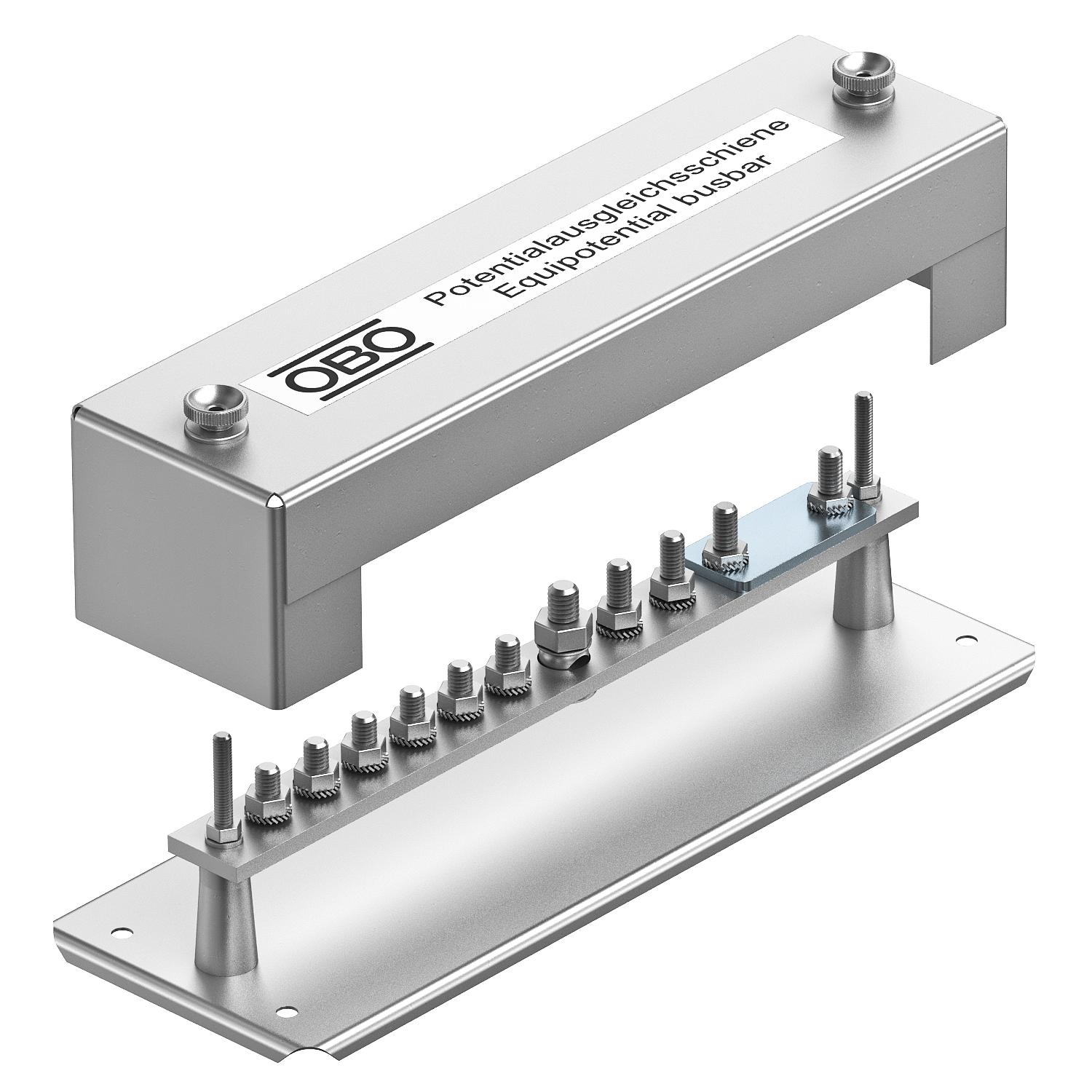

• Base plate and screw-on cover made of strip-galvanised steel

• Sealable / labellable cover

• Contact strip made of strip-galvanised steel

• Screws and crossbar made of steel, hot-dip galvanised or electrogalvanised

Connection options:

• 6 cables 6-16 mm²

• 1 round conductor Rd 8-10

• 1 flat conductor to FL 40

• 2 cable shoe M8

Technical data

Technical data

Dimension	348mm
Insulator	no
Material	Steel
Material of the contact rail	Brass
Material of the terminal	Steel
Quantity of cable connections up to 16 mm², rigid	6
Quantity of flat conductor connections up to 40 mm	1

Quantity of round conductor connections 8-10 mm	1
Quantity of round conductor connections, total	1
Surface	Hot galvanized
Surface of the contact rail	Nickel-plated
Surface of the terminal	Electrogalvanised
Type	Fixed structure
Version for	With cover hood
