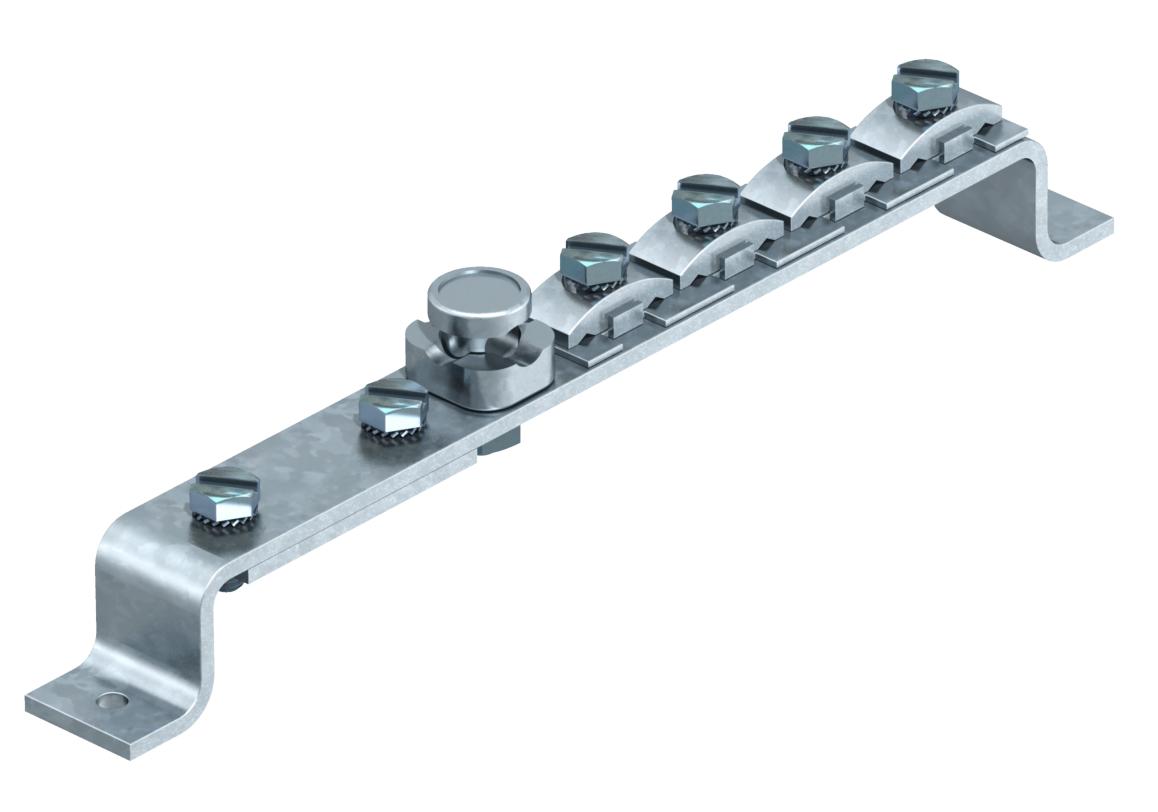

Equipotential busbar, simple version
Item no. 5015014 | EAN 4012195378075
- Product description
-
Product description• Clamp and crossbar, electrogalvanised steel
• Clamping element and contact strip, brass, screws, hot dipped galvanised steel
Connection options:
• 8 x cables to 25 mm²
• 1 x round conductor Rd 8-10
• 1 x flat conductor to FL 40
- Technical data
-
Technical data

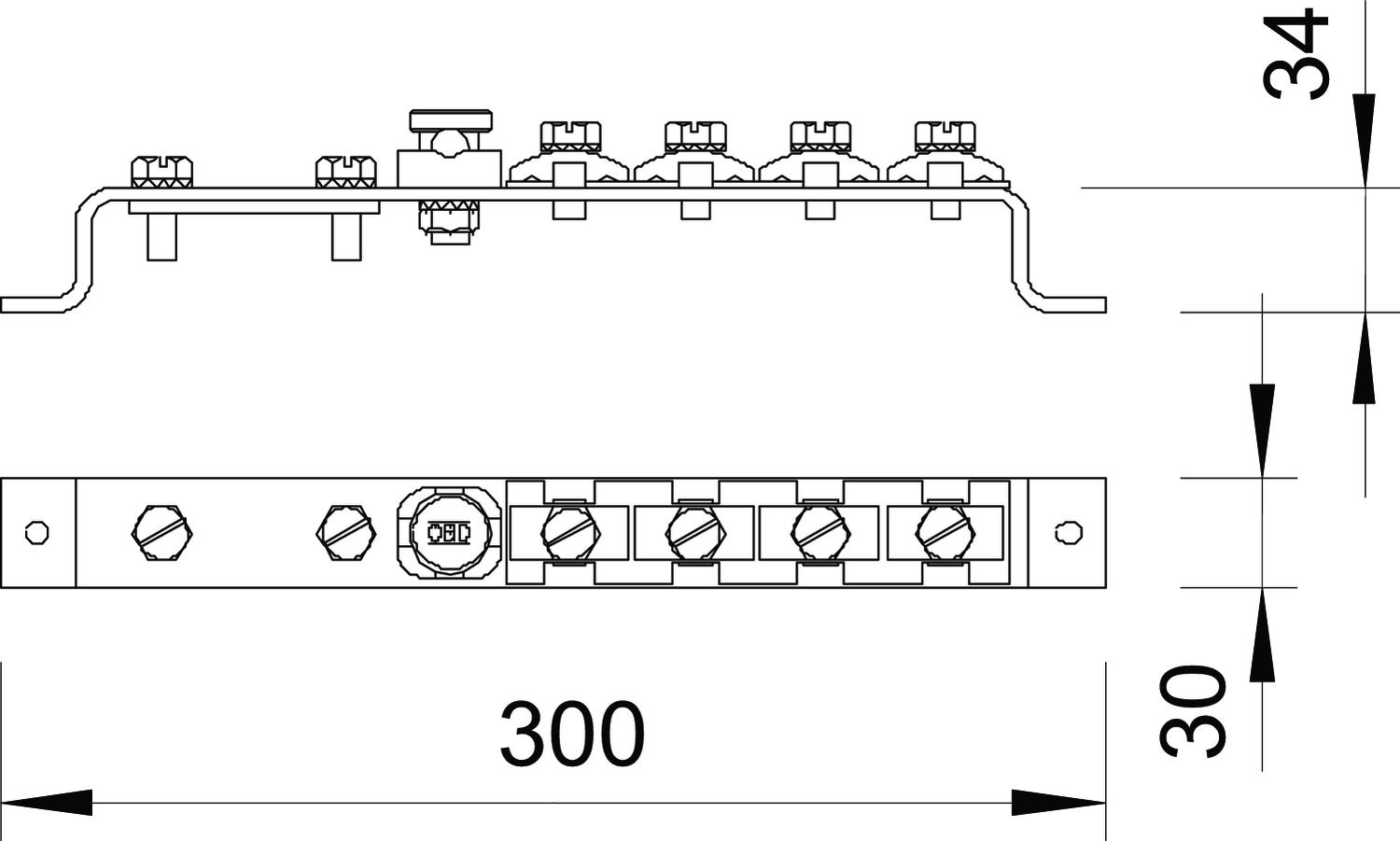

Dimension 300mm Height 34 mm Insulator no Length 300 mm Material Brass Material of the contact rail Brass Material of the terminal Brass Quantity of cable connections up to 25 mm², rigid 8 Quantity of flat conductor connections up to 40 mm 1 Quantity of round conductor connections 8-10 mm 1 Quantity of round conductor connections, total 1 Surface of the contact rail Nickel-plated Surface of the terminal Nickel-plated Type Fixed structure Version for Without cover hood Width 30 mm - All types
- Downloads
-
Data sheet 1808 / 5015014 , 0.16MB , pdfEU declaration of conformity 1808 / 5015014 , 0.10MB , pdfREACH Declaration of conformity 1808 / 5015014 , 0.12MB , pdfRoHS Declaration of conformity 1808 / 5015014 , 0.12MB , pdf
