- Product description
-
Product descriptionThe OBO Green equipotential busbar is a solution manufactured from cellulose acetate CA for the installation of the equipotential bonding according to DIN VDE 0100-410/-540 and lightning protection equipotential bonding according to DIN VDE 0185-305. The basic material is widely used in the paper industry.
• Base plate and cover hood made of CA, white
• Sealable and labellable cover
• Contact strip made of brass
• Bolts and crossbar made of electrogalvanised steel
• Capable of carrying lightning current 100 kA (10/350)
Connection options:
• 7x single or multi-wire cables to 25 mm² or fine-wire cables to 16 mm²
• 1x round conductor Rd 8–10
• 1x flat strip to FL 30 or round conductor Rd 8–10
with lead-sealable cover hood from renewable resources
- Technical data
-
Technical data

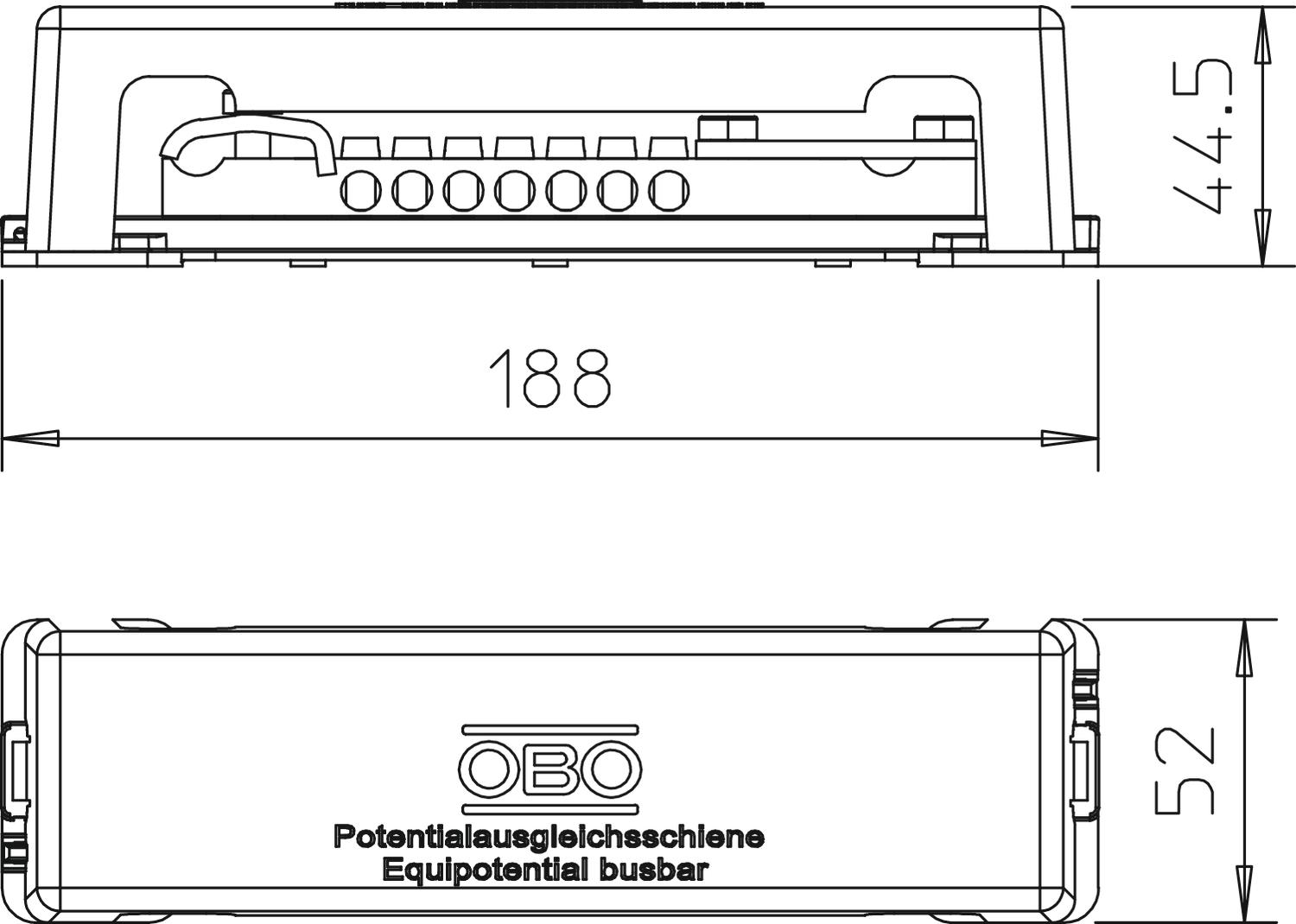

Colour White Dimension 188mm Height 44,5 mm Insulator yes Length 188 mm Lightning current carrying capacity H/100 kA Material Brass Material of the contact rail Brass Material of the terminal Steel Quantity of cable connections up to 25 mm², rigid 7 Quantity of flat conductor connections up to 30 mm 1 Quantity of round conductor connections 8-10 mm 1 Quantity of round conductor connections, total 1 Surface of the contact rail Nickel-plated Surface of the terminal Electrogalvanised Type Fixed structure Version for With cover hood Width 52 mm - All types
- Downloads
-
Data sheet 1809 NR / 5015075 , 0.20MB , pdfEU declaration of conformity 1809 NR / 5015075 , 0.10MB , pdfREACH Declaration of conformity 1809 NR / 5015075 , 0.12MB , pdfRoHS Declaration of conformity 1809 NR / 5015075 , 0.12MB , pdf
