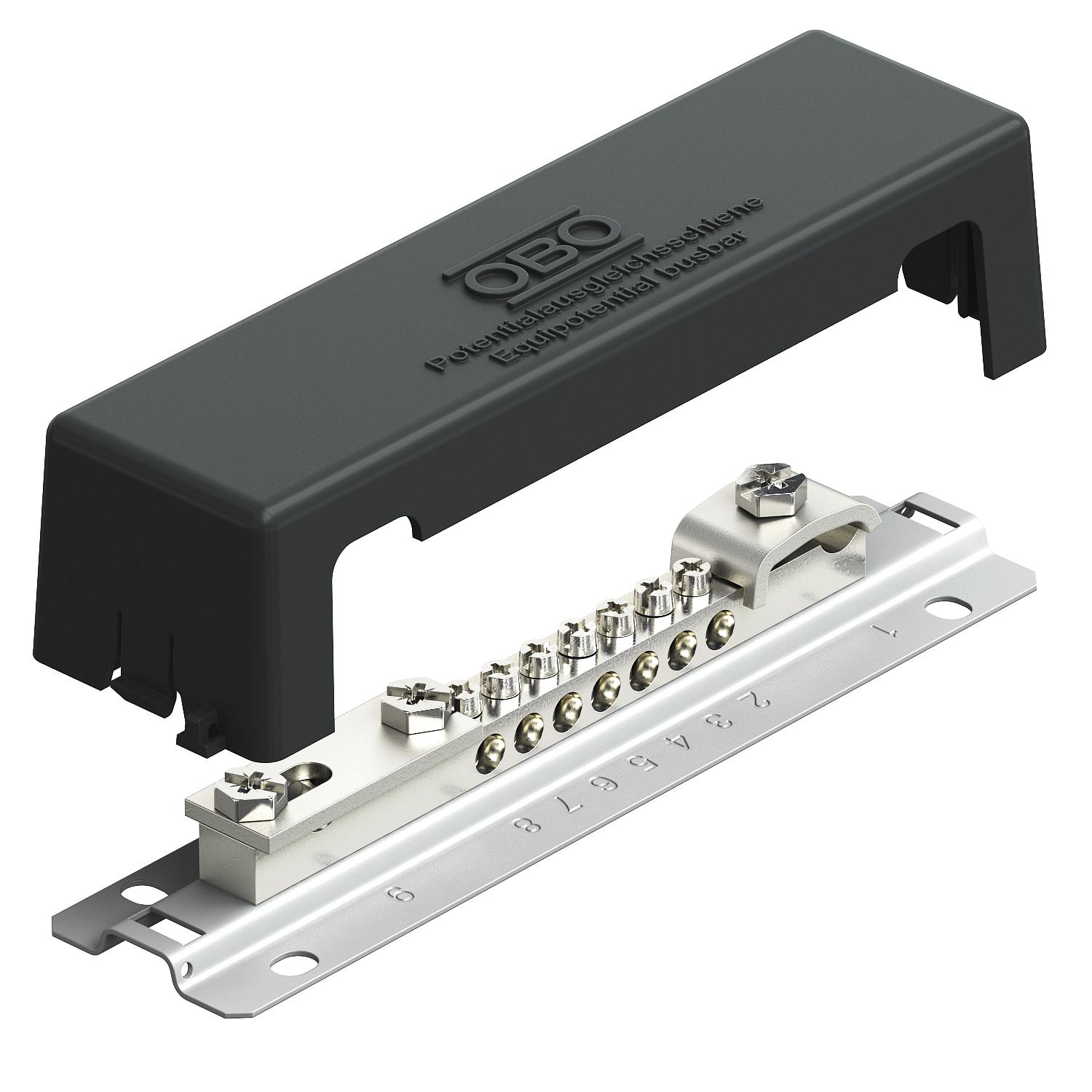

Equipotential busbar for outside installation, metal base plate
Item no. 5015105 | EAN 4012196587292
- Product description
-
Product description
Equipotential busbar for equipotential bonding according to DIN VDE 0100-410/-540 and lightning protection equipotential bonding according to DIN VDE 0185-305
• Cover hood made of polystyrene
• Base plate made of steel, zinc-iron surface
• Colour: Black, UV-resistant
• Screws and crossbar made of VA
• Capable of carrying lightning current 100 kA (10/350)
Connection options:
• 7 single or multi-wire cables to 25 mm² or fine-wire cables to 16 mm²
• 1 round conductor Rd 8–10
• 1 flat strip to FL30 or round conductor Rd 8–10
-
- Technical data
-
Technical data
Colour Black Dimension 188mm Lightning current carrying capacity H/100 kA Material Stainless steel Material of the contact rail Brass Material of the terminal Steel Quantity of cable connections up to 25 mm², rigid 7 Quantity of flat conductor connections up to 30 mm 1 Quantity of round conductor connections 8-10 mm 1 Quantity of round conductor connections, total 1 Surface of the contact rail Nickel-plated Surface of the terminal Electrogalvanised Type Fixed structure Version for With cover hood Dimensions

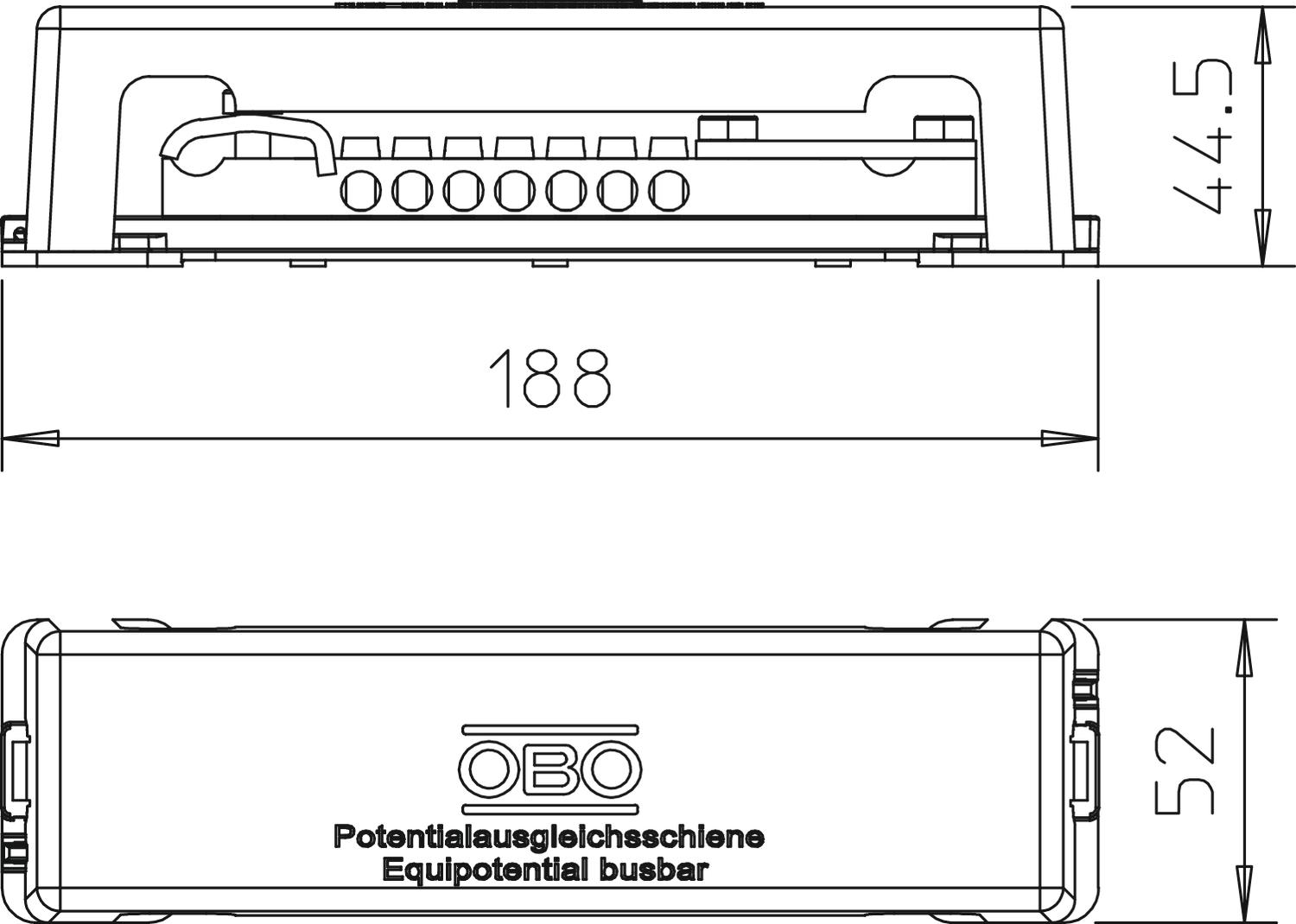

Height 44,5 mm Length 188 mm Width 52 mm - All types
