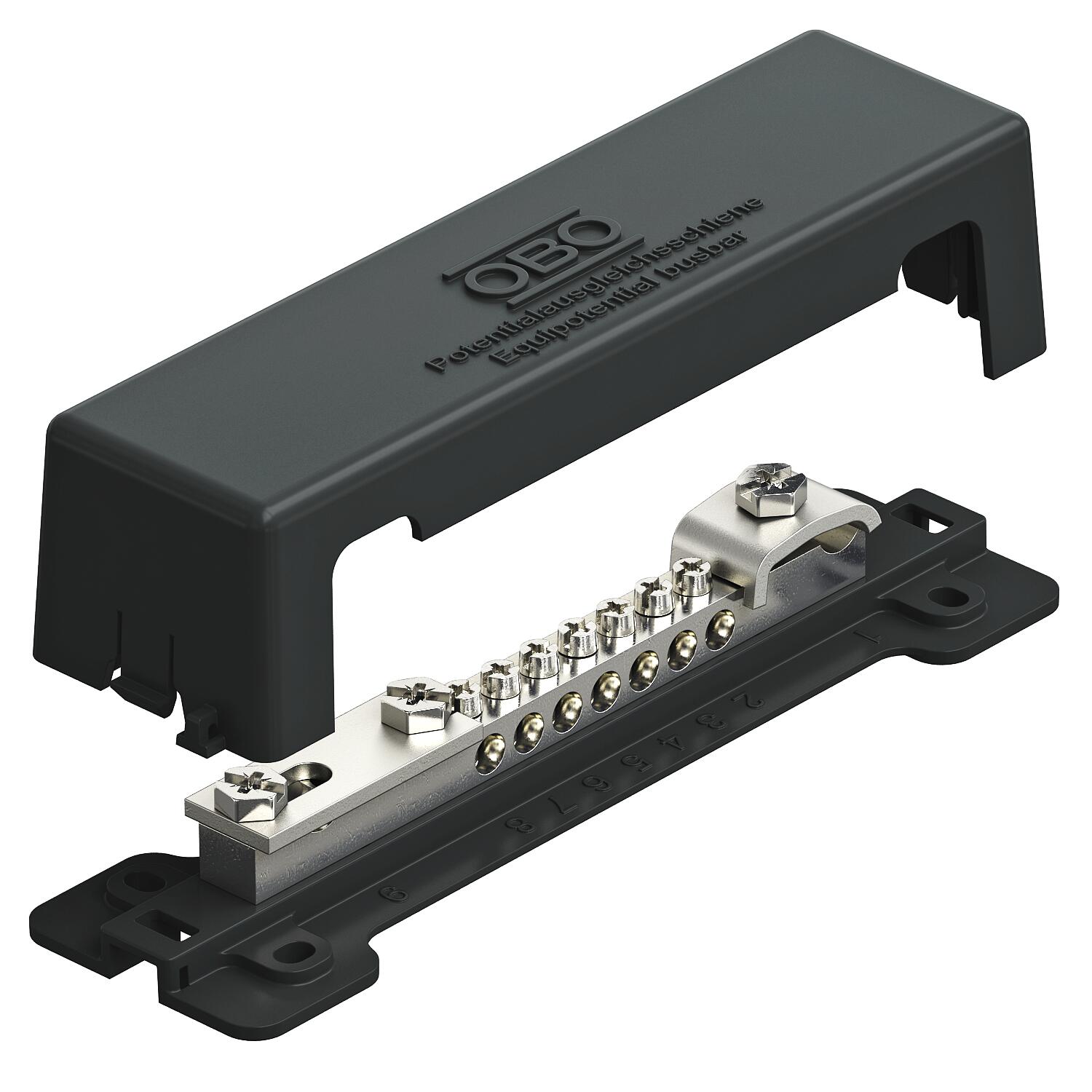

Equipotential busbar for outside installation
Item no. 5015111 | EAN 4012195959427
- Product description
-
Product description
Equipotential busbar for equipotential bonding according to DIN VDE 0100-410/-540 and lightning protection equipotential bonding according to DIN VDE 0185-305
• Cover hood and base plate made of polystyrene
• Colour: Black, UV-resistant
• Screws and crossbar made of VA
• Capable of carrying lightning current 50 kA (10/350)
Connection options:
• 7 x single or multi-core cables to 25 mm² or fine-core cables to 16 mm²
• 1 x round conductor Rd 8-10
• 1 x flat strip to FL30 or round conductor Rd 8-10
-
- Technical data
-
Technical data
Colour Black Dimension 50x5mm Insulator yes Lightning current carrying capacity N/50 kA Material Stainless steel Material of the contact rail Brass Material of the terminal Steel Quantity of cable connections up to 25 mm², rigid 7 Quantity of flat conductor connections up to 30 mm 1 Quantity of round conductor connections 8-10 mm 1 Quantity of round conductor connections, total 1 Surface of the contact rail Nickel-plated Surface of the terminal Electrogalvanised Type Fixed structure Version for With cover hood Dimensions
Height 44,5 mm Length 188 mm Width 52 mm - All types
