Equipotential busbar for indoors, VDE-tested 217 | 63 | 67.5 | | Grey

Equipotential busbar for indoors, VDE-tested

Item no. 5015650 | EAN 4012195378556

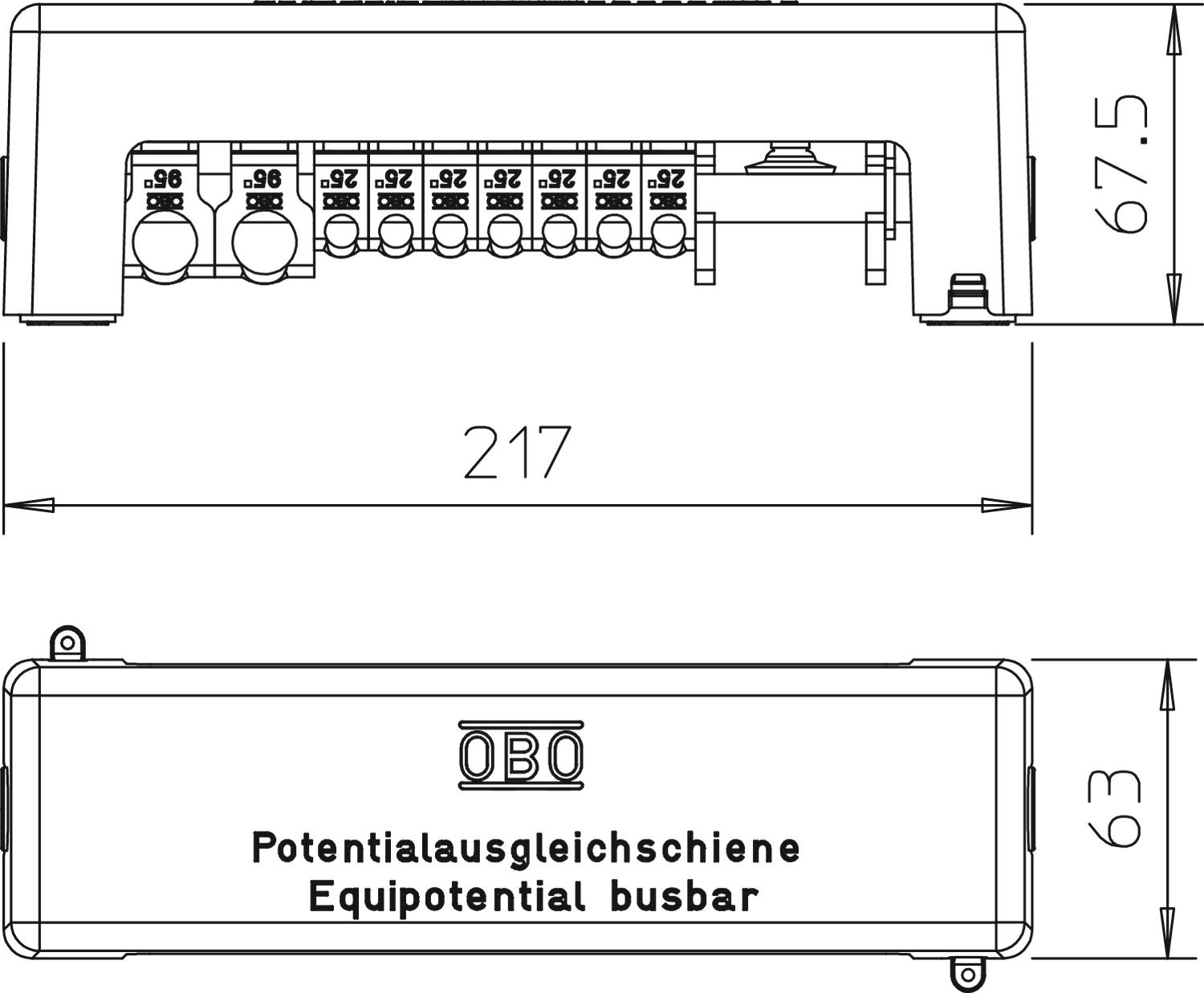

Item no. / Types	5015650 / 1801 VDE

Length	217 mm

Width	63 mm

Height	67.5 mm

Colour	Grey

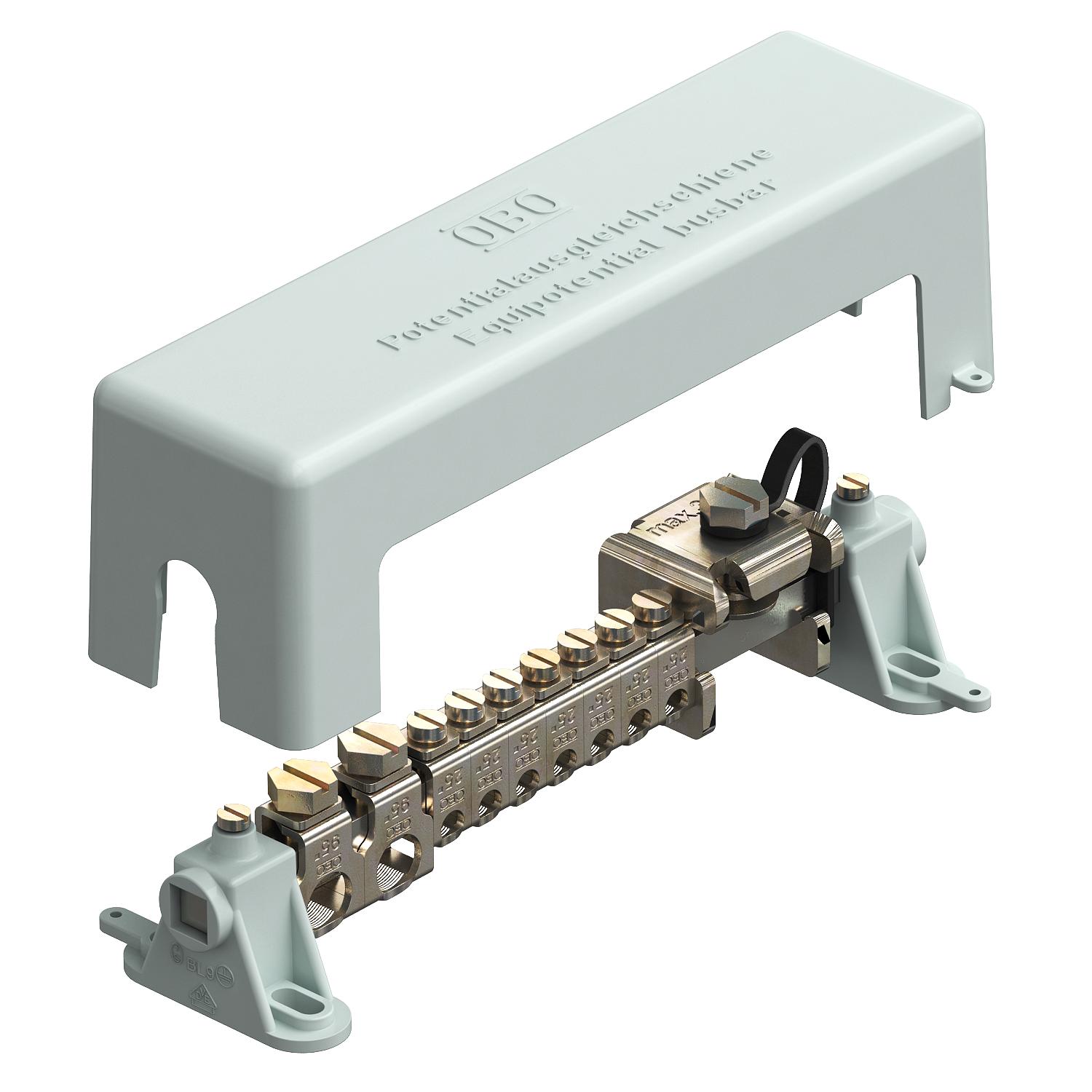

Product description

Product description

Equipotential busbar for equipotential bonding to DIN VDE 0100-410/-540 as well as lightning protection equipotential bonding to DIN VDE 0185-305

• According to VDE 0618, Part 1
• With 10 x 10 mm clamping rail made of nickel-plated brass
• With contact-secure series terminals made of electrogalvanised steel
• Cover and rail stands made of grey polystyrene
• Sealable/labellable cover
• Lightning current carrying capacity 100 kA (10/350)
• Tension clamp with screw lock against self-loosening (e.g. required in industry)

Connection options:
• 7 single or multi-wire cables 2.5–25 mm² or fine-wire cables to 16 mm² (max. Ø 7 mm)
• 2 single or multi-wire cable 25–95 mm² or fine-wire cables to 70 mm² (max. Ø 13.5 mm)
• 1 flat conductor 30 x 3.5 mm

With sealable cover hood,
made from impact-resistant plastic

Technical data

Technical data

Colour	Grey
CO₂ Footprint (GWP) Cradle-to-Gate	1,668 kg CO₂e / 1 Piece
Dimension	217mm
Height	67,5 mm
Insulator	yes
Length	217 mm
Material	Brass
Material of the contact rail	Brass
Material of the terminal	Steel

Quantity of cable connections up to 25 mm², rigid	7
Quantity of cable connections up to 95 mm², rigid	2
Quantity of flat conductor connections up to 30 mm	1
Surface of the contact rail	Nickel-plated
Surface of the terminal	Electrogalvanised
Type	Modular structure
Version for	With cover hood
Width	63 mm

All types

All types

Types	Length	Width	Height	Colour	Item no.	Quantity	SSU
1801 VDE	217 mm	63 mm	67.5 mm	Grey	5015650	piece	1 piece

Accessories

System accessories

Products	Types	Item no.	Quantity	SSU
Cover hood for 1801 VDE	1801 AH	5015707	piece	1 piece
Rail stands for 1801 VDE	1801 SCH	5015715	piece	10 piece

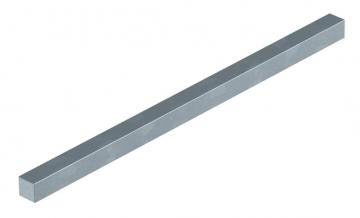

Contact strip for 1801 VDE	1801 KL1	5015723	piece	1 piece
Flat conductor terminal to FL 30 for 1801 VDE	1801 RK30	5015731	piece	1 piece
Round cable terminal to 25 mm² for 1801 VDE	1801 RK25	5015758	piece	10 piece
Round cable terminal from 25 mm² for 1801 VDE	1801 RK95	5015766	piece	10 piece
Flat conductor terminal from FL 30 for 1801 VDE	1801 RK40	5015774	piece	1 piece
