Equipotential busbar for EX zone 1/21, 2/22
Item no. 5015270 | EAN 4012196427680
- Product description
-
Product description
For ignition spark-free protection/functional equipotential bonding to DIN VDE 0100-410/-540 as well as ignition spark-free lightning protection equipotential bonding to VDE 0185-305 (IEC 62305) in systems to VDE 0165-1 (IEC/ EN 60079-14)
• Use in potentially explosive areas, Ex zone 1 and 2/21 and 22
• Tested according to explosion group IIC
• Lightning current carrying capacity class H (100 kA) to VDE 0185-561-1 (IEC/EN 62561-1)
• UV-resistant and halogen-free insulation feet
• With spring washer for locking screws against self-loosening to VDE 0185-305-3 Supplementary sheet 2
• Suitable for indoor and outdoor applications
-
- Technical data
-
Technical data
Dimension 10xM10 Insulator yes Lightning current carrying capacity H/100 kA Material Stainless steel Material of the contact rail Rustproof steel (V2A) Material of the terminal Rustproof steel (V2A) Number of connections 10 Quantity of flat conductor connections up to 40 mm 1 Quantity of round conductor connections, total 10 Type Fixed structure Version for Only terminal Dimensions

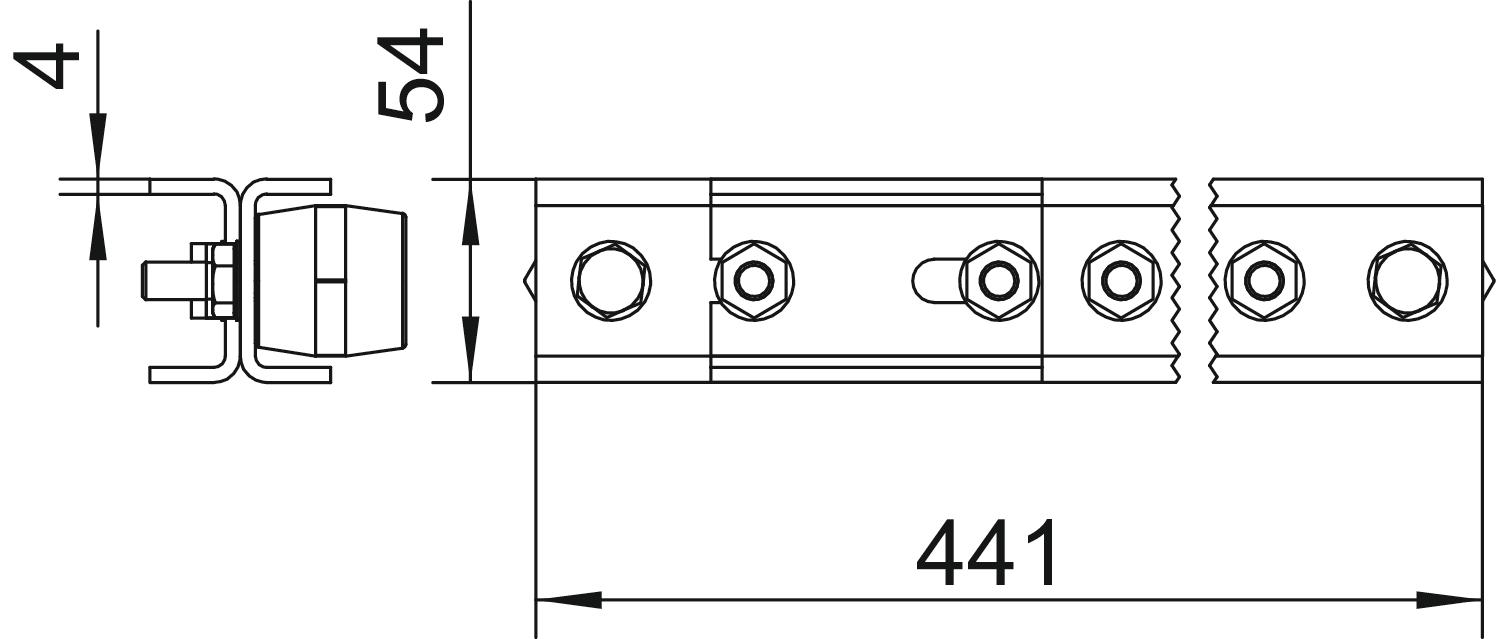

Height 4 mm Length 441 mm Width 54 mm - All types
