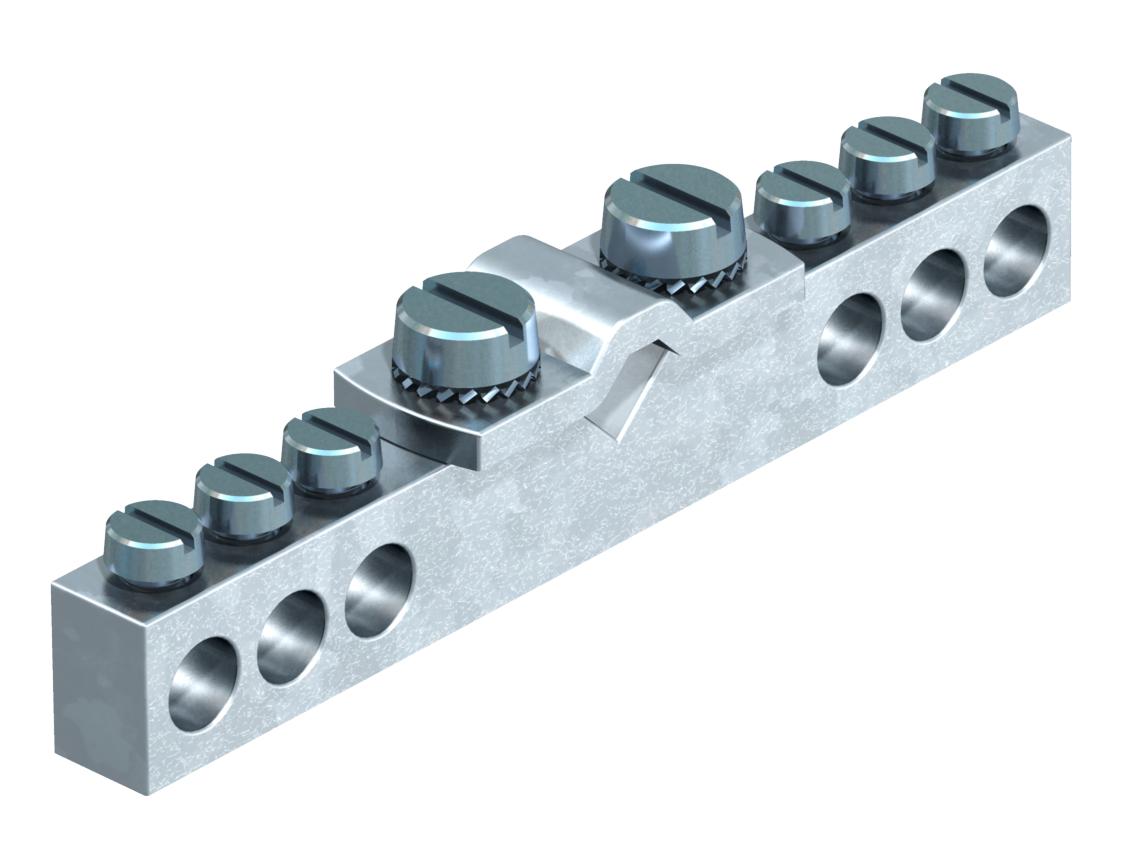

Equipotential busbar for bathrooms

Item no. 5015553 | EAN 4012195378495

5015553 / 1804

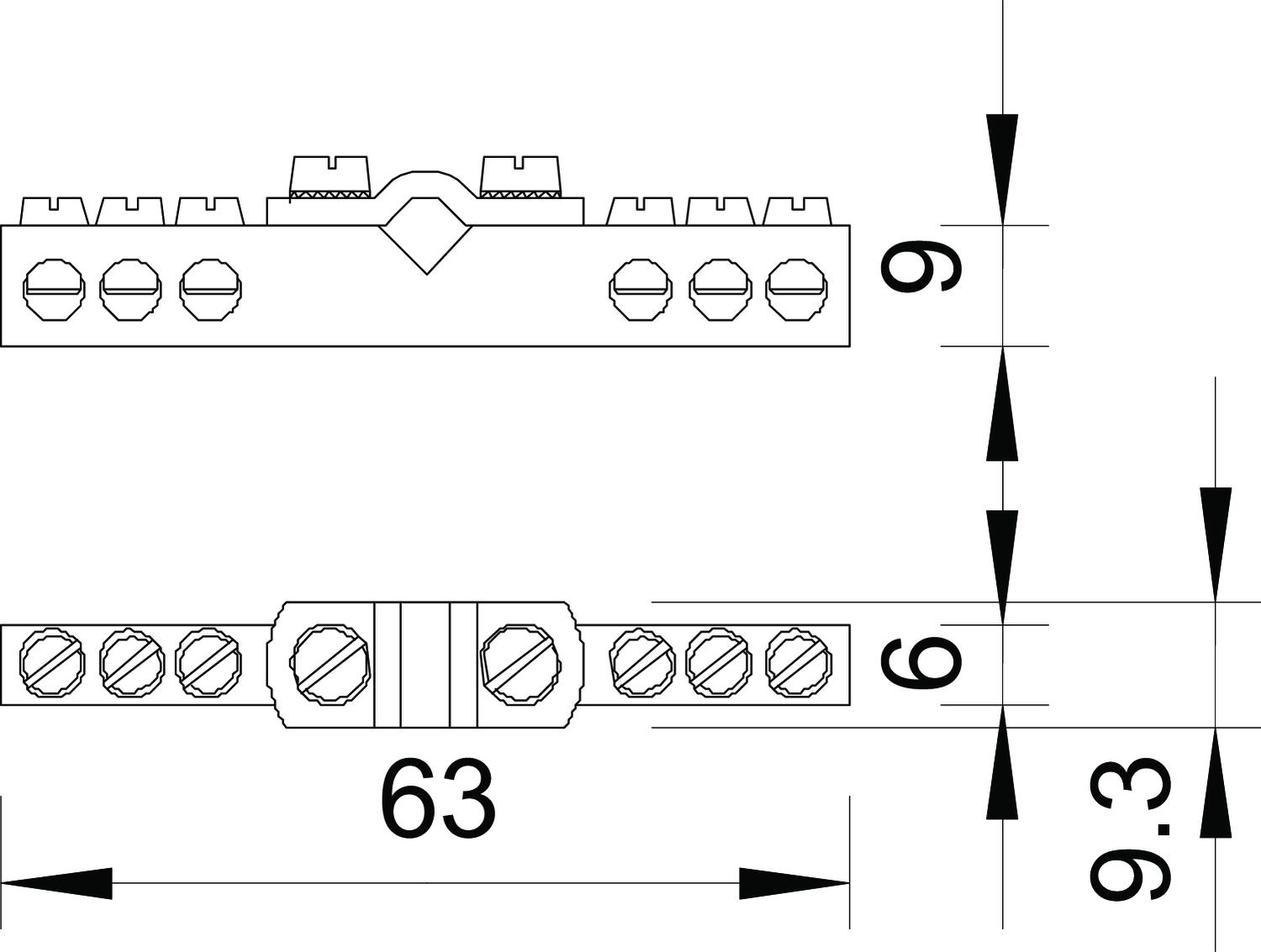

63 mm
9.3 mm
9 mm
Product description

Product description

• Nickel-plated brass contact strip
• Screws and clamp made of electrogalvanised steel

Connection options:
• 6 cables 1.5-10 mm²
• 1 cable 6-16 mm²
Technical data

Technical data

Dimension 409
Height 9 mm
Insulator no
Length 63 mm
Material Brass
Material of the contact rail Brass
Material of the terminal Steel
Quantity of cable connections up to 16 mm², rigid 1
Quantity of cable connections up to 6 mm², rigid 6
Quantity of round conductor connections, total 7
Surface of the contact rail Nickel-plated
Surface of the terminal Electrogalvanised
Type Fixed structure
Version for Without cover hood
Width 9,3 mm
All types

All types

Types Length Width Height Item no. Quantity SSU
1804 63 mm 9.3 mm 9 mm 5015553
5 piece
Downloads

Download

Download

Declaration of conformity 1804 / 5015553 , 0.10MB , pdf
Download
REACH Declaration of conformity 1804 / 5015553 , 0.12MB , pdf
RoHS Declaration of conformity 1804 / 5015553 , 0.12MB , pdf

No invitation to tender text is available for this product.
