Equipotential busbar 1809 for concealed mounting 250 | 220 | 67 | |

Equipotential busbar 1809 for concealed mounting

Item no. 5015065 | EAN 4012195378198

Item no. / Types	5015065 / 1809 UP

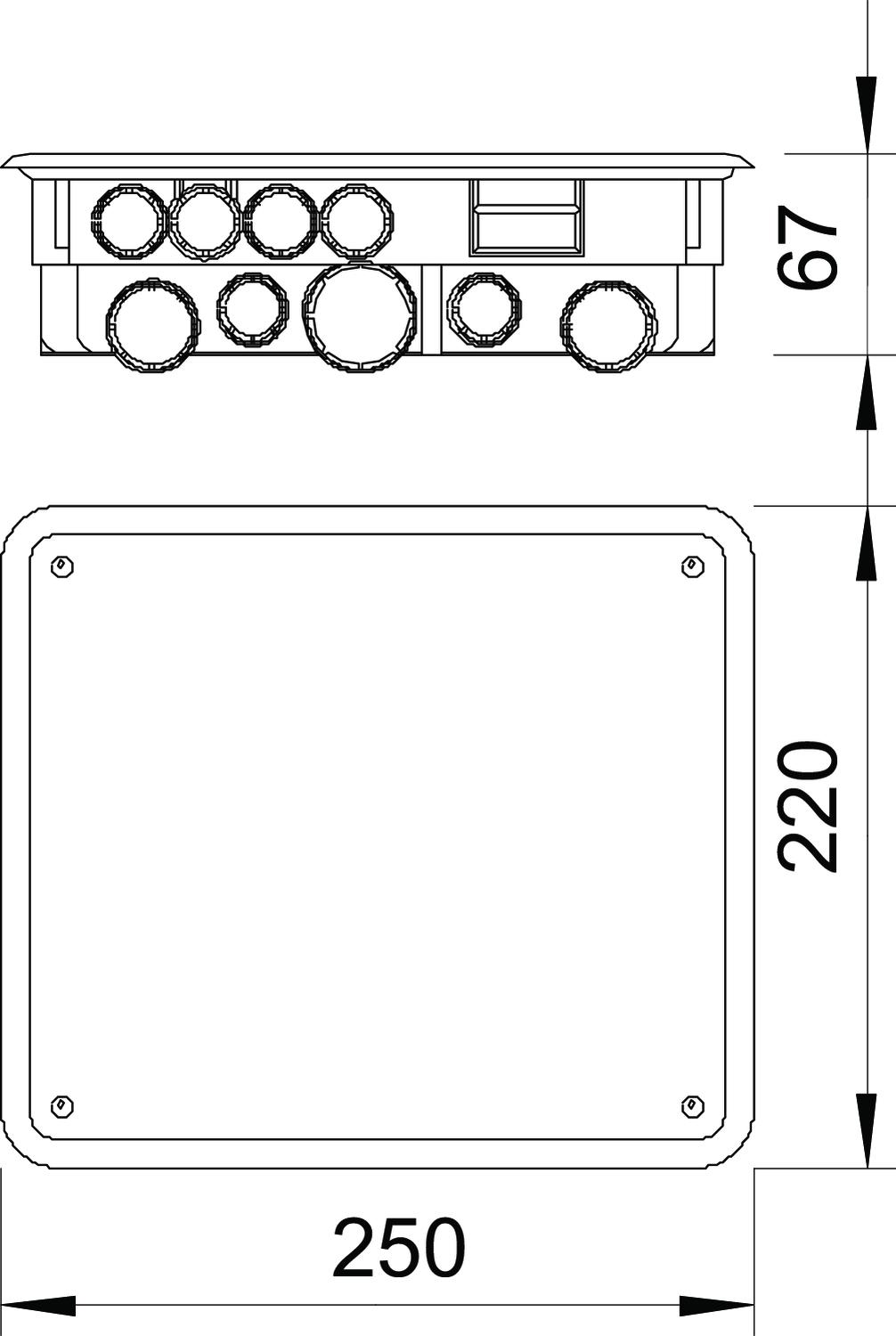

Length	250 mm

Width	220 mm

Height	67 mm

Product description

Product description

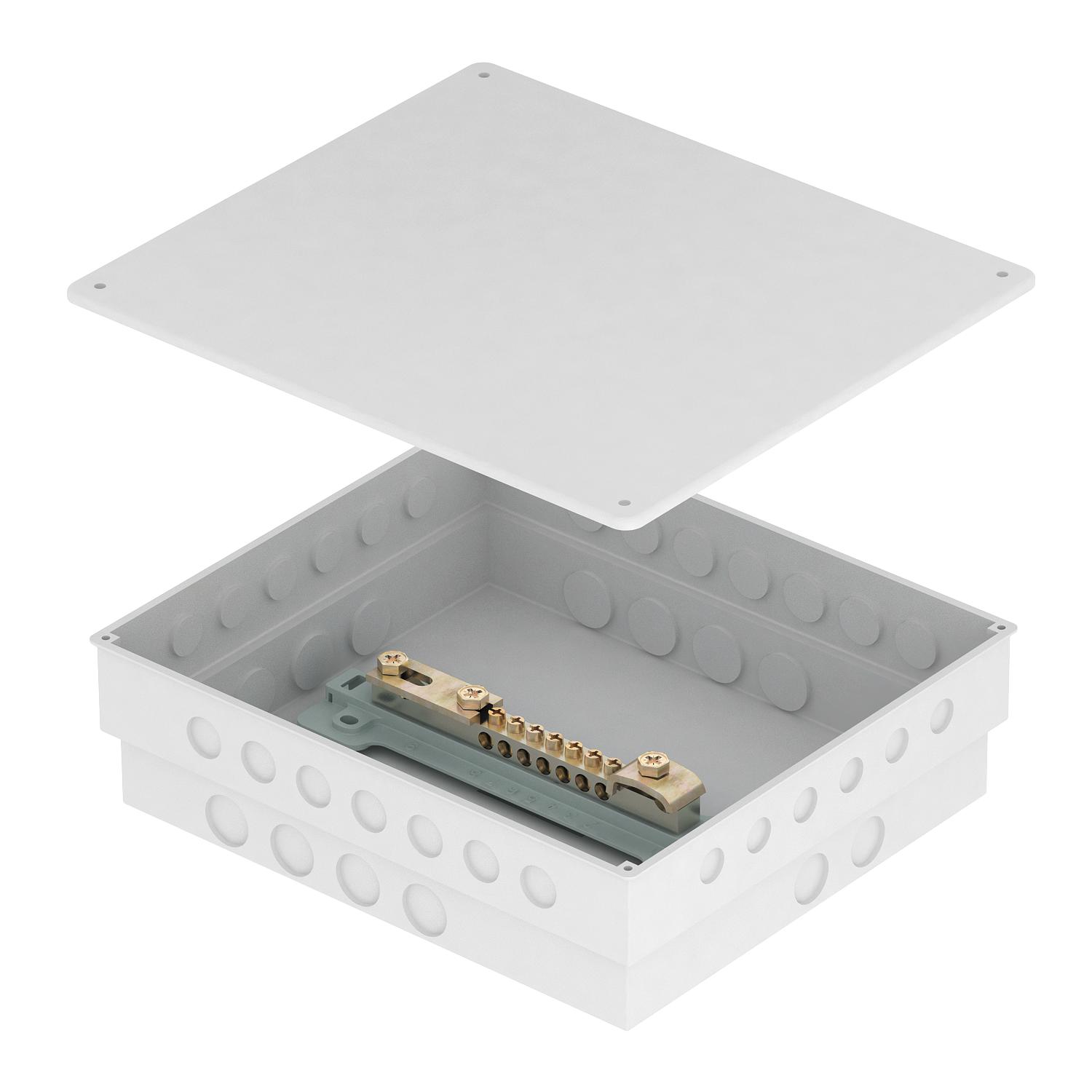

• Mounted equipotential busbar 1809 (without cover hood) in concealed housing

• Pre-marked concealed housing for inserting required cables and cover

• Contact strip made of nickel-plated brass

• Bolts and crossbar made of electrogalvanised steel

• Capable of carrying lightning current 100 kA (10/350)

Connection options:

• 7x cables up to 25 mm²

• 1 round conductor Rd 8–10

• 1 flat conductor up to FL 30 or round conductor Rd 8–10

Technical data

Technical data

Dimension	50x5mm
Insulator	yes
Material	Brass
Material of the contact rail	Brass
Material of the terminal	Steel
Quantity of cable connections up to 25 mm², rigid	7
Quantity of flat conductor connections up to 30 mm	1

Quantity of round conductor connections 8-10 mm	1
Quantity of round conductor connections, total	1
Surface of the contact rail	Nickel-plated
Surface of the terminal	Electrogalvanised
Type	Fixed structure
Version for	In the housing
