Equipotential busbar 1804 for surface mounting 90.5 | 90.5 | 39.3 | | Light grey; RAL 7035

Equipotential busbar 1804 for surface mounting

Item no. 5015557 | EAN 4012195477839

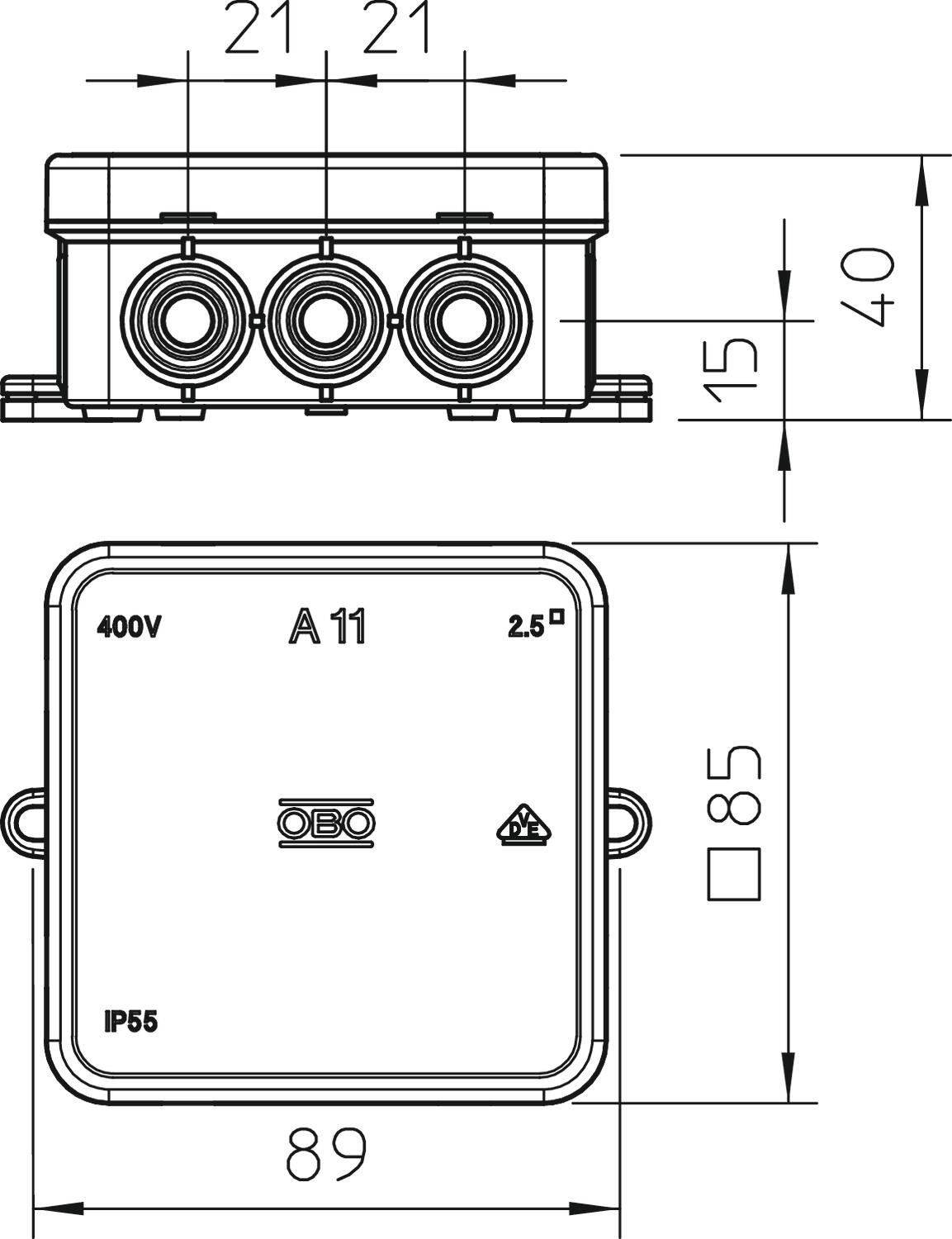

Item no. / Types	5015557 / 1804 AP

Length	90.5 mm

Width	90.5 mm

Height	39.3 mm

Colour	Light grey; RAL 7035

Product description

Product description

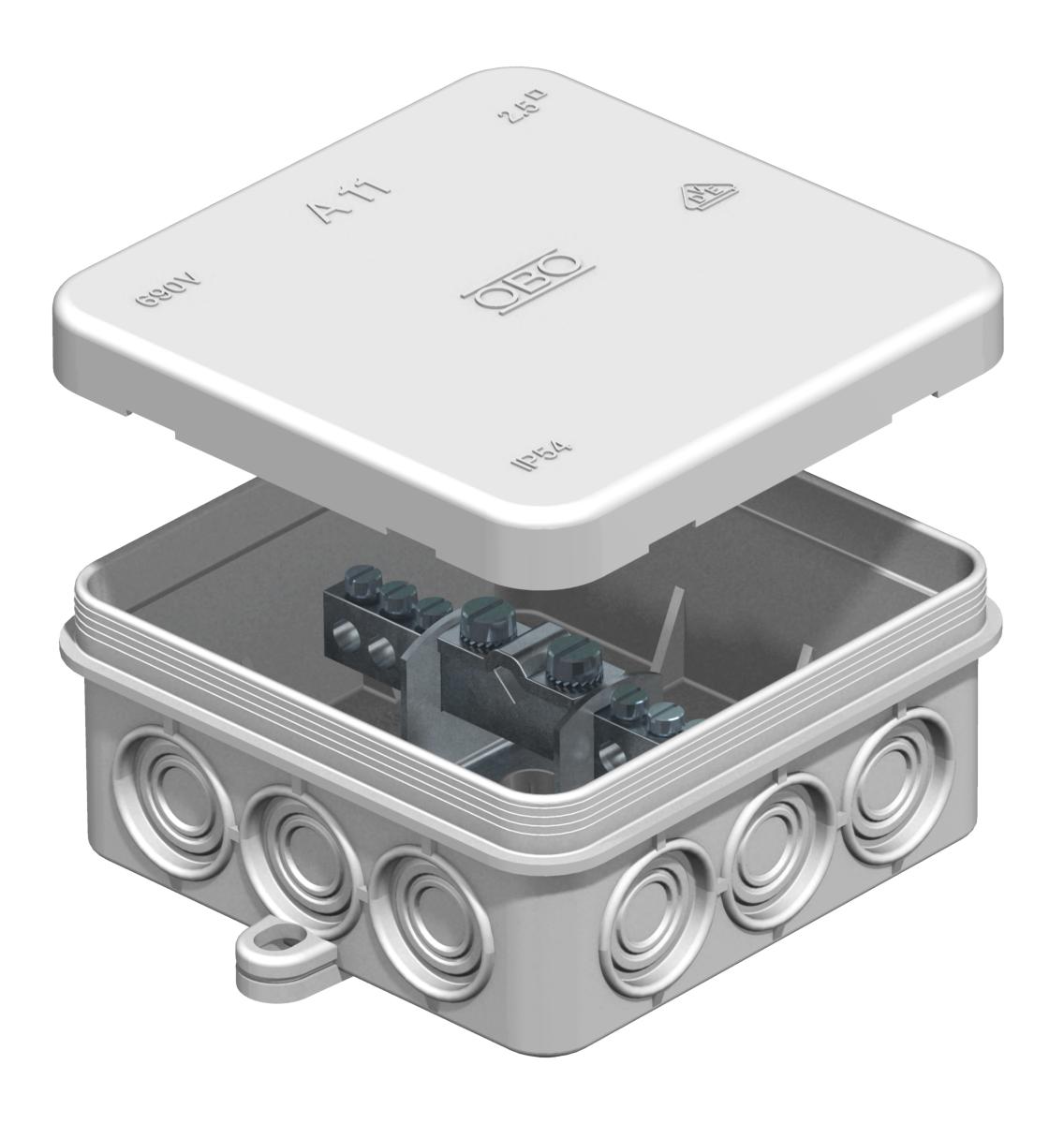

• Mounted equipotential busbar 1804 in junction box

• Pre-marked junction box for inserting required cables and covers

• Contact strip made of nickel-plated brass

• Screws and clamp strap from hot-dip galvanised steel

Connection options:

• 6x cables 1.5–10 mm²

• 1x cable 6–16 mm²

Technical data

Technical data

Colour	Light grey; RAL 7035
Dimension	90,5x90,5x39
Insulator	yes
Material	Polyethylene
Material of the contact rail	Brass
Material of the terminal	Steel
Quantity of cable connections up to 16 mm², rigid	1

Quantity of cable connections up to 6 mm², rigid	6
Quantity of round conductor connections, total	7
Surface of the contact rail	Nickel-plated
Surface of the terminal	Electrogalvanised
Type	Fixed structure
Version for	In the housing
