Equipotential busbar 1804 for concealed mounting
Item no. 5015545 | EAN 4012195378433
- Product description
-
Product description

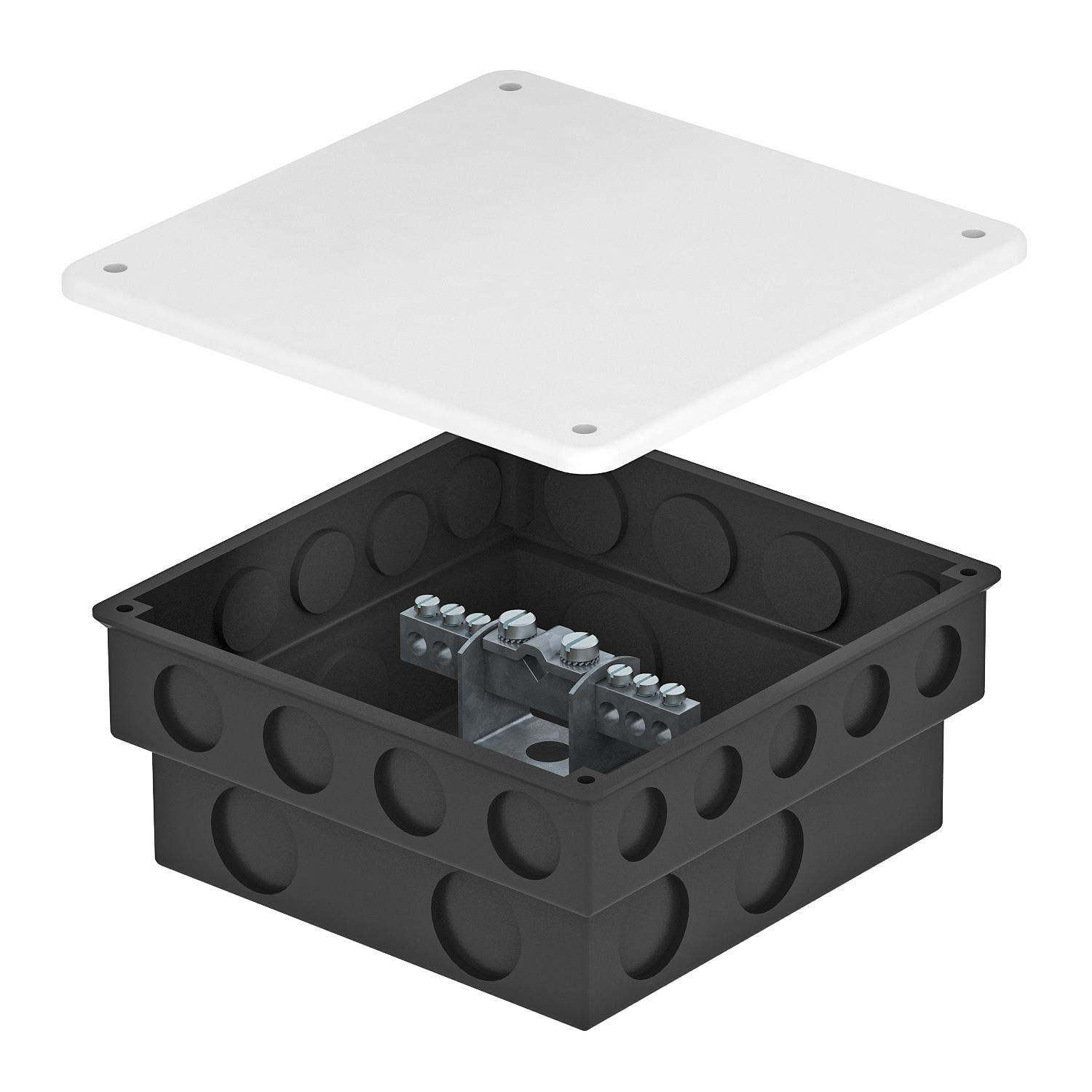

• Mounted equipotential busbar 1804 in concealed housing
• Pre-marked concealed housing for inserting required cables and covers
• Contact strip made of nickel-plated brass
• Bolts and crossbar made of electrogalvanised steel
Connection options:
• 6x cables 1.5–10 mm²
• 1x cable 6–16 mm²
- Technical data
-
Technical data
Dimension 50x5mm Insulator yes Material Brass Material of the contact rail Brass Material of the terminal Steel Quantity of cable connections up to 16 mm², rigid 7 Quantity of flat conductor connections up to 30 mm 1 Quantity of round conductor connections 8-10 mm 1 Quantity of round conductor connections, total 7 Surface of the contact rail Nickel-plated Surface of the terminal Electrogalvanised Type Fixed structure Version for In the housing Dimensions

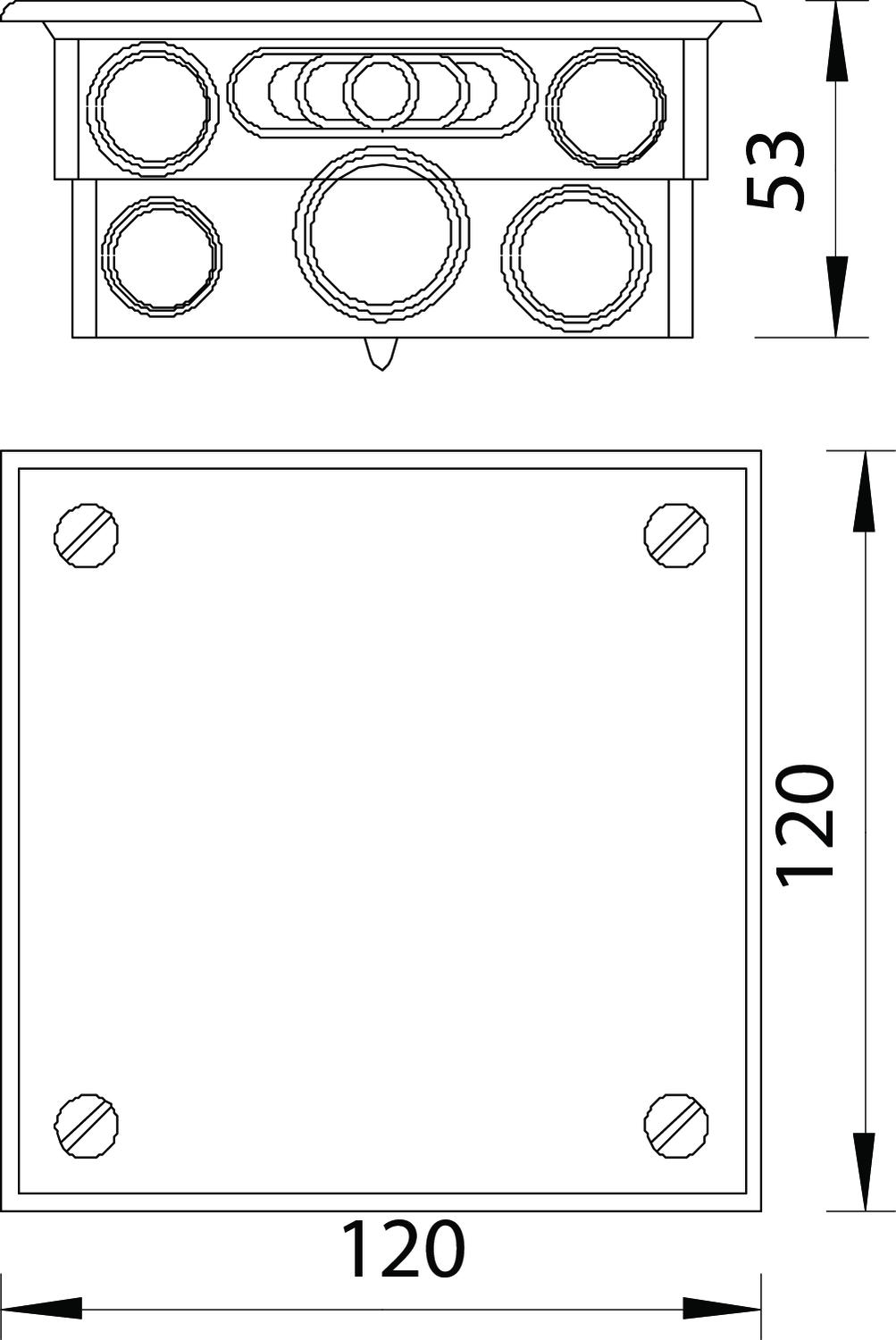

Height 53 mm Length 120 mm Width 120 mm - All types
- Downloads
-
Data sheet 1804 UP / 5015545 , 0.24MB , pdfDeclaration of conformity 1804 UP / 5015545 , 0.10MB , pdfREACH Declaration of conformity 1804 UP / 5015545 , 0.12MB , pdfRoHS Declaration of conformity 1804 UP / 5015545 , 0.12MB , pdf
